Datasheet ADN2890 (Analog Devices) - 5

HerstellerAnalog Devices
Beschreibung3.3 V 2.7 Gb/s Limiting Amplifier
Seiten / Seite12 / 5 — Data Sheet. ADN2890. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table …
RevisionB
Dateiformat / GrößePDF / 350 Kb
DokumentenspracheEnglisch

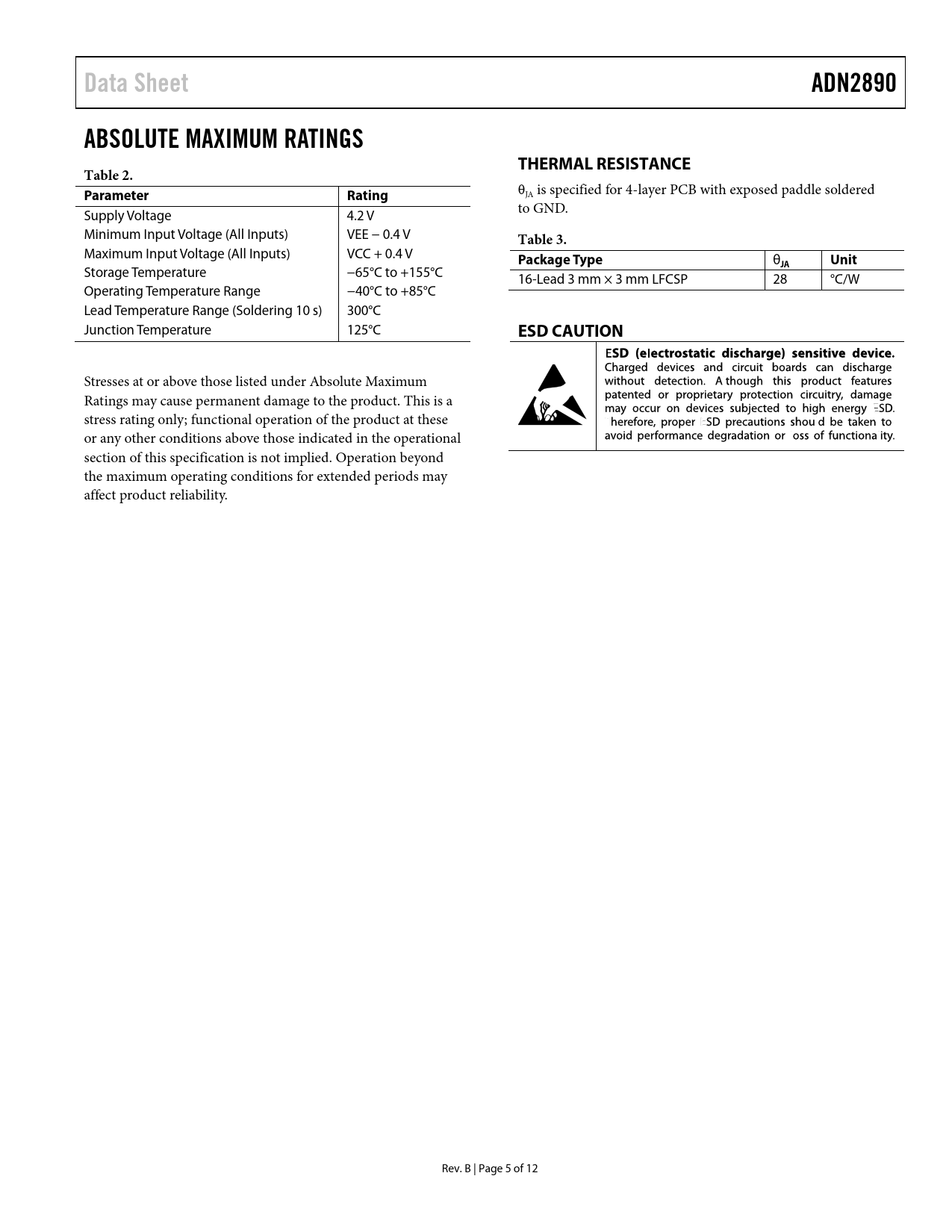

Data Sheet. ADN2890. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Package Type. Unit. ESD CAUTION

Data Sheet ADN2890 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2 Parameter Rating Table 3 Package Type Unit ESD CAUTION

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Data Sheet ADN2890 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
θJA is specified for 4-layer PCB with exposed paddle soldered Supply Voltage 4.2 V to GND. Minimum Input Voltage (All Inputs) VEE − 0.4 V
Table 3.
Maximum Input Voltage (All Inputs) VCC + 0.4 V
Package Type
θ
Unit
Storage Temperature −65°C to +155°C
JA
16-Lead 3 mm × 3 mm LFCSP 28 °C/W Operating Temperature Range −40°C to +85°C Lead Temperature Range (Soldering 10 s) 300°C Junction Temperature 125°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 5 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION LIMAMP Input Buffer CML Output Buffer LOSS OF SIGNAL (LOS) DETECTOR RECEIVED SIGNAL STRENGTH INDICATOR (RSSI) SQUELCH MODE APPLICATIONS INFORMATION PCB DESIGN GUIDELINES Power Supply Connections and Ground Planes PCB Layout Soldering Guidelines for Chip Scale Package OUTLINE DIMENSIONS ORDERING GUIDE NOTES
