Datasheet HVLED007 (STMicroelectronics) - 5

HerstellerSTMicroelectronics
BeschreibungTransition mode PFC controller for flyback converters
Seiten / Seite33 / 5 — HVLED007. Pin connections. Table 4. Pin functions (continued). Name. …
Dateiformat / GrößePDF / 1.6 Mb
DokumentenspracheEnglisch

HVLED007. Pin connections. Table 4. Pin functions (continued). Name. Function

HVLED007 Pin connections Table 4 Pin functions (continued) Name Function

Modelllinie für dieses Datenblatt

Textversion des Dokuments

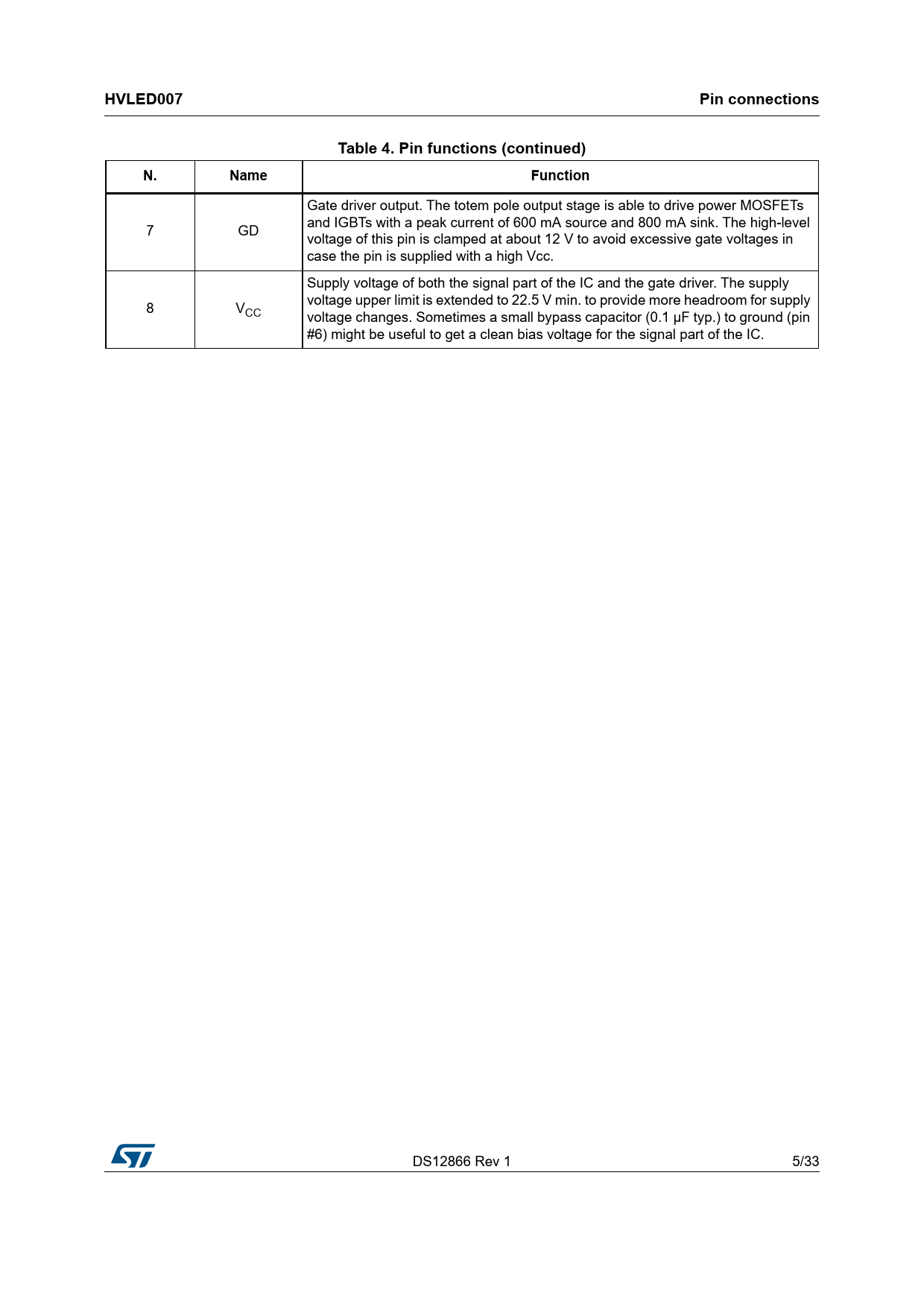

HVLED007 Pin connections Table 4. Pin functions (continued) N. Name Function
Gate driver output. The totem pole output stage is able to drive power MOSFETs and IGBTs with a peak current of 600 mA source and 800 mA sink. The high-level 7 GD voltage of this pin is clamped at about 12 V to avoid excessive gate voltages in case the pin is supplied with a high Vcc. Supply voltage of both the signal part of the IC and the gate driver. The supply voltage upper limit is extended to 22.5 V min. to provide more headroom for supply 8 VCC voltage changes. Sometimes a small bypass capacitor (0.1 μF typ.) to ground (pin #6) might be useful to get a clean bias voltage for the signal part of the IC. DS12866 Rev 1 5/33 33 Document Outline Table 1. Device summary 1 Block diagram Figure 1. Block diagram Table 2. Absolute maximum ratings 2 Pin connections Figure 2. Pin connection (top view) Table 3. Thermal data Table 4. Pin functions (continued) 3 Electrical characteristics Table 5. Electrical characteristics (continued) 4 Application information 4.1 Introduction Figure 3. Input current distortion in Hi-PF QR flyback converters with traditional TM control: current shape and resulting total harmonic distortion and power factor vs. Kv (= Vinpk/VR) ratio 4.2 Input current shaping function - operating principle Figure 4. Hi-PF QR flyback converter with the traditional TM control: current waveforms Figure 5. Input current shaper (ICS) block and its interconnection with HVLED007 control Figure 6. Key waveforms of the ICS circuit in figure 5 Figure 7. Shape of the current reference Vcsref(θ) (5) at different input voltages (i.e. Kv values) 4.3 Operation of a Hi-PF QR flyback converter based on the HVLED007 Table 6. Timing quantities in a HVLED007-based Hi-PF QR flyback converter Table 7. Control quantities in a HVLED007-based Hi-PF QR flyback converter Table 8. Electrical quantities in a HVLED007-based Hi-PF QR flyback converter 4.4 Shaping capacitor (Ct) selection (pin CT) 4.5 Control input for isolated feedback and optocoupler driving (pin COMP) Figure 8. Output characteristic of pin COMP and significant levels 4.6 Multiplier input for input voltage sensing (pin MULT) 4.7 Current sensing input (pin CS). Sense resistor (Rs) selection Figure 9. Effect of ripple on Ct on current sense signal: a) within linear dynamics, close to clamp level; b) signal slightly exceeding clamp level; c) signal exceeding clamp level, with OCP activation 4.8 Zero current detection and triggering block (pin ZCD); starter 4.9 Overload and short-circuit protection (OCP function) Figure 10. Functional schematic of the overload and short-circuit protection function 4.10 Overvoltage protection (OVP function) Figure 11. Functional schematic of the OVP function 4.11 Soft-restart function Figure 12. Functional schematic of the soft restart function 4.12 Suggested step-by-step design procedure of a Hi-PF QR flyback converter based on the HVLED0007 Table 9. Basic electrical specification and key parameters of a Hi-PF QR flyback Figure 13. Typical application schematic (reference for suggested design procedure) 5 Referenced documents 6 Package information Table 10. SO-8 mechanical data Figure 14. Package dimensions 7 Revision history Table 11. Document history
