Datasheet TLE5x09A16(D) (Infineon) - 3
| Hersteller | Infineon |
| Beschreibung | Angle sensors for ultra-precise angular position sensing, AMR-based |
| Seiten / Seite | 33 / 3 — TLE5x09A16(D) Analog AMR/GMR Angle Sensor. Table 1. TLE5009A16(D) … |
| Revision | 02_00 |
| Dateiformat / Größe | PDF / 1.3 Mb |
| Dokumentensprache | Englisch |
TLE5x09A16(D) Analog AMR/GMR Angle Sensor. Table 1. TLE5009A16(D) Derivate ordering codes. Product Type. Marking. Ordering Code
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 2 link to page 2

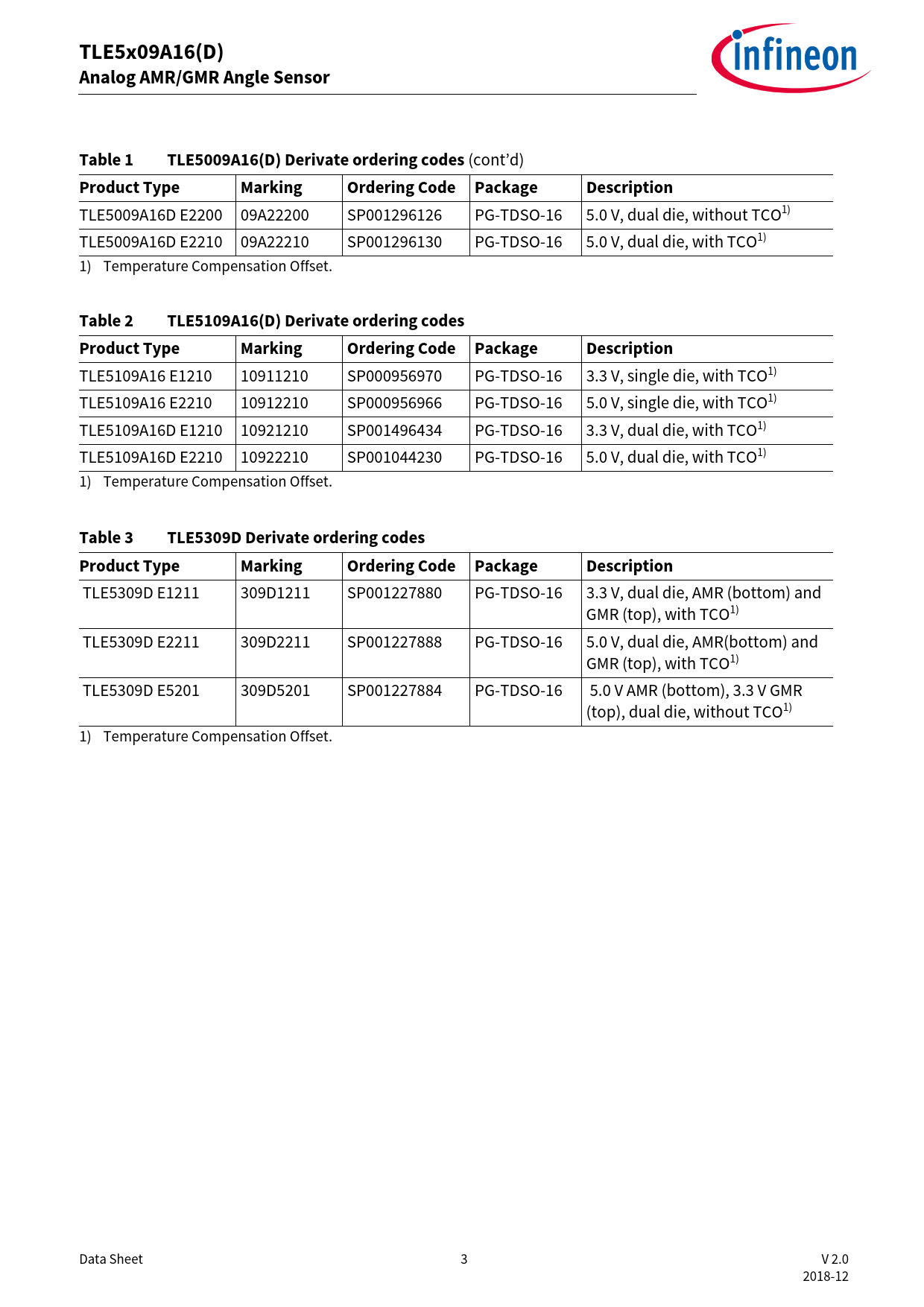

TLE5x09A16(D) Analog AMR/GMR Angle Sensor Table 1 TLE5009A16(D) Derivate ordering codes
(cont’d)
Product Type Marking Ordering Code Package Description
TLE5009A16D E2200 09A22200 SP001296126 PG-TDSO-16 5.0 V, dual die, without TCO1) TLE5009A16D E2210 09A22210 SP001296130 PG-TDSO-16 5.0 V, dual die, with TCO1) 1) Temperature Compensation Offset.
Table 2 TLE5109A16(D) Derivate ordering codes Product Type Marking Ordering Code Package Description
TLE5109A16 E1210 10911210 SP000956970 PG-TDSO-16 3.3 V, single die, with TCO1) TLE5109A16 E2210 10912210 SP000956966 PG-TDSO-16 5.0 V, single die, with TCO1) TLE5109A16D E1210 10921210 SP001496434 PG-TDSO-16 3.3 V, dual die, with TCO1) TLE5109A16D E2210 10922210 SP001044230 PG-TDSO-16 5.0 V, dual die, with TCO1) 1) Temperature Compensation Offset.
Table 3 TLE5309D Derivate ordering codes Product Type Marking Ordering Code Package Description
TLE5309D E1211 309D1211 SP001227880 PG-TDSO-16 3.3 V, dual die, AMR (bottom) and GMR (top), with TCO1) TLE5309D E2211 309D2211 SP001227888 PG-TDSO-16 5.0 V, dual die, AMR(bottom) and GMR (top), with TCO1) TLE5309D E5201 309D5201 SP001227884 PG-TDSO-16 5.0 V AMR (bottom), 3.3 V GMR (top), dual die, without TCO1) 1) Temperature Compensation Offset. Data Sheet 3 V 2.0 2018-12 Document Outline Features Functional Safety Product Validation Potential Applications Description Table of Contents 1 Functional description 1.1 General 1.2 Pin configuration 1.3 Pin description 1.4 Block diagram 1.5 Dual die angle output 2 Specification 2.1 Application circuit 2.2 Absolute maximum ratings 2.3 Sensor specification 2.3.1 Operating range 2.3.2 Electrical parameters 2.3.3 Output parameters 2.4 Error diagnosis 2.5 Angle performance 2.6 Electrostatic discharge protection 2.7 Electro magnetic compatibility (EMC) 3 Package information 3.1 Package parameters 3.2 Package outlines 3.3 Footprint 3.4 Packing 3.5 Marking 4 Revision history
