Datasheet RV1S9960A (Renesas)

HerstellerRenesas
BeschreibungHIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 14.5mm LONG-CREEPAGE 8-PIN LSDIP
Seiten / Seite14 / 1 — Data. Sheet. RV1S9960A. R08DS0169EJ0100. Rev.1.00. HIGH. CMR,. 15Mbps. …
Dateiformat / GrößePDF / 2.0 Mb
DokumentenspracheEnglisch

Data. Sheet. RV1S9960A. R08DS0169EJ0100. Rev.1.00. HIGH. CMR,. 15Mbps. CMOS. OUTPUT,. LOW. FORWARD-CURRENT(IF). 3.3V/5V. OPERATION,. Jun. 4,. 2019

Datasheet RV1S9960A Renesas

Modelllinie für dieses Datenblatt

Textversion des Dokuments

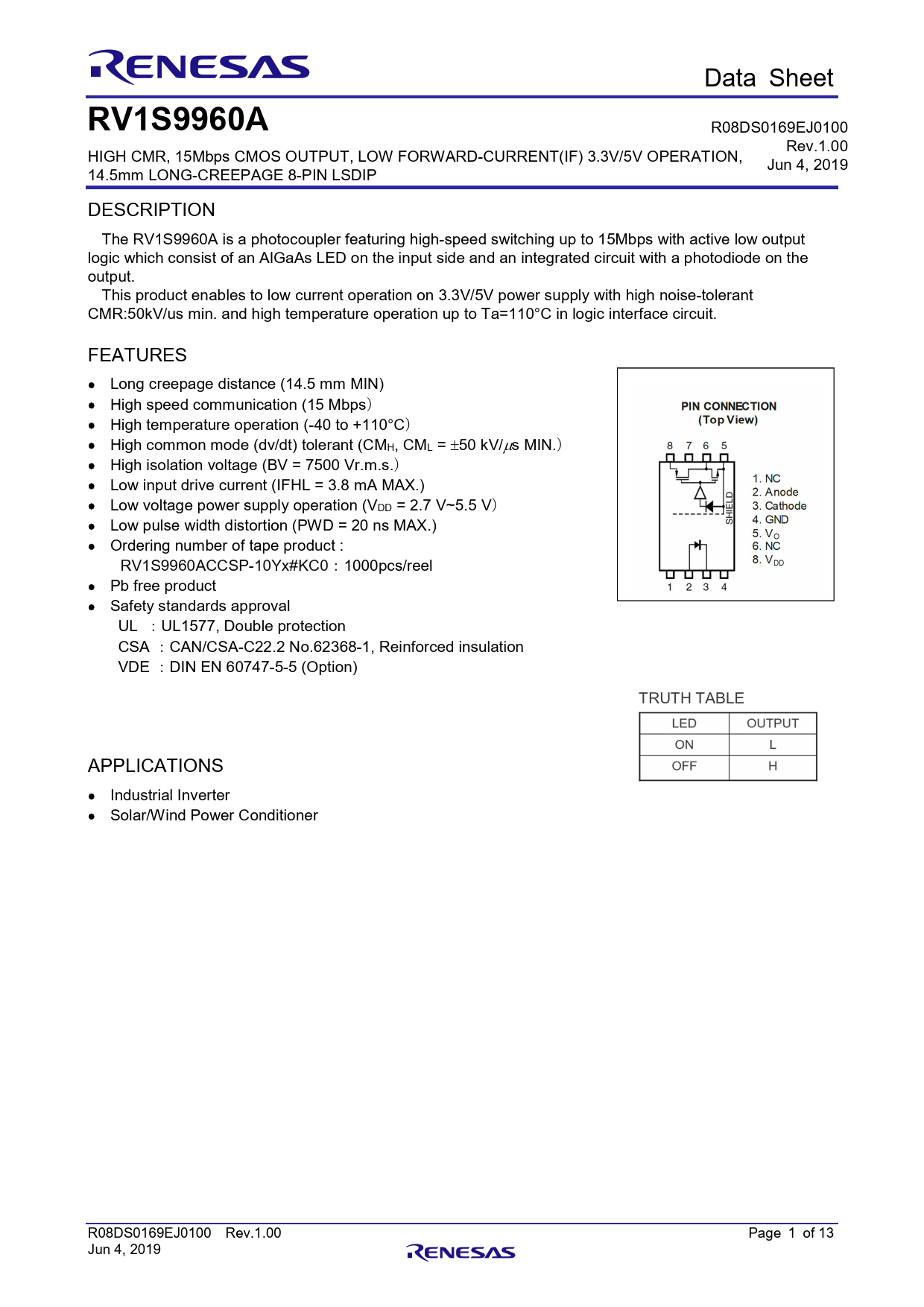

Data Sheet RV1S9960A R08DS0169EJ0100 Rev.1.00 HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, Jun 4, 2019 14.5mm LONG-CREEPAGE 8-PIN LSDIP DESCRIPTION The RV1S9960A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consist of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output. This product enables to low current operation on 3.3V/5V power supply with high noise-tolerant CMR:50kV/us min. and high temperature operation up to Ta=110°C in logic interface circuit. FEATURES Long creepage distance (14.5 mm MIN) High speed communication (15 Mbps) High temperature operation (-40 to +110°C) High common mode (dv/dt) tolerant (CMH, CML = 50 kV/s MIN.) High isolation voltage (BV = 7500 Vr.m.s.) Low input drive current (IFHL = 3.8 mA MAX.) Low voltage power supply operation (VDD = 2.7 V~5.5 V) Low pulse width distortion (PWD = 20 ns MAX.) Ordering number of tape product : RV1S9960ACCSP-10Yx#KC0:1000pcs/reel Pb free product Safety standards approval UL :UL1577, Double protection CSA :CAN/CSA-C22.2 No.62368-1, Reinforced insulation VDE :DIN EN 60747-5-5 (Option) TRUTH TABLE APPLICATIONS Industrial Inverter Solar/Wind Power Conditioner R08DS0169EJ0100 Rev.1.00 Page 1 of 13 Jun 4, 2019
