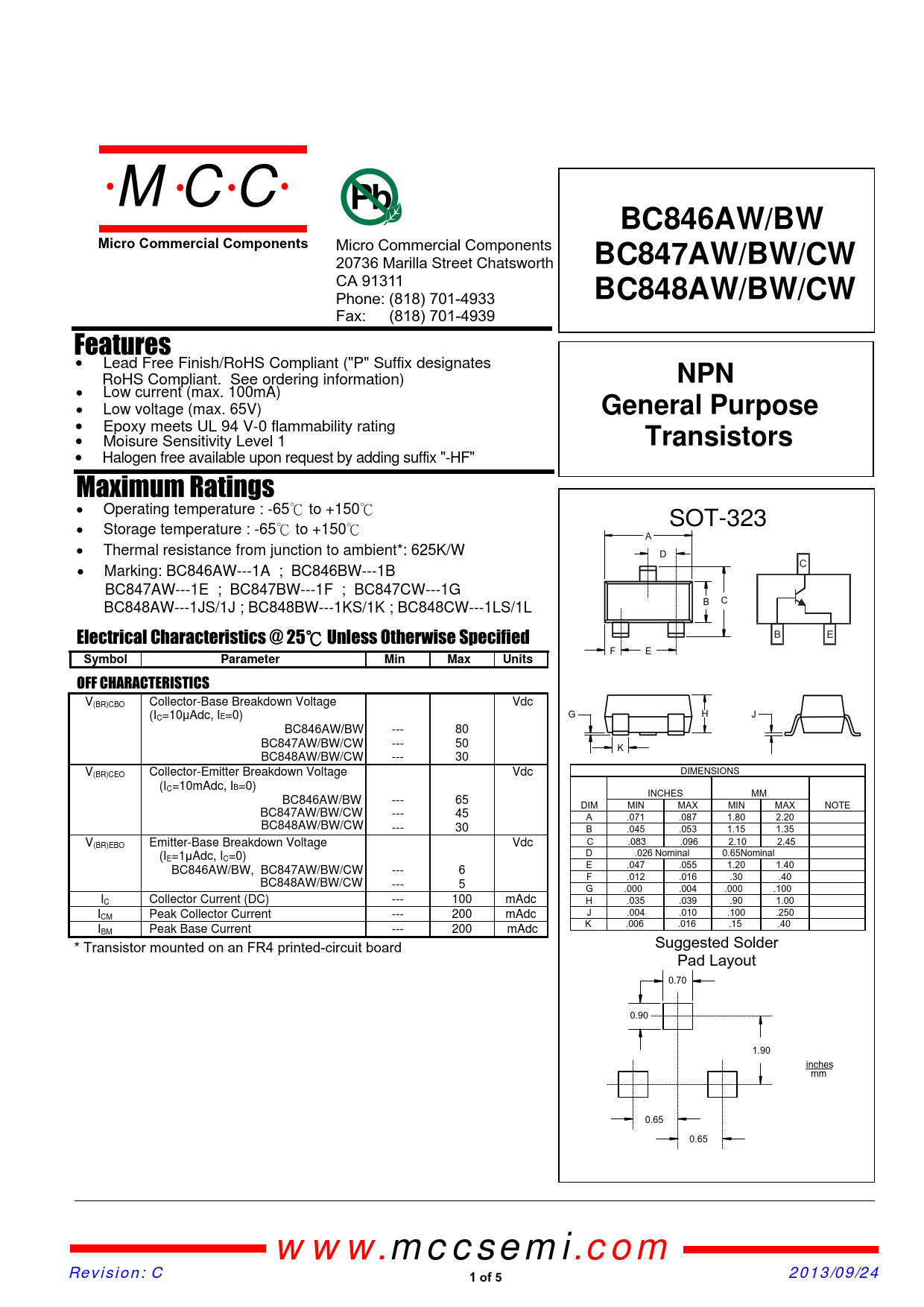

M C C
BC846AW/BW Micro Commercial Components
omponents 20736 Marilla Street Chatsworth
BC847AW/BW/CW
!"#
BC848AW/BW/CW
$ % !"# Features • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)
NPN
• Low current (max. 100mA) • Low voltage (max. 65V)
General Purpose
• Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1
Transistors
• Halogen free available upon request by adding suffix "-HF" Maximum Ratings • Operating temperature : -65к to +150к SOT-323 • Storage temperature : -65к to +150к A • Thermal resistance from junction to ambient*: 625K/W D C • Marking: BC846AW---1A ; BC846BW---1B BC847AW---1E ; BC847BW---1F ; BC847CW---1G C B BC848AW---1JS/1J ; BC848BW---1KS/1K ; BC848CW---1LS/1L B E Electrical Characteristics @ 25к Unless Otherwise Specified F E
Symbol Parameter Min Max Units
OFF CHARACTERISTICS V(BR)CBO Collector-Base Breakdown Voltage Vdc (I G H C=10µAdc, IE=0) J BC846AW/BW --- 80 BC847AW/BW/CW --- 50 K BC848AW/BW/CW --- 30 V(BR)CEO Collector-Emitter Breakdown Voltage Vdc DIMENSIONS (IC=10 mAdc, IB=0) INCHES MM BC846AW/BW --- 65 DIM MIN MAX MIN MAX NOTE BC847AW/BW/CW --- 45 A .071 .087 1.80 2.20 BC848AW/BW/CW --- 30 B .045 .053 1.15 1.35 V(BR)EBO Emitter-Base Breakdown Voltage Vdc C .083 .096 2.10 2.45 (I D .026 Nominal 0.65Nominal E=1µAdc, IC=0) BC846AW/BW, BC847AW/BW/CW --- 6 E .047 .055 1.20 1.40 F .012 .016 .30 .40 BC848AW/BW/CW --- 5 G .000 .004 .000 .100 IC Collector Current (DC) --- 100 mAdc H .035 .039 .90 1.00 I J .004 .010 .100 .250 CM Peak Collector Current --- 200 mAdc I K .006 .016 .15 .40 BM Peak Base Current --- 200 mAdc Suggested Solder * Transistor mounted on an FR4 printed-circuit board Pad Layout 0.70 0.90 1.90 inches mm 0.65 0.65 www.mccsemi.com Revision: C
1 of 5
2013/09/24
