HMC625BLP5E. 0.5 dB LSB GaAs MMIC 6-BIT DIGITAL. VARIABLE GAIN AMPLIFIER, DC - 5 GHz. Typical Applications. Features

Datasheet HMC625BLP5E Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

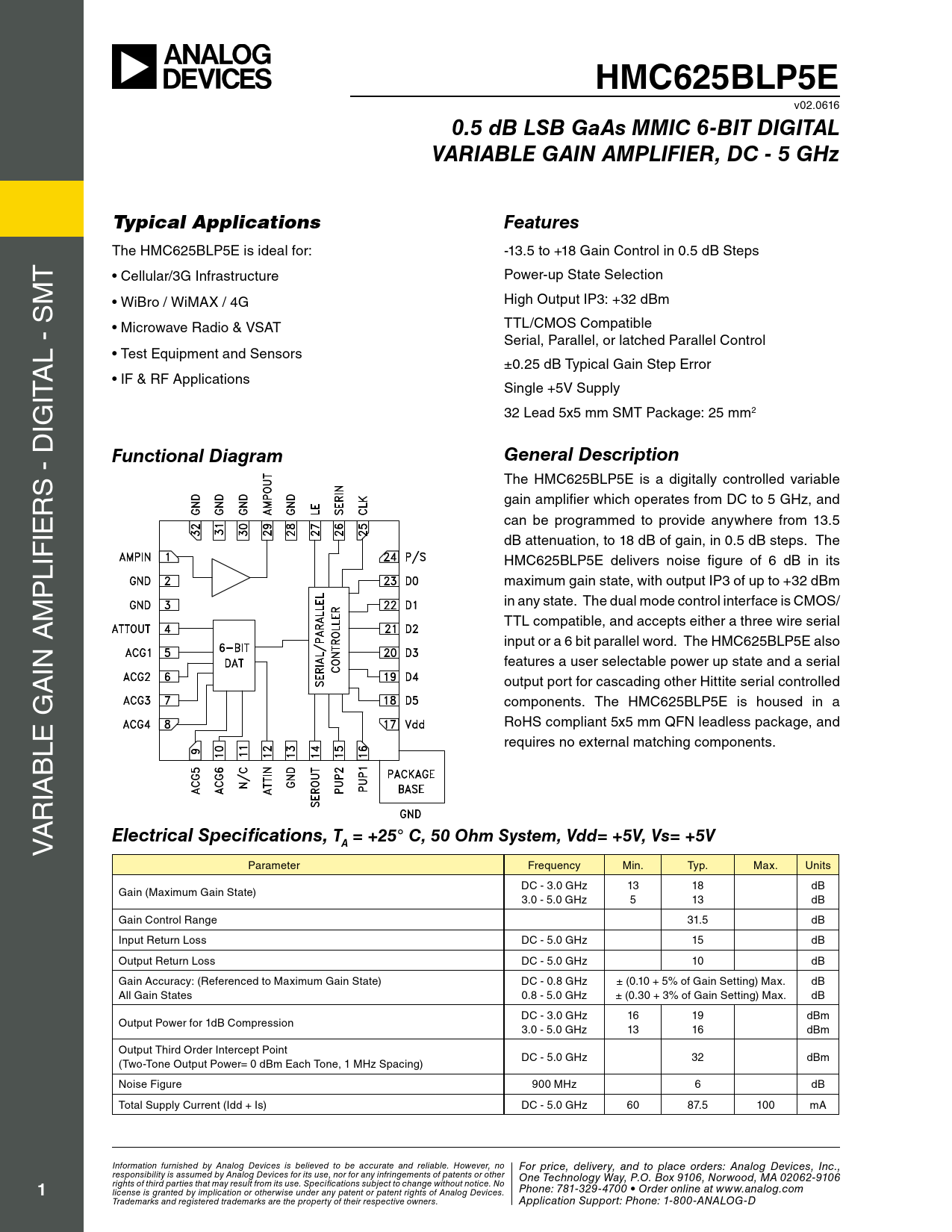

HMC625BLP5E
v02.0616
0.5 dB LSB GaAs MMIC 6-BIT DIGITAL VARIABLE GAIN AMPLIFIER, DC - 5 GHz Typical Applications Features
The HMC625BLP5E is ideal for: -13.5 to +18 Gain Control in 0.5 dB Steps T • Cel ular/3G Infrastructure Power-up State Selection M • WiBro / WiMAX / 4G High Output IP3: +32 dBm • Microwave Radio & VSAT TTL/CMOS Compatible L - S Serial, Parallel, or latched Parallel Control • Test Equipment and Sensors ±0.25 dB Typical Gain Step Error ITA • IF & RF Applications Single +5V Supply IG 32 Lead 5x5 mm SMT Package: 25 mm2
Functional Diagram General Description
S - D The HMC625BLP5E is a digital y control ed variable R gain amplifier which operates from DC to 5 GHz, and IE can be programmed to provide anywhere from 13.5 dB attenuation, to 18 dB of gain, in 0.5 dB steps. The LIF HMC625BLP5E delivers noise figure of 6 dB in its P maximum gain state, with output IP3 of up to +32 dBm M in any state. The dual mode control interface is CMOS/ TTL compatible, and accepts either a three wire serial input or a 6 bit paral el word. The HMC625BLP5E also IN A features a user selectable power up state and a serial A output port for cascading other Hittite serial control ed components. The HMC625BLP5E is housed in a RoHS compliant 5x5 mm QFN leadless package, and LE G requires no external matching components. B IA R A V
Electrical Specifications, T = +25° C, 50 Ohm System, Vdd= +5V, Vs= +5V A
Parameter Frequency Min. Typ. Max. Units DC - 3.0 GHz 13 18 dB Gain (Maximum Gain State) 3.0 - 5.0 GHz 5 13 dB Gain Control Range 31.5 dB Input Return Loss DC - 5.0 GHz 15 dB Output Return Loss DC - 5.0 GHz 10 dB Gain Accuracy: (Referenced to Maximum Gain State) DC - 0.8 GHz ± (0.10 + 5% of Gain Setting) Max. dB All Gain States 0.8 - 5.0 GHz ± (0.30 + 3% of Gain Setting) Max. dB DC - 3.0 GHz 16 19 dBm Output Power for 1dB Compression 3.0 - 5.0 GHz 13 16 dBm Output Third Order Intercept Point DC - 5.0 GHz 32 dBm (Two-Tone Output Power= 0 dBm Each Tone, 1 MHz Spacing) Noise Figure 900 MHz 6 dB Total Supply Current (Idd + Is) DC - 5.0 GHz 60 87.5 100 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Typical Performance Characteristics Maximum Gain vs. Frequency Normalized Attenuation [2 Input Return Loss [2] Output Return Loss [2] Bit Error vs. Frequency [2] Bit Error vs. Attenuation State [2] Normal Relative Phase vs. Frequency [2] Step Error vs. Frequency [2] Serial Control Interface Parallel Mode (Direct Parallel Mode & Latched Parallel Mode) Power-Up States PUP Truth Table Power-On Sequence Absolute Maximum Ratings Truth Table Bookmark 24 Bias Voltage Outline Drawing Package Information Pin Descriptions Application Circuit Evaluation PCB List of Materials for Evaluation PCB 116960 - HMC625ALP5 [1]
