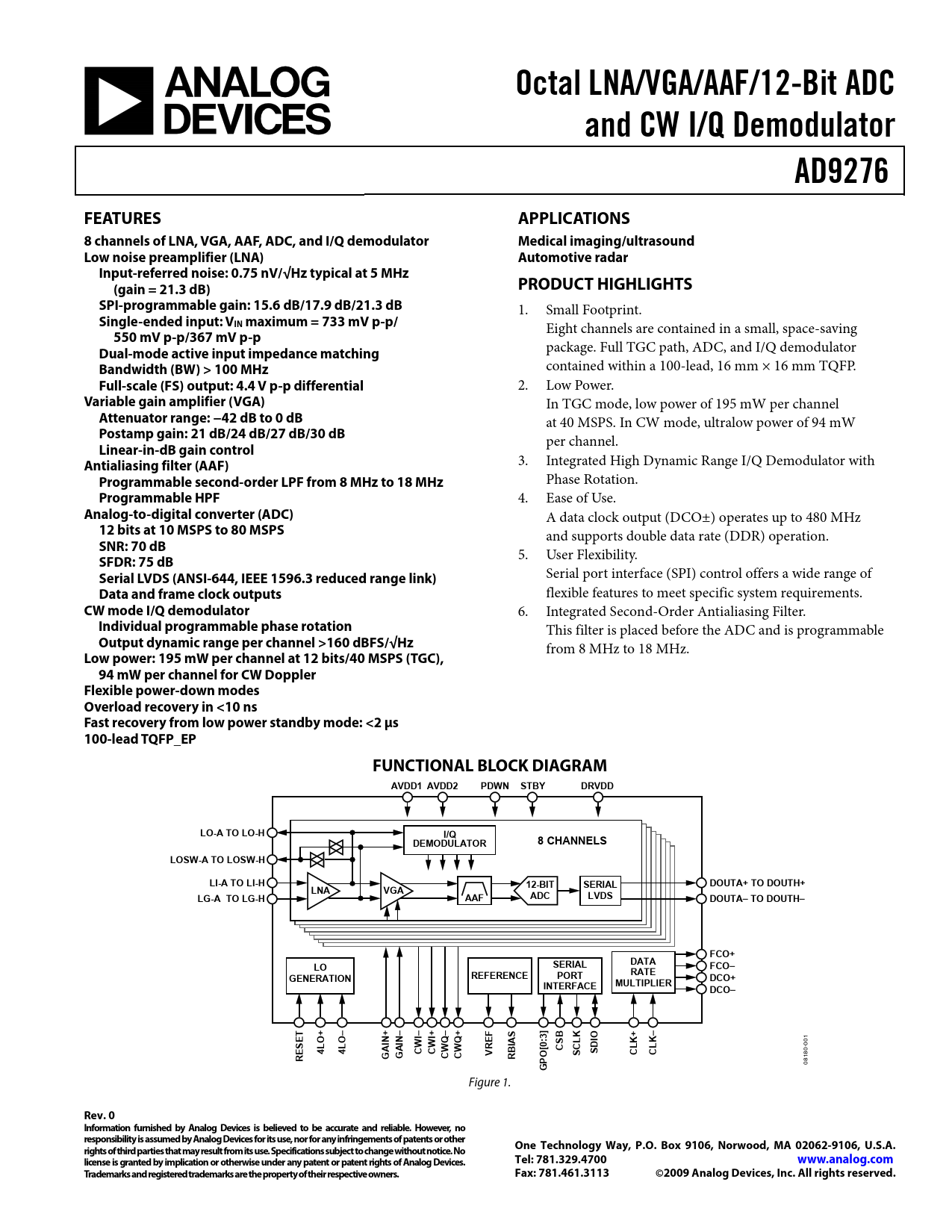

Octal LNA/VGA/AAF/12-Bit ADC. and CW I/Q Demodulator. AD9276. FEATURES. APPLICATIONS

Datasheet AD9276 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Octal LNA/VGA/AAF/12-Bit ADC and CW I/Q Demodulator AD9276 FEATURES APPLICATIONS 8 channels of LNA, VGA, AAF, ADC, and I/Q demodulator Medical imaging/ultrasound Low noise preamplifier (LNA) Automotive radar Input-referred noise: 0.75 nV/√Hz typical at 5 MHz (gain = 21.3 dB) PRODUCT HIGHLIGHTS SPI-programmable gain: 15.6 dB/17.9 dB/21.3 dB
1. Small Footprint.
Single-ended input: VIN maximum = 733 mV p-p/
Eight channels are contained in a small, space-saving
550 mV p-p/367 mV p-p Dual-mode active input impedance matching
package. Full TGC path, ADC, and I/Q demodulator
Bandwidth (BW) > 100 MHz
contained within a 100-lead, 16 mm × 16 mm TQFP.
Full-scale (FS) output: 4.4 V p-p differential
2. Low Power.
Variable gain amplifier (VGA)
In TGC mode, low power of 195 mW per channel
Attenuator range: −42 dB to 0 dB
at 40 MSPS. In CW mode, ultralow power of 94 mW
Postamp gain: 21 dB/24 dB/27 dB/30 dB
per channel.
Linear-in-dB gain control Antialiasing filter (AAF)
3. Integrated High Dynamic Range I/Q Demodulator with
Programmable second-order LPF from 8 MHz to 18 MHz
Phase Rotation.
Programmable HPF
4. Ease of Use.
Analog-to-digital converter (ADC)
A data clock output (DCO±) operates up to 480 MHz
12 bits at 10 MSPS to 80 MSPS
and supports double data rate (DDR) operation.
SNR: 70 dB
5. User Flexibility.
SFDR: 75 dB Serial LVDS (ANSI-644, IEEE 1596.3 reduced range link)
Serial port interface (SPI) control offers a wide range of
Data and frame clock outputs
flexible features to meet specific system requirements.
CW mode I/Q demodulator
6. Integrated Second-Order Antialiasing Filter.
Individual programmable phase rotation
This filter is placed before the ADC and is programmable
Output dynamic range per channel >160 dBFS/√Hz
from 8 MHz to 18 MHz.
Low power: 195 mW per channel at 12 bits/40 MSPS (TGC), 94 mW per channel for CW Doppler Flexible power-down modes Overload recovery in <10 ns Fast recovery from low power standby mode: <2 μs 100-lead TQFP_EP FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 PDWN STBY DRVDD LO-A TO LO-H I/Q DEMODULATOR 8 CHANNELS LOSW-A TO LOSW-H LI-A TO LI-H 12-BIT SERIAL DOUTA+ TO DOUTH+ LNA VGA LG-A TO LG-H AAF ADC LVDS DOUTA– TO DOUTH– FCO+ SERIAL DATA LO FCO– REFERENCE PORT RATE GENERATION DCO+ INTERFACE MULTIPLIER DCO– + + + I– F I+ B K + O O
1
IN IN Q Q E IO AS L K K– SET 0:3] CS
00
E 4L 4L CW CW VR SD
0-
GA GA CW CW O[ SC CL CL R RBI
18
GP
08 Figure 1.
