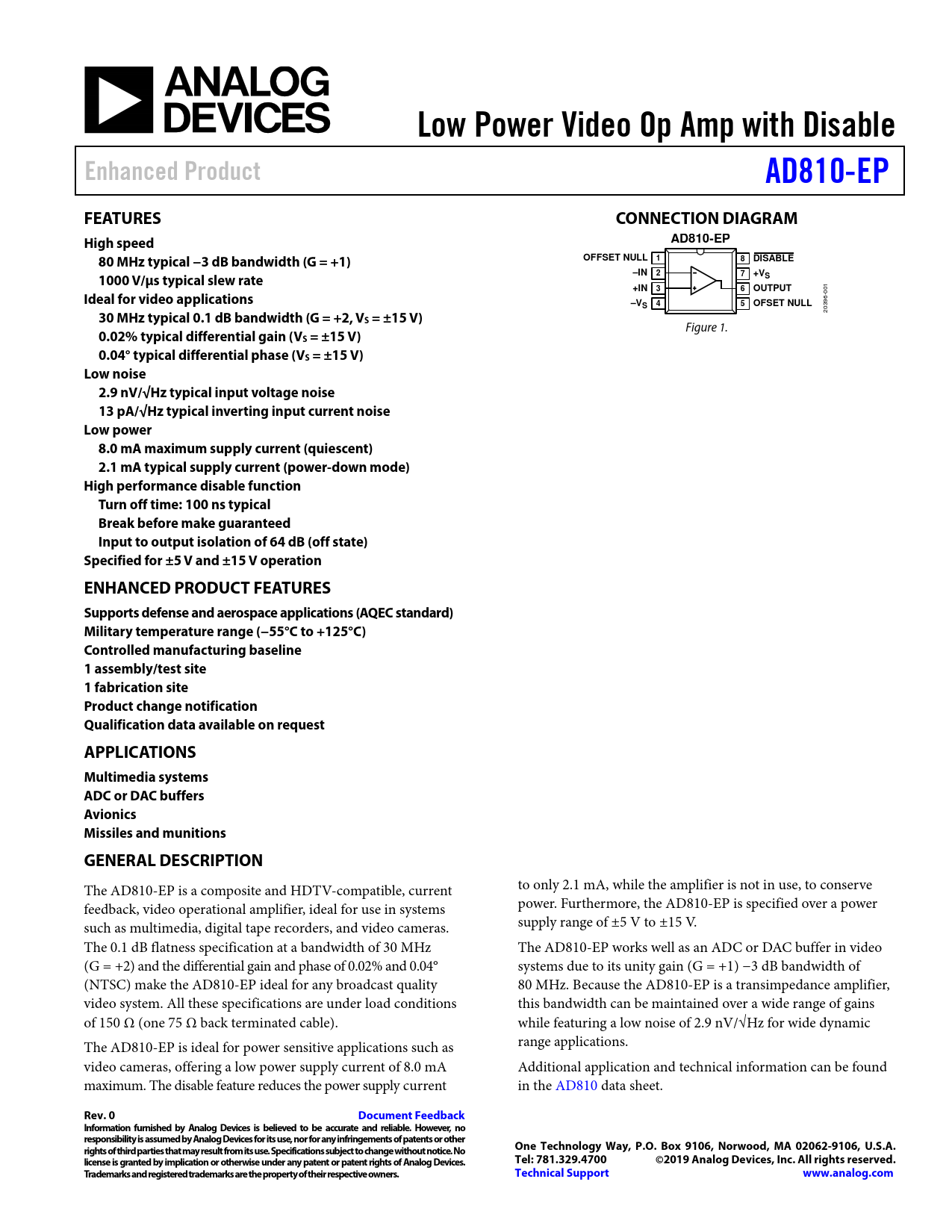

Low Power Video Op Amp with Disable. Enhanced Product. AD810-EP. FEATURES. CONNECTION DIAGRAM. High speed

Datasheet AD810-EP Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Low Power Video Op Amp with Disable Enhanced Product AD810-EP FEATURES CONNECTION DIAGRAM High speed AD810-EP 80 MHz typical −3 dB bandwidth (G = +1) OFFSET NULL 1 8 DISABLE 1000 V/µs typical slew rate –IN 2 7 +VS +IN 3 6 OUTPUT Ideal for video applications
001
–VS 4 5 OFSET NULL 30 MHz typical 0.1 dB bandwidth (G = +2, V
20396-
S = ±15 V)
Figure 1.
0.02% typical differential gain (VS = ±15 V) 0.04° typical differential phase (VS = ±15 V) Low noise 2.9 nV/√Hz typical input voltage noise 13 pA/√Hz typical inverting input current noise Low power 8.0 mA maximum supply current (quiescent) 2.1 mA typical supply current (power-down mode) High performance disable function Turn off time: 100 ns typical Break before make guaranteed Input to output isolation of 64 dB (off state) Specified for ±5 V and ±15 V operation ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Military temperature range (−55°C to +125°C) Controlled manufacturing baseline 1 assembly/test site 1 fabrication site Product change notification Qualification data available on request APPLICATIONS Multimedia systems ADC or DAC buffers Avionics Missiles and munitions GENERAL DESCRIPTION
The AD810-EP is a composite and HDTV-compatible, current to only 2.1 mA, while the amplifier is not in use, to conserve feedback, video operational amplifier, ideal for use in systems power. Furthermore, the AD810-EP is specified over a power such as multimedia, digital tape recorders, and video cameras. supply range of ±5 V to ±15 V. The 0.1 dB flatness specification at a bandwidth of 30 MHz The AD810-EP works well as an ADC or DAC buffer in video (G = +2) and the differential gain and phase of 0.02% and 0.04° systems due to its unity gain (G = +1) −3 dB bandwidth of (NTSC) make the AD810-EP ideal for any broadcast quality 80 MHz. Because the AD810-EP is a transimpedance amplifier, video system. All these specifications are under load conditions this bandwidth can be maintained over a wide range of gains of 150 Ω (one 75 Ω back terminated cable). while featuring a low noise of 2.9 nV/√Hz for wide dynamic The AD810-EP is ideal for power sensitive applications such as range applications. video cameras, offering a low power supply current of 8.0 mA Additional application and technical information can be found maximum. The disable feature reduces the power supply current in the AD810 data sheet.
