Datasheet MA12040P (Infineon)
| Hersteller | Infineon |
| Beschreibung | 2x40W ultra power efficient, fully integrated audio amplifier IC with I2S digital input |
| Seiten / Seite | 88 / 1 — MA12040P. Description. Features. Applications. Package. www.infineon.com |
| Revision | 01_00 |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |
MA12040P. Description. Features. Applications. Package. www.infineon.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments

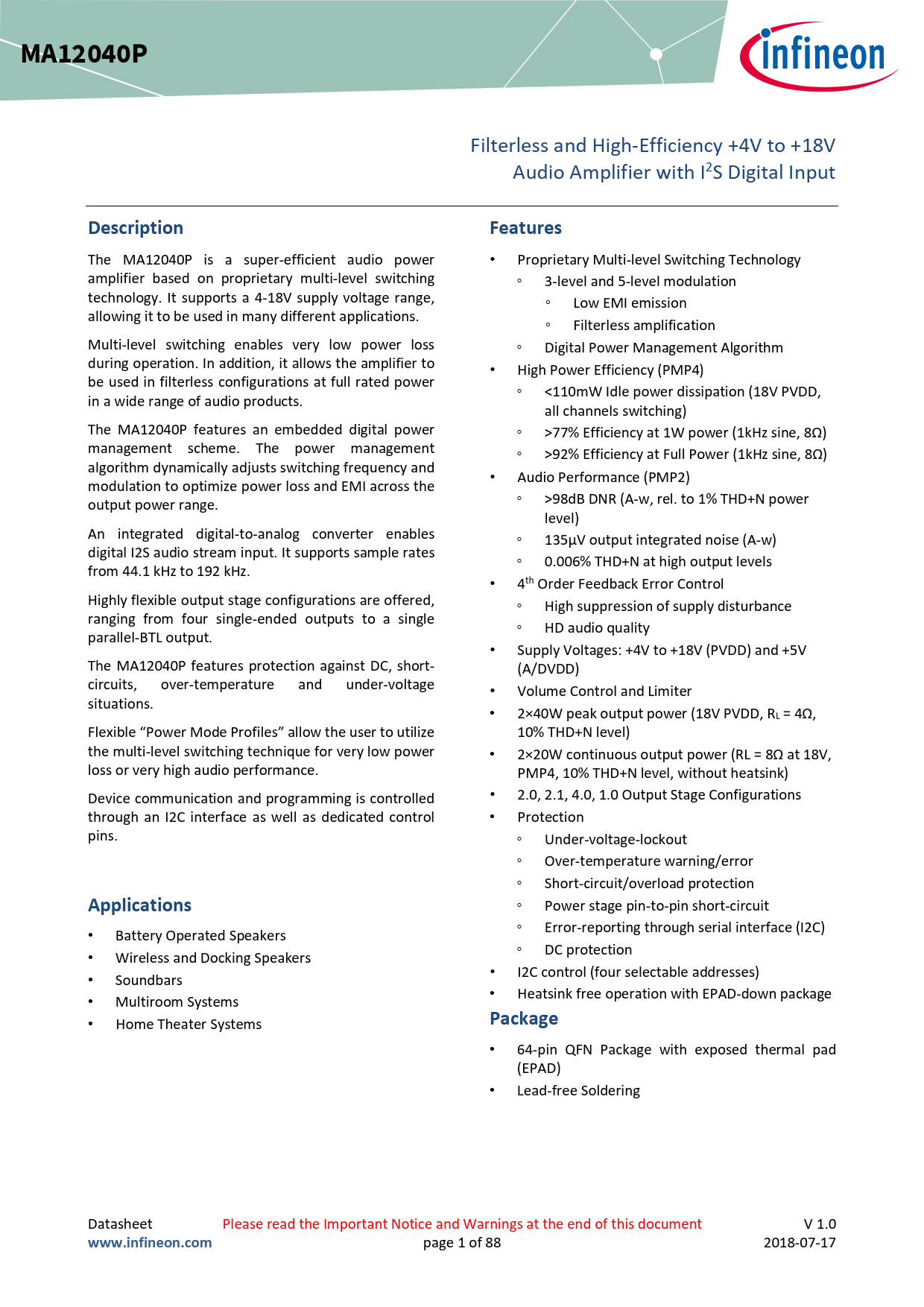

MA12040P
Filterless and High-Efficiency +4V to +18V Audio Amplifier with I2S Digital Input
Description Features
The MA12040P is a super-efficient audio power • Proprietary Multi-level Switching Technology amplifier based on proprietary multi-level switching ◦ 3-level and 5-level modulation technology. It supports a 4-18V supply voltage range, ◦ Low EMI emission allowing it to be used in many different applications. ◦ Filterless amplification Multi-level switching enables very low power loss ◦ Digital Power Management Algorithm during operation. In addition, it allows the amplifier to • High Power Efficiency (PMP4) be used in filterless configurations at full rated power ◦ <110mW Idle power dissipation (18V PVDD, in a wide range of audio products. all channels switching) The MA12040P features an embedded digital power ◦ >77% Efficiency at 1W power (1kHz sine, 8Ω) management scheme. The power management ◦ >92% Efficiency at Full Power (1kHz sine, 8Ω) algorithm dynamically adjusts switching frequency and • Audio Performance (PMP2) modulation to optimize power loss and EMI across the output power range. ◦ >98dB DNR (A-w, rel. to 1% THD+N power level) An integrated digital-to-analog converter enables ◦ 135µV output integrated noise (A-w) digital I2S audio stream input. It supports sample rates ◦ 0.006% THD+N at high output levels from 44.1 kHz to 192 kHz. • 4th Order Feedback Error Control Highly flexible output stage configurations are offered, ◦ High suppression of supply disturbance ranging from four single-ended outputs to a single ◦ HD audio quality parallel-BTL output. • Supply Voltages: +4V to +18V (PVDD) and +5V The MA12040P features protection against DC, short- (A/DVDD) circuits, over-temperature and under-voltage • Volume Control and Limiter situations. • 2×40W peak output power (18V PVDD, RL = 4Ω, Flexible “Power Mode Profiles” allow the user to utilize 10% THD+N level) the multi-level switching technique for very low power • 2×20W continuous output power (RL = 8Ω at 18V, loss or very high audio performance. PMP4, 10% THD+N level, without heatsink) Device communication and programming is controlled • 2.0, 2.1, 4.0, 1.0 Output Stage Configurations through an I2C interface as well as dedicated control • Protection pins. ◦ Under-voltage-lockout ◦ Over-temperature warning/error ◦ Short-circuit/overload protection
Applications
◦ Power stage pin-to-pin short-circuit ◦ Error-reporting through serial interface (I2C) • Battery Operated Speakers ◦ DC protection • Wireless and Docking Speakers • I2C control (four selectable addresses) • Soundbars • Heatsink free operation with EPAD-down package • Multiroom Systems • Home Theater Systems
Package
• 64-pin QFN Package with exposed thermal pad (EPAD) • Lead-free Soldering Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com
page 1 of 88 2018-07-17
Filterless and High-Efficiency +4V to +18V Audio Amplifier with I2S Digital Input
Description Features
The MA12040P is a super-efficient audio power • Proprietary Multi-level Switching Technology amplifier based on proprietary multi-level switching ◦ 3-level and 5-level modulation technology. It supports a 4-18V supply voltage range, ◦ Low EMI emission allowing it to be used in many different applications. ◦ Filterless amplification Multi-level switching enables very low power loss ◦ Digital Power Management Algorithm during operation. In addition, it allows the amplifier to • High Power Efficiency (PMP4) be used in filterless configurations at full rated power ◦ <110mW Idle power dissipation (18V PVDD, in a wide range of audio products. all channels switching) The MA12040P features an embedded digital power ◦ >77% Efficiency at 1W power (1kHz sine, 8Ω) management scheme. The power management ◦ >92% Efficiency at Full Power (1kHz sine, 8Ω) algorithm dynamically adjusts switching frequency and • Audio Performance (PMP2) modulation to optimize power loss and EMI across the output power range. ◦ >98dB DNR (A-w, rel. to 1% THD+N power level) An integrated digital-to-analog converter enables ◦ 135µV output integrated noise (A-w) digital I2S audio stream input. It supports sample rates ◦ 0.006% THD+N at high output levels from 44.1 kHz to 192 kHz. • 4th Order Feedback Error Control Highly flexible output stage configurations are offered, ◦ High suppression of supply disturbance ranging from four single-ended outputs to a single ◦ HD audio quality parallel-BTL output. • Supply Voltages: +4V to +18V (PVDD) and +5V The MA12040P features protection against DC, short- (A/DVDD) circuits, over-temperature and under-voltage • Volume Control and Limiter situations. • 2×40W peak output power (18V PVDD, RL = 4Ω, Flexible “Power Mode Profiles” allow the user to utilize 10% THD+N level) the multi-level switching technique for very low power • 2×20W continuous output power (RL = 8Ω at 18V, loss or very high audio performance. PMP4, 10% THD+N level, without heatsink) Device communication and programming is controlled • 2.0, 2.1, 4.0, 1.0 Output Stage Configurations through an I2C interface as well as dedicated control • Protection pins. ◦ Under-voltage-lockout ◦ Over-temperature warning/error ◦ Short-circuit/overload protection
Applications
◦ Power stage pin-to-pin short-circuit ◦ Error-reporting through serial interface (I2C) • Battery Operated Speakers ◦ DC protection • Wireless and Docking Speakers • I2C control (four selectable addresses) • Soundbars • Heatsink free operation with EPAD-down package • Multiroom Systems • Home Theater Systems
Package
• 64-pin QFN Package with exposed thermal pad (EPAD) • Lead-free Soldering Datasheet Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com
page 1 of 88 2018-07-17
