Datasheet RP516x (Ricoh) - 4
| Hersteller | Ricoh |
| Beschreibung | 0.3V Low Output Voltage Low Quiescent Current 100mA Buck DC/DC Converter |
| Seiten / Seite | 30 / 4 — RP516x. PIN DESCRIPTIONS. Top View. Bottom View. RP516Z (WLCSP-8-P1) Pin … |
| Dateiformat / Größe | PDF / 2.3 Mb |
| Dokumentensprache | Englisch |
RP516x. PIN DESCRIPTIONS. Top View. Bottom View. RP516Z (WLCSP-8-P1) Pin Configuration
Modelllinie für dieses Datenblatt
- RP516H031A-T1-FE RP516H031B-T1-FE RP516H041A-T1-FE RP516H041B-T1-FE RP516H051A-T1-FE RP516H051B-T1-FE RP516H061A-T1-FE RP516H061B-T1-FE RP516H071A-T1-FE RP516H071B-T1-FE RP516H081A-T1-FE RP516H081B-T1-FE RP516H091A-T1-FE RP516H091B-T1-FE RP516H101A-T1-FE RP516H101B-T1-FE RP516H111A-T1-FE RP516H111B-T1-FE RP516H121A-T1-FE RP516H121B-T1-FE RP516K031A-TR RP516K031B-TR RP516K041A-TR RP516K041B-TR RP516K051A-TR RP516K051B-TR RP516K061A-TR RP516K061B-TR RP516K071A-TR RP516K071B-TR RP516K081A-TR RP516K081B-TR RP516K091A-TR RP516K091B-TR RP516K101A-TR RP516K101B-TR RP516K111A-TR RP516K111B-TR RP516K121A-TR RP516K121B-TR RP516Z031A-TR-F RP516Z031B-TR-F RP516Z041A-TR-F RP516Z041B-TR-F RP516Z051A-TR-F RP516Z051B-TR-F RP516Z061A-TR-F RP516Z061B-TR-F RP516Z071A-TR-F RP516Z071B-TR-F RP516Z081A-TR-F RP516Z081B-TR-F RP516Z091A-TR-F RP516Z091B-TR-F RP516Z101A-TR-F RP516Z101B-TR-F RP516Z111A-TR-F RP516Z111B-TR-F RP516Z121A-TR-F RP516Z121B-TR-F
Textversion des Dokuments
link to page 4
RP516x
No.EA-518-190325

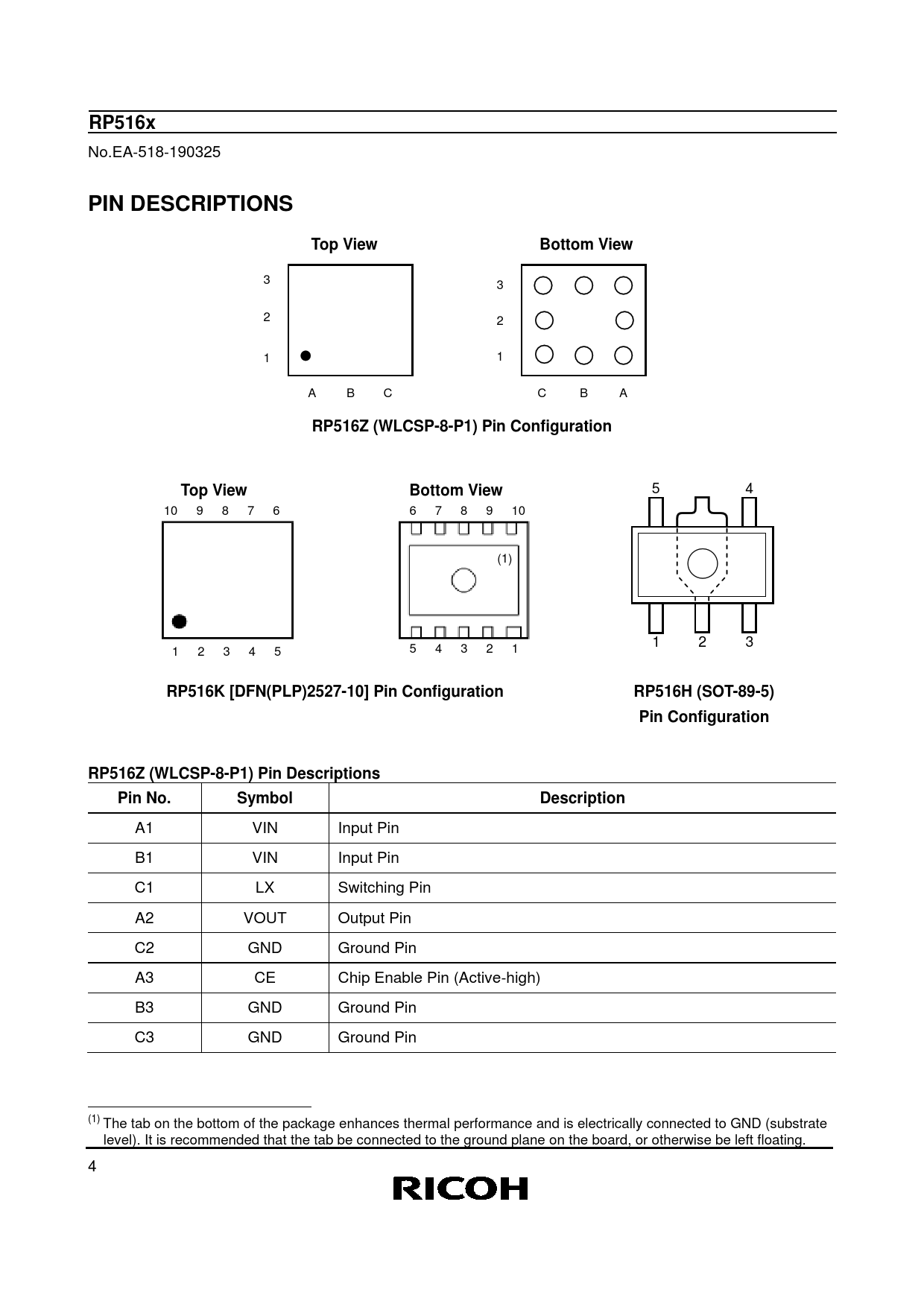

PIN DESCRIPTIONS Top View Bottom View
3 3 2 2 1 1 A B C C B A
RP516Z (WLCSP-8-P1) Pin Configuration Top View Bottom View
5 4 10 9 8 7 6 6 7 8 9 10 (1) 1 2 3
5 4 3 2 1 1 1 2 3 4 5
RP516K [DFN(PLP)2527-10] Pin Configuration RP516H (SOT-89-5) Pin Configuration RP516Z (WLCSP-8-P1) Pin Descriptions Pin No. Symbol Description
A1 VIN Input Pin B1 VIN Input Pin C1 LX Switching Pin A2 VOUT Output Pin C2 GND Ground Pin A3 CE Chip Enable Pin (Active-high) B3 GND Ground Pin C3 GND Ground Pin (1) The tab on the bottom of the package enhances thermal performance and is electrically connected to GND (substrate level). It is recommended that the tab be connected to the ground plane on the board, or otherwise be left floating. 4
