HMC313 / 313E. GaAs InGaP HBT MMIC BROADBAND. AMPLIFIER GAIN BLOCK, DC - 6 GHz. Evaluation PCB

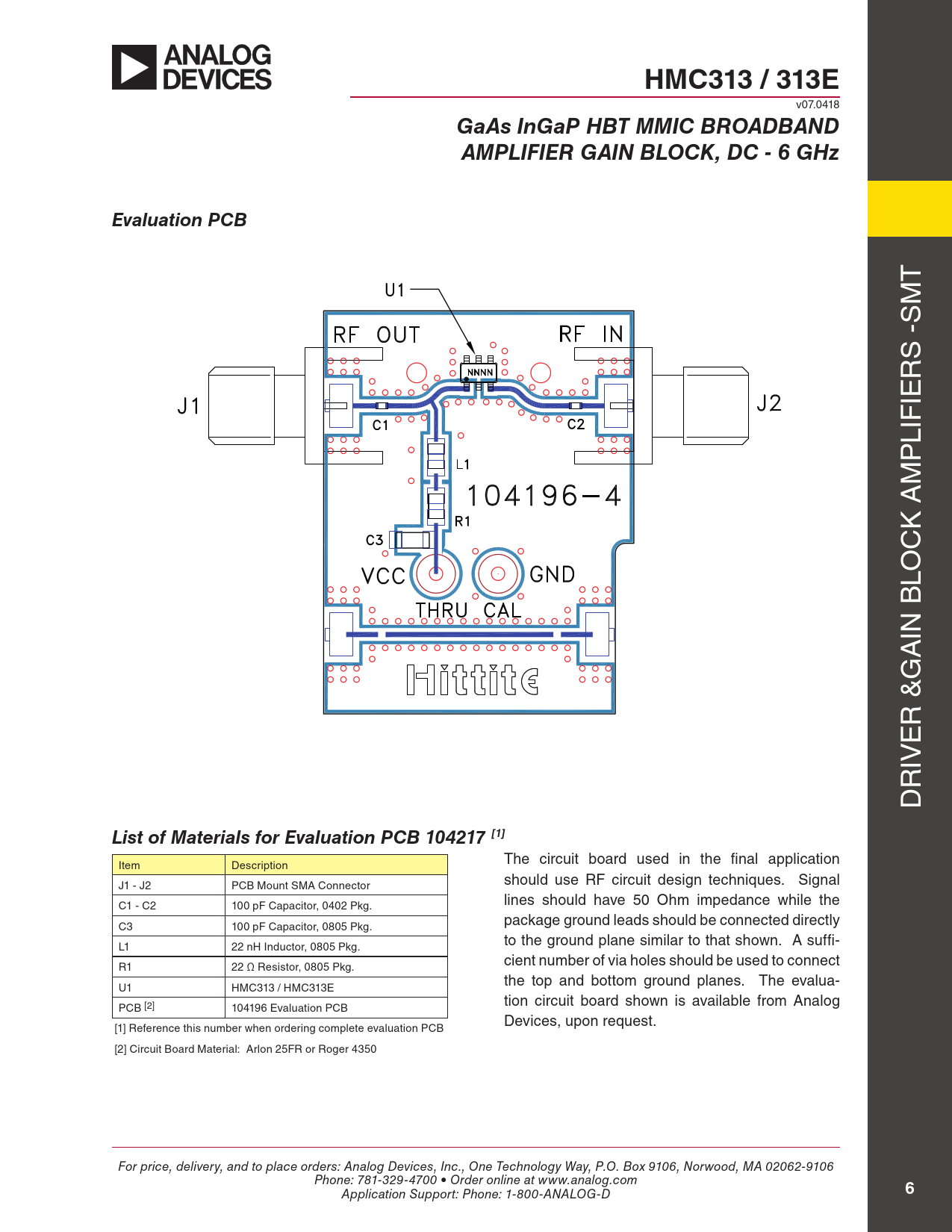

HMC313 / 313E GaAs InGaP HBT MMIC BROADBAND AMPLIFIER GAIN BLOCK, DC - 6 GHz Evaluation PCB

Modelllinie für dieses Datenblatt

Textversion des Dokuments

HMC313 / 313E
v07.0418
GaAs InGaP HBT MMIC BROADBAND AMPLIFIER GAIN BLOCK, DC - 6 GHz Evaluation PCB
T M S S - R IE LIF P M K A C LO IN B A G R & E IV R D
List of Materials for Evaluation PCB 104217 [1]
The circuit board used in the final application Item Description should use RF circuit design techniques. Signal J1 - J2 PCB Mount SMA Connector lines should have 50 Ohm impedance while the C1 - C2 100 pF Capacitor, 0402 Pkg. package ground leads should be connected directly C3 100 pF Capacitor, 0805 Pkg. to the ground plane similar to that shown. A suffi- L1 22 nH Inductor, 0805 Pkg. cient number of via holes should be used to connect R1 22 Ω Resistor, 0805 Pkg. the top and bottom ground planes. The evalua- U1 HMC313 / HMC313E tion circuit board shown is available from Analog PCB [2] 104196 Evaluation PCB Devices, upon request. [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Arlon 25FR or Roger 4350 For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
