Beschreibung2.3 GHz TO 2.4 GHz WiMAX Power Amplifier
Seiten / Seite12 / 3 — ADL5570. SPECIFICATIONS VCC = 3.5 V. Table 1. Parameter. Conditions. Min. …
Dateiformat / GrößePDF / 356 Kb
DokumentenspracheEnglisch

ADL5570. SPECIFICATIONS VCC = 3.5 V. Table 1. Parameter. Conditions. Min. Typ. Max. Unit

ADL5570 SPECIFICATIONS VCC = 3.5 V Table 1 Parameter Conditions Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 3

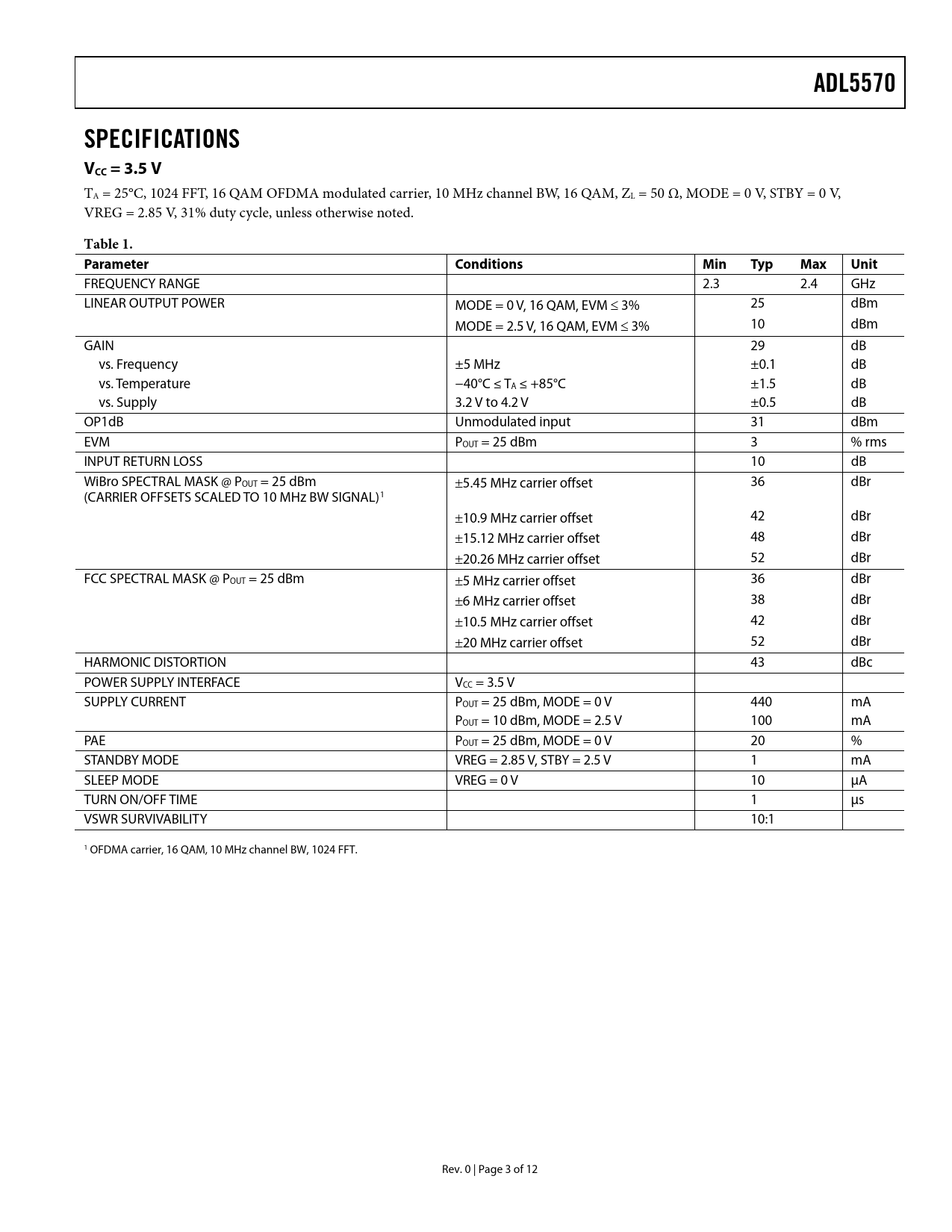

ADL5570 SPECIFICATIONS VCC = 3.5 V
TA = 25°C, 1024 FFT, 16 QAM OFDMA modulated carrier, 10 MHz channel BW, 16 QAM, ZL = 50 Ω, MODE = 0 V, STBY = 0 V, VREG = 2.85 V, 31% duty cycle, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
FREQUENCY RANGE 2.3 2.4 GHz LINEAR OUTPUT POWER MODE = 0 V, 16 QAM, EVM ≤ 3% 25 dBm MODE = 2.5 V, 16 QAM, EVM ≤ 3% 10 dBm GAIN 29 dB vs. Frequency ±5 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±1.5 dB vs. Supply 3.2 V to 4.2 V ±0.5 dB OP1dB Unmodulated input 31 dBm EVM POUT = 25 dBm 3 % rms INPUT RETURN LOSS 10 dB WiBro SPECTRAL MASK @ POUT = 25 dBm ±5.45 MHz carrier offset 36 dBr (CARRIER OFFSETS SCALED TO 10 MHz BW SIGNAL)1 ±10.9 MHz carrier offset 42 dBr ±15.12 MHz carrier offset 48 dBr ±20.26 MHz carrier offset 52 dBr FCC SPECTRAL MASK @ POUT = 25 dBm ±5 MHz carrier offset 36 dBr ±6 MHz carrier offset 38 dBr ±10.5 MHz carrier offset 42 dBr ±20 MHz carrier offset 52 dBr HARMONIC DISTORTION 43 dBc POWER SUPPLY INTERFACE VCC = 3.5 V SUPPLY CURRENT POUT = 25 dBm, MODE = 0 V 440 mA POUT = 10 dBm, MODE = 2.5 V 100 mA PAE POUT = 25 dBm, MODE = 0 V 20 % STANDBY MODE VREG = 2.85 V, STBY = 2.5 V 1 mA SLEEP MODE VREG = 0 V 10 μA TURN ON/OFF TIME 1 μs VSWR SURVIVABILITY 10:1 1 OFDMA carrier, 16 QAM, 10 MHz channel BW, 1024 FFT. Rev. 0 | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS VCC = 3.5 V ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS BASIC CONNECTIONS Power Supply RF Input Interface RF Output Interface Transmit/Standby Enable VREG Enable MODE High Power/Low Power Enable 64 QAM OFDMA PERFORMANCE POWER-ADDED EFFICIENCY EVALUATION BOARD MEASUREMENT SETUP USING THE ADL5570 EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
