ADL5534. Data Sheet. BASIC CONNECTIONS. VPOS. 470nH. 10nF. 1µF. GND. RFIN1. RFOUT1. IN1. FOU R. 1nF. IN2. FOU. RFIN2. RFOUT2. VPOS1. C10. GND1

ADL5534 Data Sheet BASIC CONNECTIONS VPOS 470nH 10nF 1µF GND RFIN1 RFOUT1 IN1 FOU R 1nF IN2 FOU RFIN2 RFOUT2 VPOS1 C10 GND1

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 10 link to page 10
ADL5534 Data Sheet BASIC CONNECTIONS VPOS L1 C7 C9 470nH 10nF 1µF GND RFIN1 RFOUT1 C1 C2 10nF 16 15 14 13 10nF T1 IN1 NC NC C5 12 1 IN1 NC RF FOU R CL 1nF 2 11 NC NC Z1 3 ADL5534 10 NC NC 4 T2 9 NC NC IN2 IN2 FOU RF NC CL R RFIN2 C3 RFOUT2 C4 5 6 7 8 10nF 10nF C6 L2 1nF 470nH VPOS1 C8 C10 10nF 1µF GND1

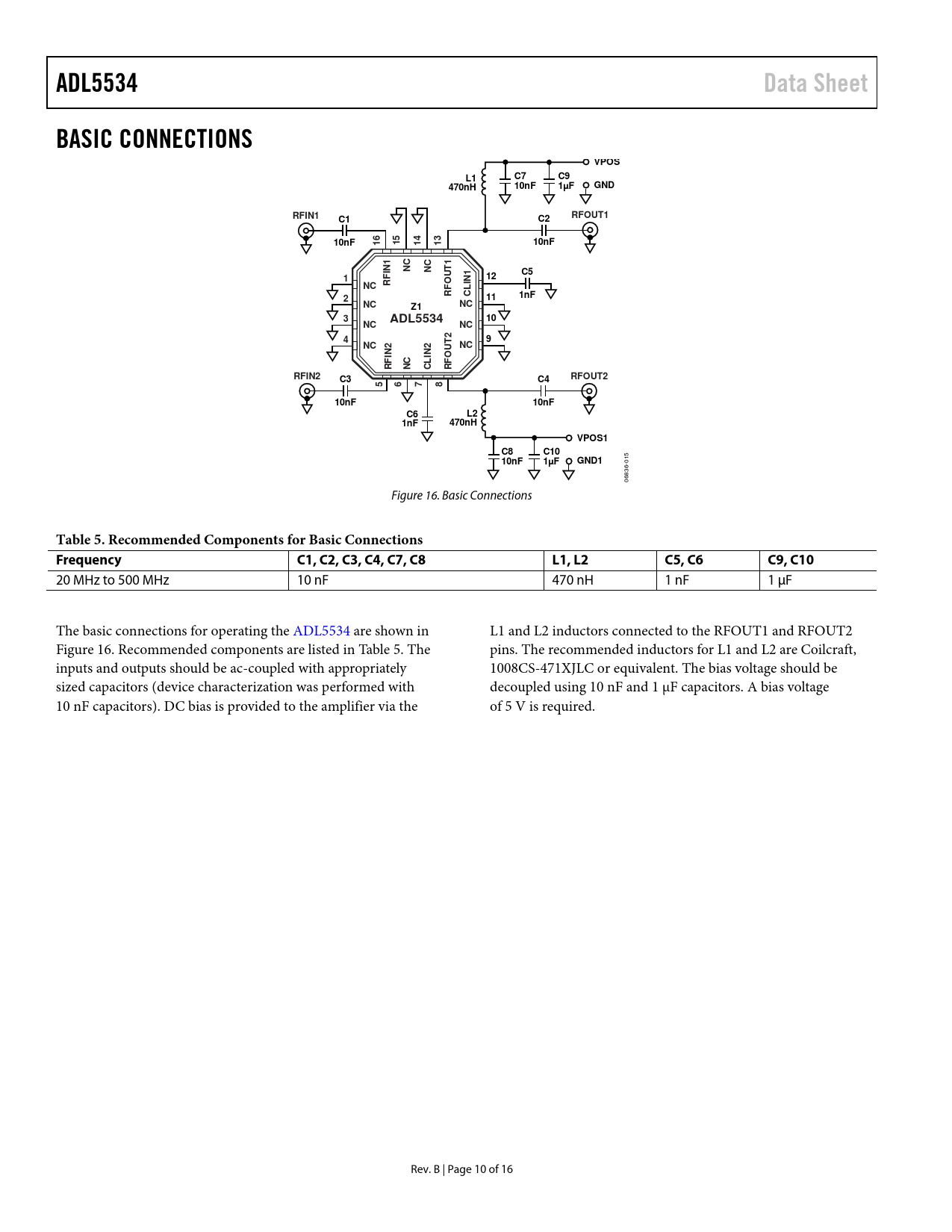

015 06836- Figure 16. Basic Connections
Table 5. Recommended Components for Basic Connections Frequency C1, C2, C3, C4, C7, C8 L1, L2 C5, C6 C9, C10
20 MHz to 500 MHz 10 nF 470 nH 1 nF 1 μF The basic connections for operating the ADL5534 are shown in L1 and L2 inductors connected to the RFOUT1 and RFOUT2 Figure 16. Recommended components are listed in Table 5. The pins. The recommended inductors for L1 and L2 are Coilcraft, inputs and outputs should be ac-coupled with appropriately 1008CS-471XJLC or equivalent. The bias voltage should be sized capacitors (device characterization was performed with decoupled using 10 nF and 1 μF capacitors. A bias voltage 10 nF capacitors). DC bias is provided to the amplifier via the of 5 V is required. Rev. B | Page 10 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Using Baluns to Combine Both Amplifiers into a Single Amplifier ADC Driving Application Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
