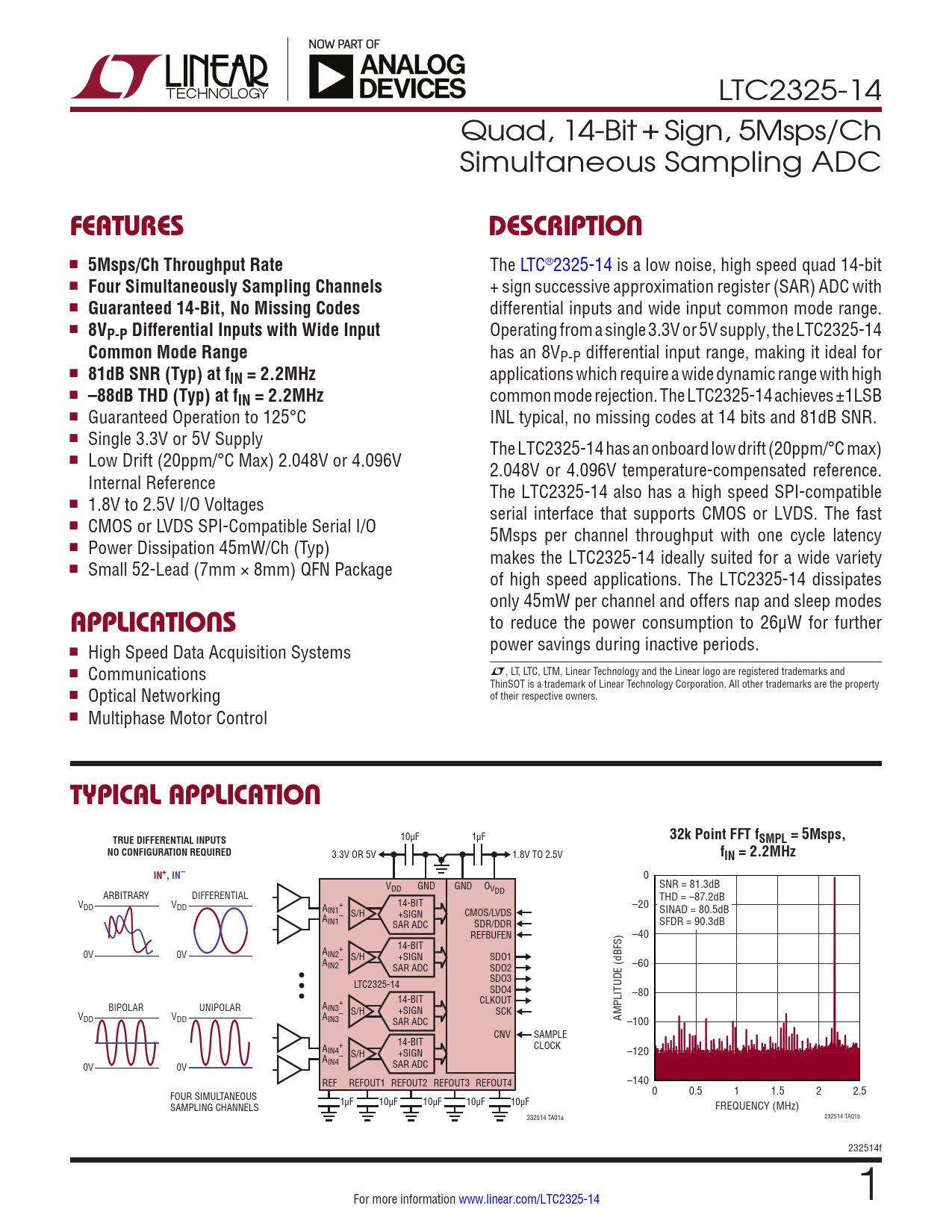

LTC2325-14 Quad, 14-Bit + Sign, 5Msps/Ch Simultaneous Sampling ADC
FeaTures DescripTion
n
5Msps/Ch Throughput Rate
The LTC®2325-14 is a low noise, high speed quad 14-bit n
Four Simultaneously Sampling Channels
+ sign successive approximation register (SAR) ADC with n
Guaranteed 14-Bit, No Missing Codes
differential inputs and wide input common mode range. n
8VP-P Differential Inputs with Wide Input
Operating from a single 3.3V or 5V supply, the LTC2325-14
Common Mode Range
has an 8VP-P differential input range, making it ideal for n
81dB SNR (Typ) at fIN = 2.2MHz
applications which require a wide dynamic range with high n
–88dB THD (Typ) at fIN = 2.2MHz
common mode rejection. The LTC2325-14 achieves ±1LSB n Guaranteed Operation to 125°C INL typical, no missing codes at 14 bits and 81dB SNR. n Single 3.3V or 5V Supply The LTC2325-14 has an onboard low drift (20ppm/°C max) n Low Drift (20ppm/°C Max) 2.048V or 4.096V 2.048V or 4.096V temperature-compensated reference. Internal Reference The LTC2325-14 also has a high speed SPI-compatible n 1.8V to 2.5V I/O Voltages serial interface that supports CMOS or LVDS. The fast n CMOS or LVDS SPI-Compatible Serial I/O 5Msps per channel throughput with one cycle latency n Power Dissipation 45mW/Ch (Typ) makes the LTC2325-14 ideally suited for a wide variety n Small 52-Lead (7mm × 8mm) QFN Package of high speed applications. The LTC2325-14 dissipates only 45mW per channel and offers nap and sleep modes
applicaTions
to reduce the power consumption to 26μW for further n power savings during inactive periods. High Speed Data Acquisition Systems n Communications L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property n Optical Networking of their respective owners. n Multiphase Motor Control
Typical applicaTion
10µF 1µF
32k Point FFT f TRUE DIFFERENTIAL INPUTS SMPL = 5Msps, NO CONFIGURATION REQUIRED
