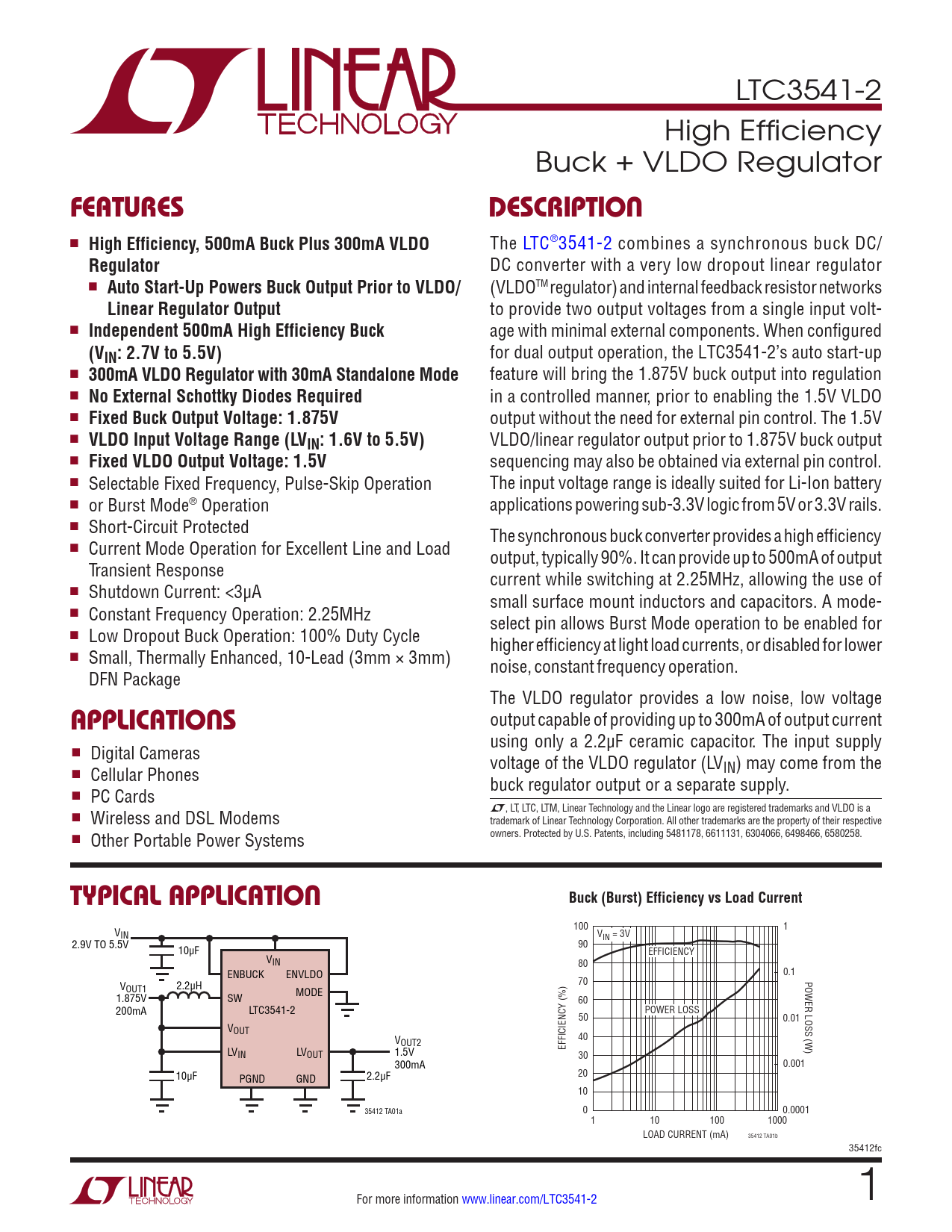

LTC3541-2 High Efficiency Buck + VLDO Regulator
FEATURES DESCRIPTION
n
High Efficiency, 500mA Buck Plus 300mA VLDO
The LTC®3541-2 combines a synchronous buck DC/
Regulator
DC converter with a very low dropout linear regulator n
Auto Start-Up Powers Buck Output Prior to VLDO/
(VLDOTM regulator) and internal feedback resistor networks
Linear Regulator Output
to provide two output voltages from a single input volt- n
Independent 500mA High Efficiency Buck
age with minimal external components. When configured
(VIN: 2.7V to 5.5V)
for dual output operation, the LTC3541-2’s auto start-up n
300mA VLDO Regulator with 30mA Standalone Mode
feature wil bring the 1.875V buck output into regulation n
No External Schottky Diodes Required
in a controlled manner, prior to enabling the 1.5V VLDO n
Fixed Buck Output Voltage: 1.875V
output without the need for external pin control. The 1.5V n
VLDO Input Voltage Range (LVIN: 1.6V to 5.5V)
VLDO/linear regulator output prior to 1.875V buck output n
Fixed VLDO Output Voltage: 1.5V
sequencing may also be obtained via external pin control. n Selectable Fixed Frequency, Pulse-Skip Operation The input voltage range is ideally suited for Li-Ion battery n or Burst Mode® Operation applications powering sub-3.3V logic from 5V or 3.3V rails. n Short-Circuit Protected The synchronous buck converter provides a high efficiency n Current Mode Operation for Excellent Line and Load output, typically 90%. It can provide up to 500mA of output Transient Response current while switching at 2.25MHz, allowing the use of n Shutdown Current: <3µA small surface mount inductors and capacitors. A mode- n Constant Frequency Operation: 2.25MHz select pin allows Burst Mode operation to be enabled for n Low Dropout Buck Operation: 100% Duty Cycle higher efficiency at light load currents, or disabled for lower n Small, Thermally Enhanced, 10-Lead (3mm × 3mm) noise, constant frequency operation. DFN Package The VLDO regulator provides a low noise, low voltage
APPLICATIONS
output capable of providing up to 300mA of output current using only a 2.2µF ceramic capacitor. The input supply n Digital Cameras voltage of the VLDO regulator (LVIN) may come from the n Cellular Phones buck regulator output or a separate supply. n PC Cards L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and VLDO is a n Wireless and DSL Modems trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 5481178, 6611131, 6304066, 6498466, 6580258. n Other Portable Power Systems
TYPICAL APPLICATION Buck (Burst) Efficiency vs Load Current
