Datasheet LT3570 (Analog Devices) - 3

HerstellerAnalog Devices
Beschreibung1.5A Buck Converter, 1.5A Boost Converter and LDO Controller
Seiten / Seite20 / 3 — ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply …
Dateiformat / GrößePDF / 295 Kb
DokumentenspracheEnglisch

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifi cations which apply over the full operating

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LT3570
ELECTRICAL CHARACTERISTICS The
l

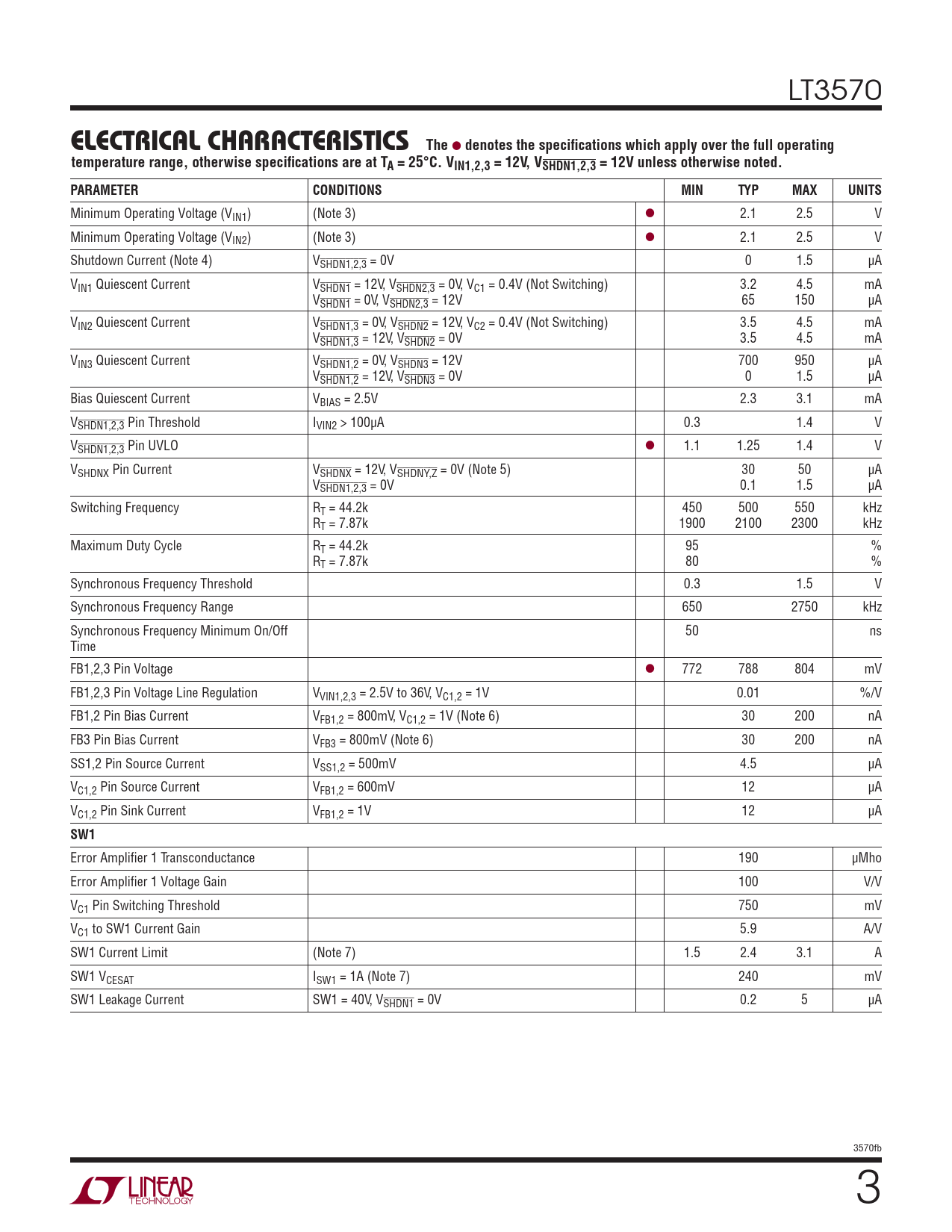

denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN1,2,3 = 12V, VSHDN1,2,3 = 12V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Operating Voltage (VIN1) (Note 3) l 2.1 2.5 V Minimum Operating Voltage (VIN2) (Note 3) l 2.1 2.5 V Shutdown Current (Note 4) VSHDN1,2,3 = 0V 0 1.5 μA VIN1 Quiescent Current VSHDN1 = 12V, VSHDN2,3 = 0V, VC1 = 0.4V (Not Switching) 3.2 4.5 mA VSHDN1 = 0V, VSHDN2,3 = 12V 65 150 μA VIN2 Quiescent Current VSHDN1,3 = 0V, VSHDN2 = 12V, VC2 = 0.4V (Not Switching) 3.5 4.5 mA VSHDN1,3 = 12V, VSHDN2 = 0V 3.5 4.5 mA VIN3 Quiescent Current VSHDN1,2 = 0V, VSHDN3 = 12V 700 950 μA VSHDN1,2 = 12V, VSHDN3 = 0V 0 1.5 μA Bias Quiescent Current VBIAS = 2.5V 2.3 3.1 mA VSHDN1,2,3 Pin Threshold IVIN2 > 100μA 0.3 1.4 V VSHDN1,2,3 Pin UVLO l 1.1 1.25 1.4 V VSHDNX Pin Current VSHDNX = 12V, VSHDNY,Z = 0V (Note 5) 30 50 μA VSHDN1,2,3 = 0V 0.1 1.5 μA Switching Frequency RT = 44.2k 450 500 550 kHz RT = 7.87k 1900 2100 2300 kHz Maximum Duty Cycle RT = 44.2k 95 % RT = 7.87k 80 % Synchronous Frequency Threshold 0.3 1.5 V Synchronous Frequency Range 650 2750 kHz Synchronous Frequency Minimum On/Off 50 ns Time FB1,2,3 Pin Voltage l 772 788 804 mV FB1,2,3 Pin Voltage Line Regulation VVIN1,2,3 = 2.5V to 36V, VC1,2 = 1V 0.01 %/V FB1,2 Pin Bias Current VFB1,2 = 800mV, VC1,2 = 1V (Note 6) 30 200 nA FB3 Pin Bias Current VFB3 = 800mV (Note 6) 30 200 nA SS1,2 Pin Source Current VSS1,2 = 500mV 4.5 μA VC1,2 Pin Source Current VFB1,2 = 600mV 12 μA VC1,2 Pin Sink Current VFB1,2 = 1V 12 μA
