Datasheet LT1360 (Analog Devices)

HerstellerAnalog Devices
Beschreibung50MHz, 800V/µs Op Amp
Seiten / Seite16 / 1 — FEATURES. DESCRIPTIO. 50MHz Gain Bandwidth. 800V/. s Slew Rate. 5mA …
Dateiformat / GrößePDF / 229 Kb
DokumentenspracheEnglisch

FEATURES. DESCRIPTIO. 50MHz Gain Bandwidth. 800V/. s Slew Rate. 5mA Maximum Supply Current. APPLICATIO S. TYPICAL APPLICATIO

Datasheet LT1360 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

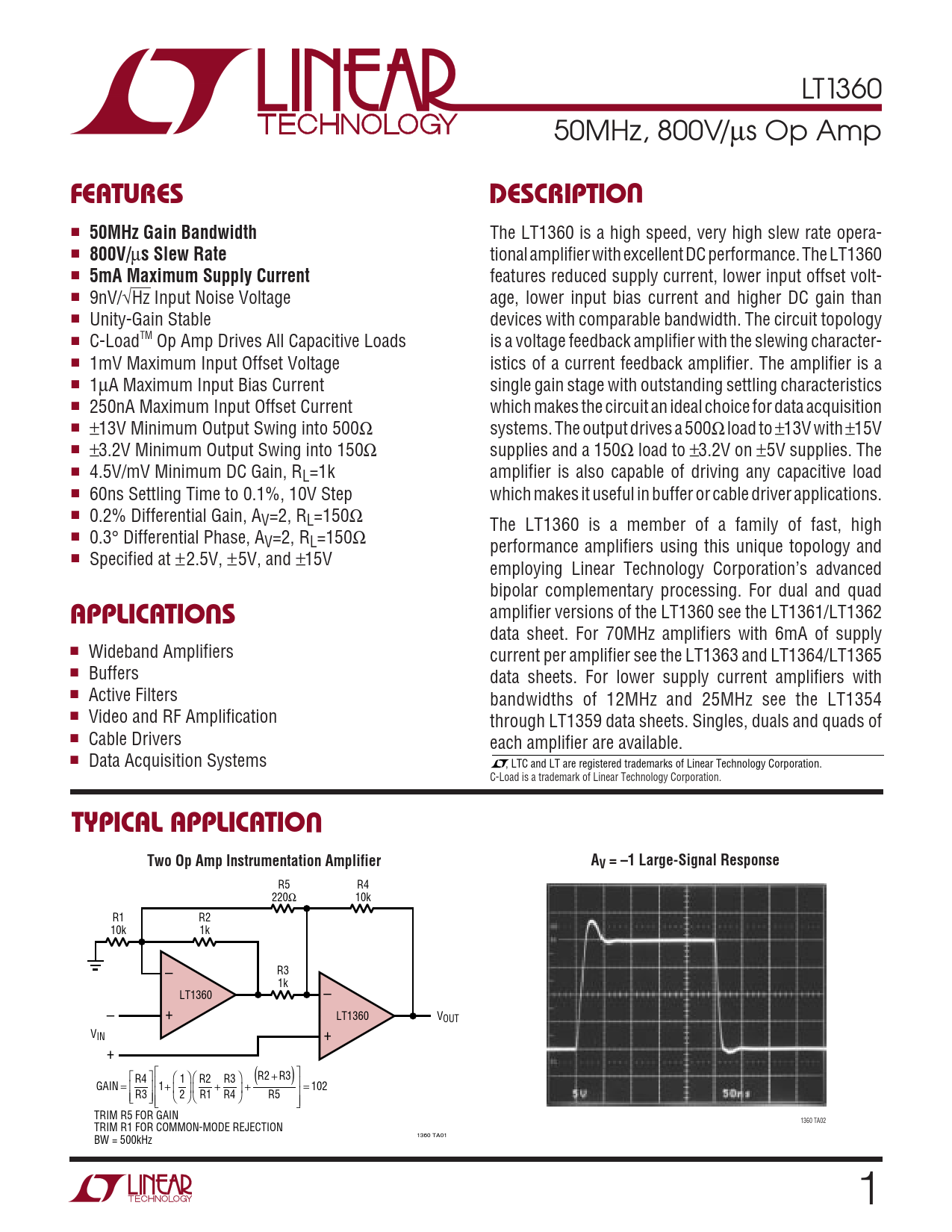

LT1360 50MHz, 800V/µs Op Amp
U FEATURES DESCRIPTIO

50MHz Gain Bandwidth
The LT1360 is a high speed, very high slew rate opera- ■
800V/
µ
s Slew Rate
tional amplifier with excellent DC performance. The LT1360 ■
5mA Maximum Supply Current
features reduced supply current, lower input offset volt- ■ 9nV/√Hz Input Noise Voltage age, lower input bias current and higher DC gain than ■ Unity-Gain Stable devices with comparable bandwidth. The circuit topology ■ C-LoadTM Op Amp Drives All Capacitive Loads is a voltage feedback amplifier with the slewing character- ■ 1mV Maximum Input Offset Voltage istics of a current feedback amplifier. The amplifier is a ■ 1µA Maximum Input Bias Current single gain stage with outstanding settling characteristics ■ 250nA Maximum Input Offset Current which makes the circuit an ideal choice for data acquisition ■ ±13V Minimum Output Swing into 500Ω systems. The output drives a 500Ω load to ±13V with ±15V ■ ±3.2V Minimum Output Swing into 150Ω supplies and a 150Ω load to ±3.2V on ±5V supplies. The ■ 4.5V/mV Minimum DC Gain, RL=1k amplifier is also capable of driving any capacitive load ■ 60ns Settling Time to 0.1%, 10V Step which makes it useful in buffer or cable driver applications. ■ 0.2% Differential Gain, AV=2, RL=150Ω The LT1360 is a member of a family of fast, high ■ 0.3° Differential Phase, AV=2, RL=150Ω performance amplifiers using this unique topology and ■ Specified at ±2.5V, ±5V, and ±15V employing Linear Technology Corporation’s advanced bipolar complementary processing. For dual and quad
U
amplifier versions of the LT1360 see the LT1361/LT1362
APPLICATIO S
data sheet. For 70MHz amplifiers with 6mA of supply ■ Wideband Amplifiers current per amplifier see the LT1363 and LT1364/LT1365 ■ Buffers data sheets. For lower supply current amplifiers with ■ Active Filters bandwidths of 12MHz and 25MHz see the LT1354 ■ Video and RF Amplification through LT1359 data sheets. Singles, duals and quads of ■ Cable Drivers each amplifier are available. ■ Data Acquisition Systems , LTC and LT are registered trademarks of Linear Technology Corporation. C-Load is a trademark of Linear Technology Corporation.
U TYPICAL APPLICATIO Two Op Amp Instrumentation Amplifier AV = –1 Large-Signal Response
R5 R4 220Ω 10k R1 R2 10k 1k R3 – 1k LT1360 – – + LT1360 VOUT VIN + +    4  1 2 3 ( 2 3) R     R R  R + R GAIN =   1+    +  +  = 102 R3  2 R1 R4 R       5    TRIM R5 FOR GAIN 1360 TA02 TRIM R1 FOR COMMON-MODE REJECTION 1360 TA01 BW = 500kHz 1
