Datasheet LT6202, LT6203, LT6204 (Analog Devices)

HerstellerAnalog Devices
BeschreibungQuad 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV√Hz Noise, Low Power Op Amps
Seiten / Seite28 / 1 — FEATURES. DESCRIPTION. Low Noise Voltage: 1.9nV/√Hz (100kHz). Low Supply …
Dateiformat / GrößePDF / 1.7 Mb
DokumentenspracheEnglisch

FEATURES. DESCRIPTION. Low Noise Voltage: 1.9nV/√Hz (100kHz). Low Supply Current: 3mA/Amp Max. Gain Bandwidth Product: 100MHz

Datasheet LT6202, LT6203, LT6204 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

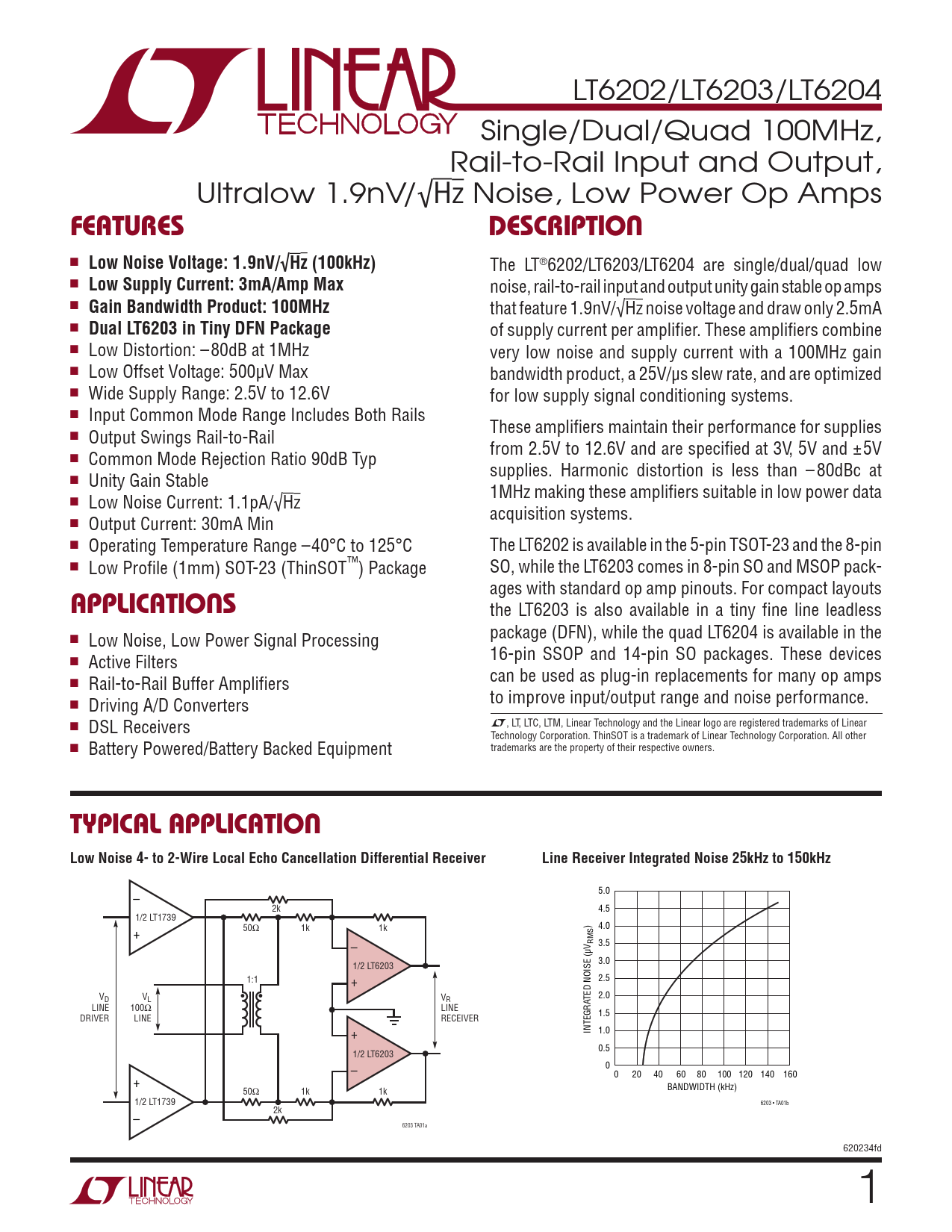

LT6202/LT6203/LT6204 Single/Dual/Quad 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV/√Hz Noise, Low Power Op Amps
FEATURES DESCRIPTION
n
Low Noise Voltage: 1.9nV/√Hz (100kHz)
The LT®6202/LT6203/LT6204 are single/dual/quad low n
Low Supply Current: 3mA/Amp Max
noise, rail-to-rail input and output unity gain stable op amps n
Gain Bandwidth Product: 100MHz
that feature 1.9nV/√Hz noise voltage and draw only 2.5mA n
Dual LT6203 in Tiny DFN Package
of supply current per amplifier. These amplifiers combine n Low Distortion: –80dB at 1MHz very low noise and supply current with a 100MHz gain n Low Offset Voltage: 500µV Max bandwidth product, a 25V/µs slew rate, and are optimized n Wide Supply Range: 2.5V to 12.6V for low supply signal conditioning systems. n Input Common Mode Range Includes Both Rails These amplifiers maintain their performance for supplies n Output Swings Rail-to-Rail from 2.5V to 12.6V and are specified at 3V, 5V and ±5V n Common Mode Rejection Ratio 90dB Typ supplies. Harmonic distortion is less than –80dBc at n Unity Gain Stable 1MHz making these amplifiers suitable in low power data n Low Noise Current: 1.1pA/√Hz acquisition systems. n Output Current: 30mA Min n Operating Temperature Range –40°C to 125°C The LT6202 is available in the 5-pin TSOT-23 and the 8-pin n Low Profile (1mm) SOT-23 (ThinSOT™) Package SO, while the LT6203 comes in 8-pin SO and MSOP pack- ages with standard op amp pinouts. For compact layouts
APPLICATIONS
the LT6203 is also available in a tiny fine line leadless n package (DFN), while the quad LT6204 is available in the Low Noise, Low Power Signal Processing n 16-pin SSOP and 14-pin SO packages. These devices Active Filters n can be used as plug-in replacements for many op amps Rail-to-Rail Buffer Amplifiers n to improve input/output range and noise performance. Driving A/D Converters n DSL Receivers L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. All other n Battery Powered/Battery Backed Equipment trademarks are the property of their respective owners.
TYPICAL APPLICATION Low Noise 4- to 2-Wire Local Echo Cancellation Differential Receiver Line Receiver Integrated Noise 25kHz to 150kHz
– 5.0 2k 4.5 1/2 LT1739 + 50Ω 1k 1k ) 4.0 – V RMS 3.5 1/2 LT6203 3.0 1:1 + 2.5 VD VL • • VR TED NOISE (µ 2.0 LINE 100Ω LINE DRIVER LINE RECEIVER 1.5 + INTEGRA 1.0 0.5 1/2 LT6203 – 0 0 120 140 + 20 40 60 80 100 160 50Ω 1k 1k BANDWIDTH (kHz) 1/2 LT1739 6203 • TA01b 2k – 6203 TA01a 620234fd 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
