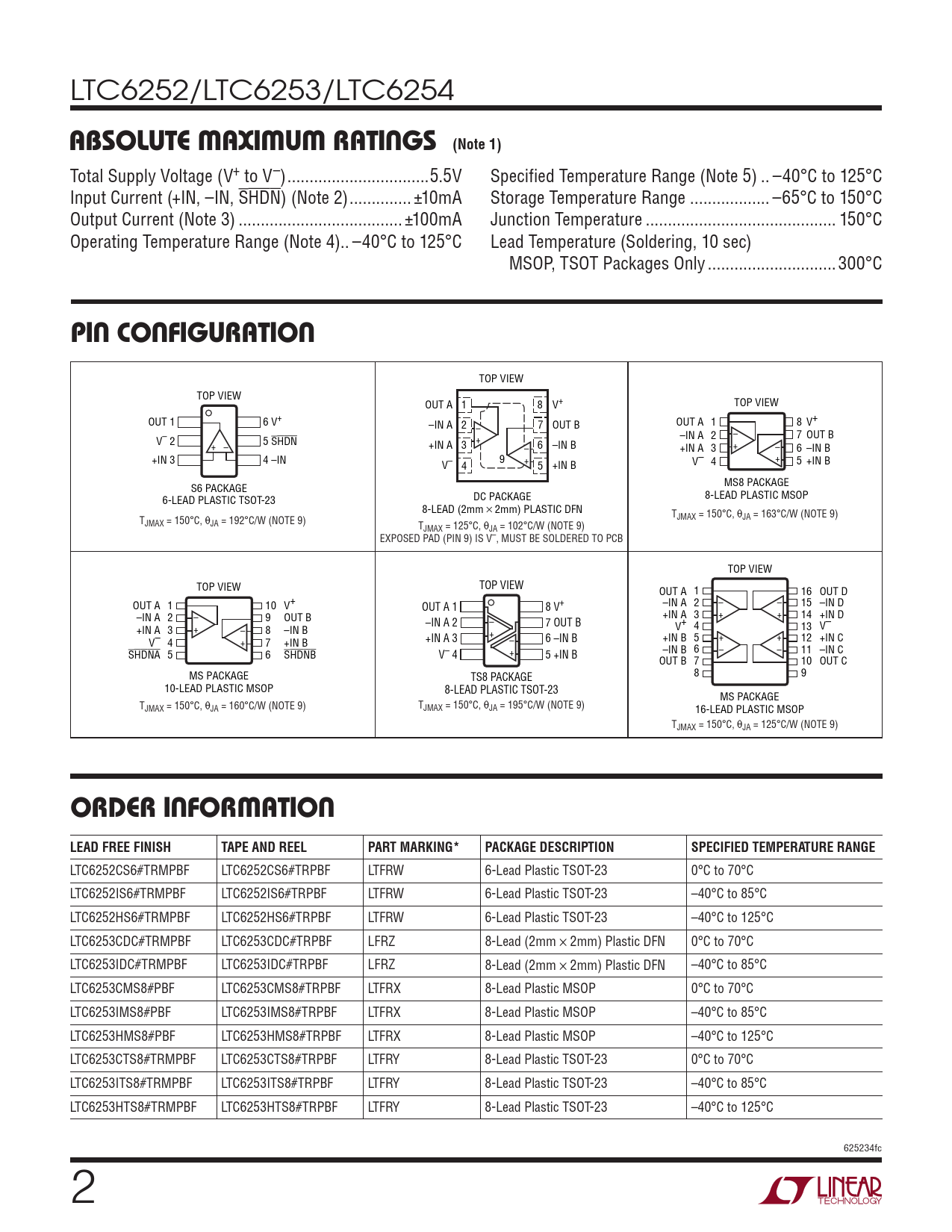

LTC6252/LTC6253/LTC6254
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Specified Temperature Range (Note 5) .. –40°C to 125°C Input Current (+IN, –IN, SHDN) (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C Output Current (Note 3) ...±100mA Junction Temperature ... 150°C Operating Temperature Range (Note 4).. –40°C to 125°C Lead Temperature (Soldering, 10 sec) MSOP, TSOT Packages Only ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT A 1 8 V+ TOP VIEW OUT 1 6 V+ –IN A 2 – 7 OUT B OUT A 1 8 V+ – V– 2 5 SHDN + –IN A 2 7 OUT B + – + – +IN A 3 – 6 –IN B +IN A 3 6 –IN B +IN 3 4 –IN + + V– 9 4 5 +IN B V– 4 5 +IN B S6 PACKAGE MS8 PACKAGE 6-LEAD PLASTIC TSOT-23 DC PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (2mm × 2mm) PLASTIC DFN T TJMAX = 150°C, qJA = 163°C/W (NOTE 9) JMAX = 150°C, qJA = 192°C/W (NOTE 9) TJMAX = 125°C, qJA = 102°C/W (NOTE 9) EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB TOP VIEW TOP VIEW TOP VIEW OUT A 1 16 OUT D – – OUT A 1 10 V+ OUT A 1 8 V+ –IN A 2 15 –IN D + + –IN A 2 – 9 OUT B +IN A 3 14 +IN D –IN A 2 – 7 OUT B +IN A 3 + – 8 –IN B + V+ 4 13 V– – V– 4 + 7 +IN B +IN A 3 6 –IN B +IN B 5 + + 12 +IN C + SHDNA 5 6 SHDNB V– 4 5 +IN B –IN B 6 – – 11 –IN C OUT B 7 10 OUT C MS PACKAGE TS8 PACKAGE 8 9 10-LEAD PLASTIC MSOP 8-LEAD PLASTIC TSOT-23 MS PACKAGE TJMAX = 150°C, qJA = 160°C/W (NOTE 9) TJMAX = 150°C, qJA = 195°C/W (NOTE 9) 16-LEAD PLASTIC MSOP TJMAX = 150°C, qJA = 125°C/W (NOTE 9)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6252CS6#TRMPBF LTC6252CS6#TRPBF LTFRW 6-Lead Plastic TSOT-23 0°C to 70°C LTC6252IS6#TRMPBF LTC6252IS6#TRPBF LTFRW 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6252HS6#TRMPBF LTC6252HS6#TRPBF LTFRW 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6253CDC#TRMPBF LTC6253CDC#TRPBF LFRZ 8-Lead (2mm × 2mm) Plastic DFN 0°C to 70°C LTC6253IDC#TRMPBF LTC6253IDC#TRPBF LFRZ 8-Lead (2mm × 2mm) Plastic DFN –40°C to 85°C LTC6253CMS8#PBF LTC6253CMS8#TRPBF LTFRX 8-Lead Plastic MSOP 0°C to 70°C LTC6253IMS8#PBF LTC6253IMS8#TRPBF LTFRX 8-Lead Plastic MSOP –40°C to 85°C LTC6253HMS8#PBF LTC6253HMS8#TRPBF LTFRX 8-Lead Plastic MSOP –40°C to 125°C LTC6253CTS8#TRMPBF LTC6253CTS8#TRPBF LTFRY 8-Lead Plastic TSOT-23 0°C to 70°C LTC6253ITS8#TRMPBF LTC6253ITS8#TRPBF LTFRY 8-Lead Plastic TSOT-23 –40°C to 85°C LTC6253HTS8#TRMPBF LTC6253HTS8#TRPBF LTFRY 8-Lead Plastic TSOT-23 –40°C to 125°C 625234fc 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
