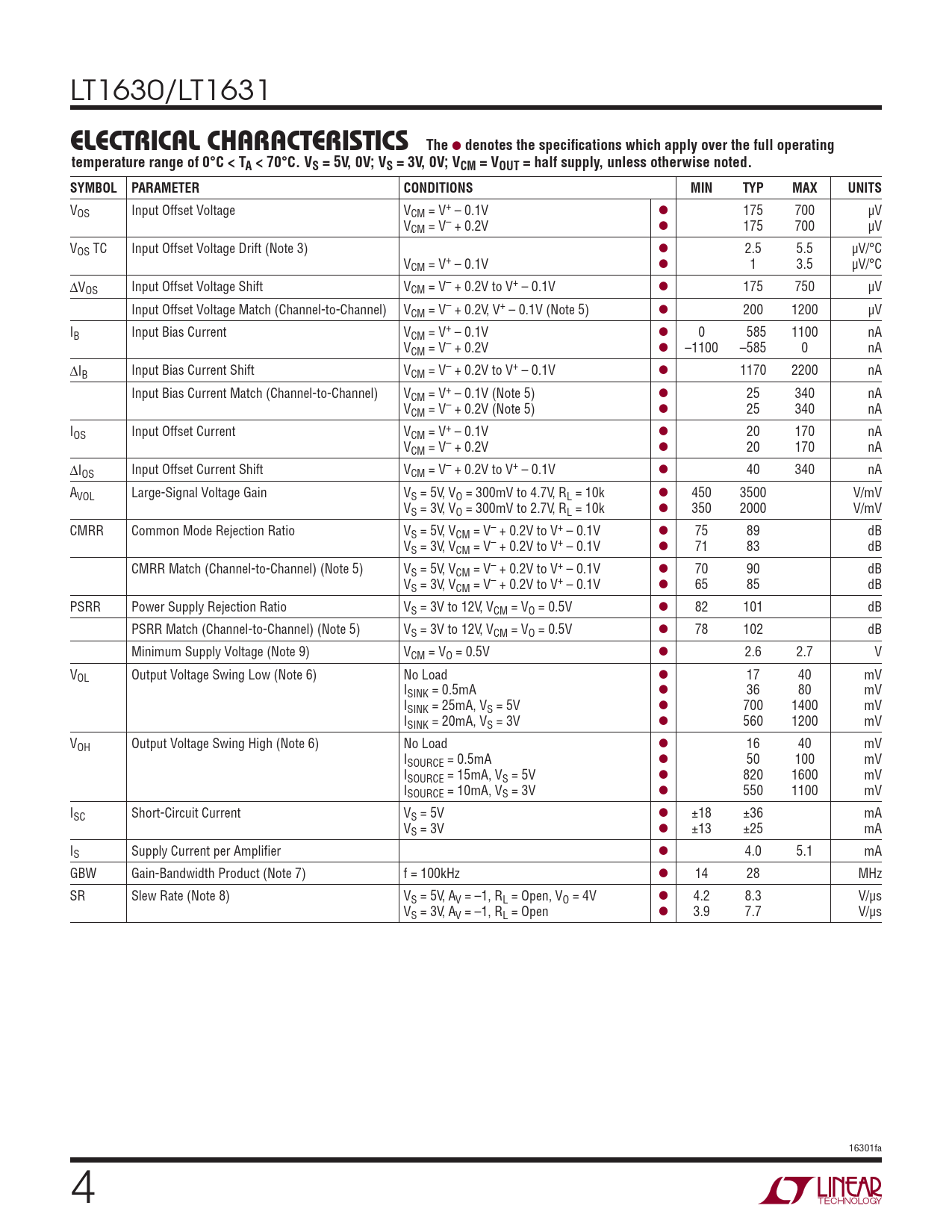

LT1630/LT1631 e
lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range of 0°C < TA < 70°C. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V l 175 700 µV VCM = V– + 0.2V l 175 700 µV VOS TC Input Offset Voltage Drift (Note 3) l 2.5 5.5 µV/°C VCM = V+ – 0.1V l 1 3.5 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V l 175 750 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) l 200 1200 µV IB Input Bias Current VCM = V+ – 0.1V l 0 585 1100 nA VCM = V– + 0.2V l –1100 –585 0 nA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V l 1170 2200 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) l 25 340 nA VCM = V– + 0.2V (Note 5) l 25 340 nA IOS Input Offset Current VCM = V+ – 0.1V l 20 170 nA VCM = V– + 0.2V l 20 170 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V l 40 340 nA AVOL Large-Signal Voltage Gain VS = 5V, VO = 300mV to 4.7V, RL = 10k l 450 3500 V/mV VS = 3V, VO = 300mV to 2.7V, RL = 10k l 350 2000 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– + 0.2V to V+ – 0.1V l 75 89 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V l 71 83 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = V– + 0.2V to V+ – 0.1V l 70 90 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V l 65 85 dB PSRR Power Supply Rejection Ratio VS = 3V to 12V, VCM = VO = 0.5V l 82 101 dB PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 12V, VCM = VO = 0.5V l 78 102 dB Minimum Supply Voltage (Note 9) VCM = VO = 0.5V l 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load l 17 40 mV ISINK = 0.5mA l 36 80 mV ISINK = 25mA, VS = 5V l 700 1400 mV ISINK = 20mA, VS = 3V l 560 1200 mV VOH Output Voltage Swing High (Note 6) No Load l 16 40 mV ISOURCE = 0.5mA l 50 100 mV ISOURCE = 15mA, VS = 5V l 820 1600 mV ISOURCE = 10mA, VS = 3V l 550 1100 mV ISC Short-Circuit Current VS = 5V l ±18 ±36 mA VS = 3V l ±13 ±25 mA IS Supply Current per Amplifier l 4.0 5.1 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz l 14 28 MHz SR Slew Rate (Note 8) VS = 5V, AV = –1, RL = Open, VO = 4V l 4.2 8.3 V/µs VS = 3V, AV = –1, RL = Open l 3.9 7.7 V/µs 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range of 0°C < TA < 70°C. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V l 175 700 µV VCM = V– + 0.2V l 175 700 µV VOS TC Input Offset Voltage Drift (Note 3) l 2.5 5.5 µV/°C VCM = V+ – 0.1V l 1 3.5 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V l 175 750 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) l 200 1200 µV IB Input Bias Current VCM = V+ – 0.1V l 0 585 1100 nA VCM = V– + 0.2V l –1100 –585 0 nA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V l 1170 2200 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) l 25 340 nA VCM = V– + 0.2V (Note 5) l 25 340 nA IOS Input Offset Current VCM = V+ – 0.1V l 20 170 nA VCM = V– + 0.2V l 20 170 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V l 40 340 nA AVOL Large-Signal Voltage Gain VS = 5V, VO = 300mV to 4.7V, RL = 10k l 450 3500 V/mV VS = 3V, VO = 300mV to 2.7V, RL = 10k l 350 2000 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– + 0.2V to V+ – 0.1V l 75 89 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V l 71 83 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = V– + 0.2V to V+ – 0.1V l 70 90 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V l 65 85 dB PSRR Power Supply Rejection Ratio VS = 3V to 12V, VCM = VO = 0.5V l 82 101 dB PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 12V, VCM = VO = 0.5V l 78 102 dB Minimum Supply Voltage (Note 9) VCM = VO = 0.5V l 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load l 17 40 mV ISINK = 0.5mA l 36 80 mV ISINK = 25mA, VS = 5V l 700 1400 mV ISINK = 20mA, VS = 3V l 560 1200 mV VOH Output Voltage Swing High (Note 6) No Load l 16 40 mV ISOURCE = 0.5mA l 50 100 mV ISOURCE = 15mA, VS = 5V l 820 1600 mV ISOURCE = 10mA, VS = 3V l 550 1100 mV ISC Short-Circuit Current VS = 5V l ±18 ±36 mA VS = 3V l ±13 ±25 mA IS Supply Current per Amplifier l 4.0 5.1 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz l 14 28 MHz SR Slew Rate (Note 8) VS = 5V, AV = –1, RL = Open, VO = 4V l 4.2 8.3 V/µs VS = 3V, AV = –1, RL = Open l 3.9 7.7 V/µs 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
