Datasheet LT1797 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | 10MHz, Rail-to-Rail Input and Output Op Amp in SOT-23 |
| Seiten / Seite | 14 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| Dateiformat / Größe | PDF / 778 Kb |
| Dokumentensprache | Englisch |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion http://www.linear.com/product/LT1797#orderinfo
Modelllinie für dieses Datenblatt
Textversion des Dokuments

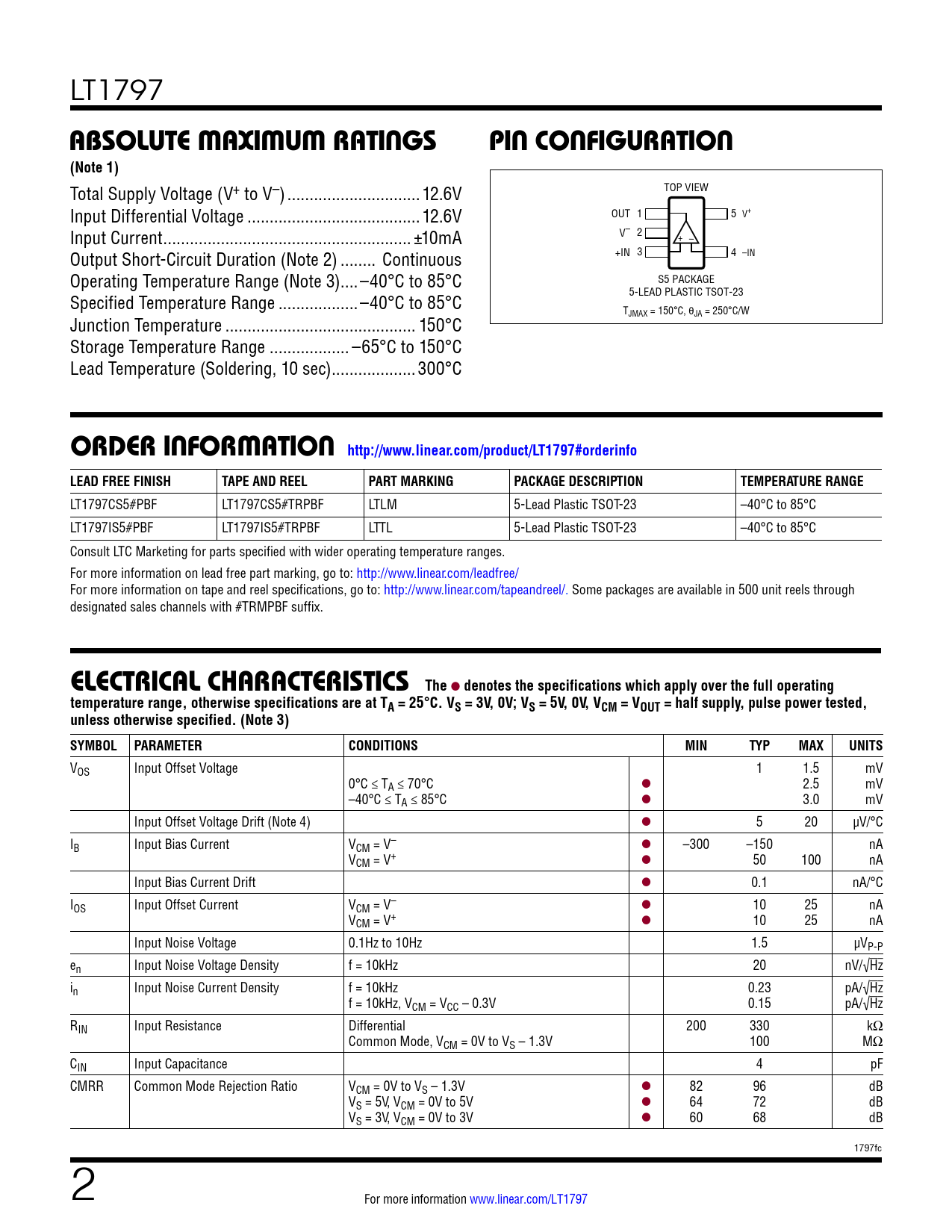

LT1797
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V TOP VIEW Input Differential Voltage ...12.6V OUT 1 5 V+ Input Current .. ±10mA V– 2 + – Output Short-Circuit Duration (Note 2) .. Continuous +IN 3 4 –IN Operating Temperature Range (Note 3) ..–40°C to 85°C S5 PACKAGE Specified Temperature Range ..–40°C to 85°C 5-LEAD PLASTIC TSOT-23 T Junction Temperature ... 150°C JMAX = 150°C, θJA = 250°C/W Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
orDer inForMaTion http://www.linear.com/product/LT1797#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1797CS5#PBF LT1797CS5#TRPBF LTLM 5-Lead Plastic TSOT-23 –40°C to 85°C LT1797IS5#PBF LT1797IS5#TRPBF LTTL 5-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = 3V, 0V; VS = 5V, 0V, VCM = VOUT = half supply, pulse power tested, unless otherwise specified. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 1 1.5 mV 0°C ≤ TA ≤ 70°C l 2.5 mV –40°C ≤ TA ≤ 85°C l 3.0 mV Input Offset Voltage Drift (Note 4) l 5 20 µV/°C IB Input Bias Current VCM = V– l –300 –150 nA VCM = V+ l 50 100 nA Input Bias Current Drift l 0.1 nA/°C IOS Input Offset Current VCM = V– l 10 25 nA VCM = V+ l 10 25 nA Input Noise Voltage 0.1Hz to 10Hz 1.5 µVP-P en Input Noise Voltage Density f = 10kHz 20 nV/√Hz in Input Noise Current Density f = 10kHz 0.23 pA/√Hz f = 10kHz, VCM = VCC – 0.3V 0.15 pA/√Hz RIN Input Resistance Differential 200 330 kΩ Common Mode, VCM = 0V to VS – 1.3V 100 MΩ CIN Input Capacitance 4 pF CMRR Common Mode Rejection Ratio VCM = 0V to VS – 1.3V l 82 96 dB VS = 5V, VCM = 0V to 5V l 64 72 dB VS = 3V, VCM = 0V to 3V l 60 68 dB 1797fc 2 For more information www.linear.com/LT1797
