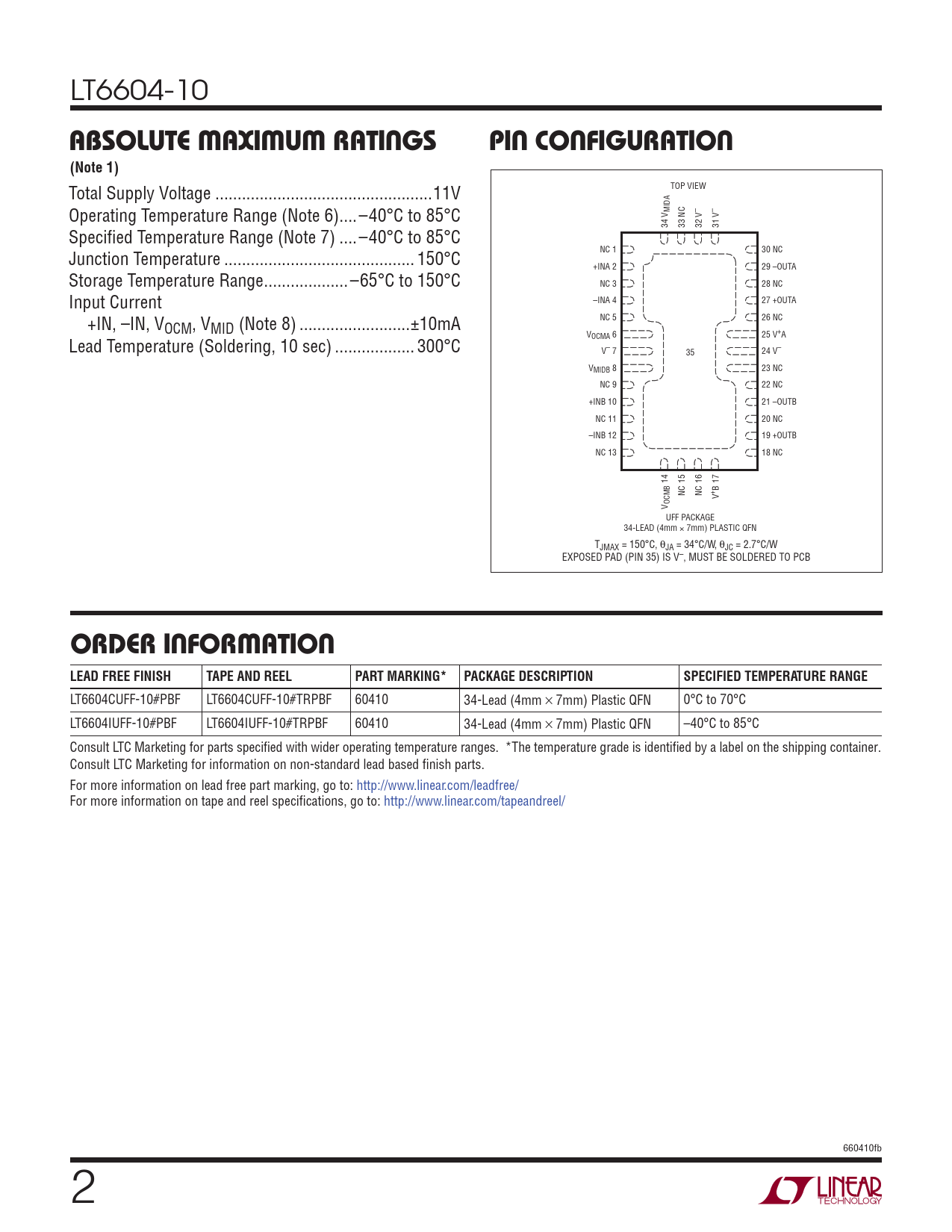

LT6604-10
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage ...11V TOP VIEW Operating Temperature Range (Note 6).. –40°C to 85°C MIDA – – 34 V 33 NC 32 V 31 V Specifi ed Temperature Range (Note 7) .. –40°C to 85°C NC 1 30 NC Junction Temperature ... 150°C +INA 2 29 –OUTA Storage Temperature Range ... –65°C to 150°C NC 3 28 NC Input Current –INA 4 27 +OUTA +IN, –IN, V NC 5 26 NC OCM, VMID (Note 8) ...±10mA VOCMA 6 25 V+A Lead Temperature (Soldering, 10 sec) .. 300°C V– 7 35 24 V– VMIDB 8 23 NC NC 9 22 NC +INB 10 21 –OUTB NC 11 20 NC –INB 12 19 +OUTB NC 13 18 NC 14 NC 15 + B 17 NC 16 V V OCMB UFF PACKAGE 34-LEAD (4mm × 7mm) PLASTIC QFN TJMAX = 150°C, θJA = 34°C/W, θJC = 2.7°C/W EXPOSED PAD (PIN 35) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6604CUFF-10#PBF LT6604CUFF-10#TRPBF 60410 34-Lead (4mm × 7mm) Plastic QFN 0°C to 70°C LT6604IUFF-10#PBF LT6604IUFF-10#TRPBF 60410 34-Lead (4mm × 7mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 660410fb 2
