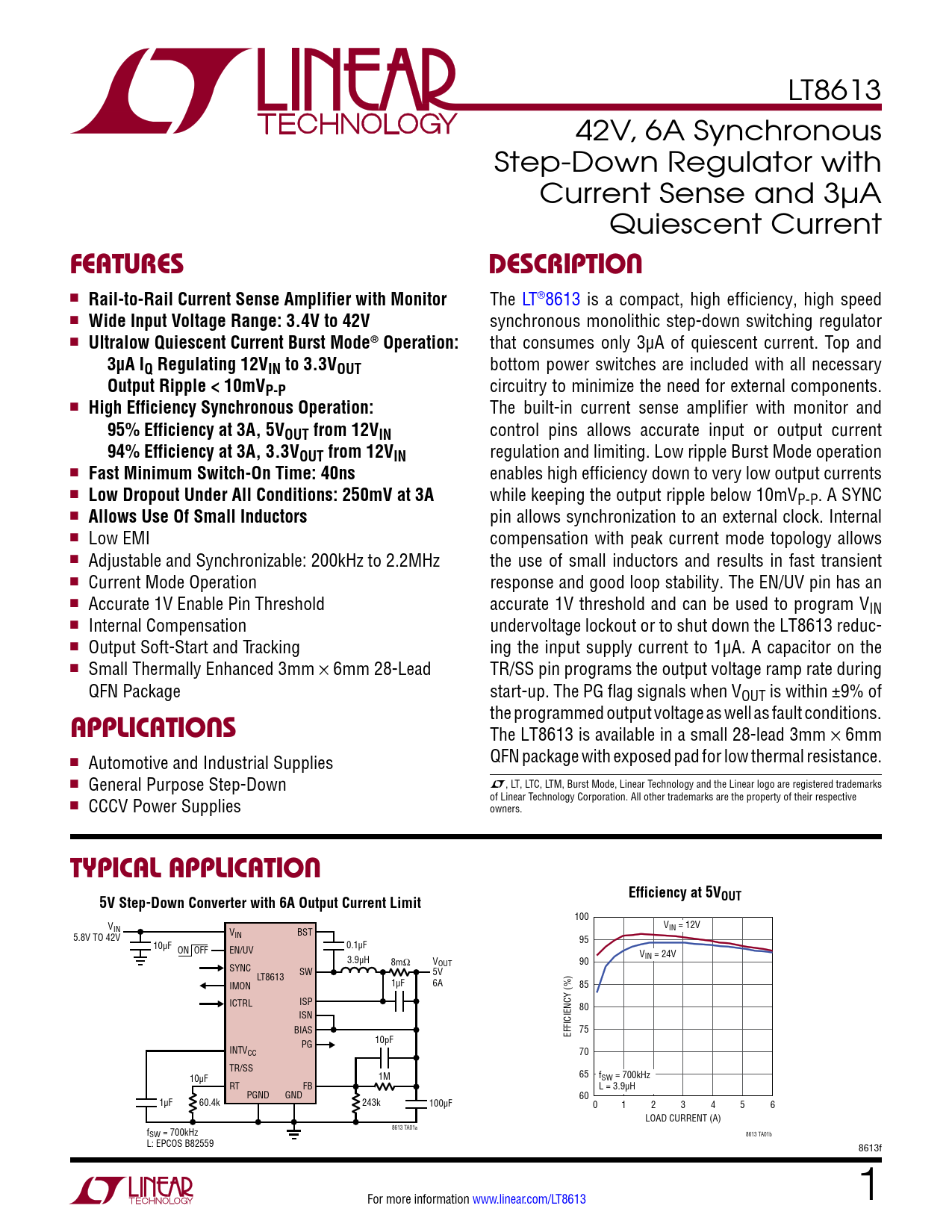

LT8613 42V, 6A Synchronous Step-Down Regulator with Current Sense and 3µA Quiescent Current
FeaTures DescripTion
n
Rail-to-Rail Current Sense Amplifier with Monitor
The LT®8613 is a compact, high efficiency, high speed n
Wide Input Voltage Range: 3.4V to 42V
synchronous monolithic step-down switching regulator n
Ultralow Quiescent Current Burst Mode® Operation:
that consumes only 3µA of quiescent current. Top and
3μA IQ Regulating 12VIN to 3.3VOUT
bottom power switches are included with all necessary
Output Ripple < 10mVP-P
circuitry to minimize the need for external components. n
High Efficiency Synchronous Operation:
The built-in current sense amplifier with monitor and
95% Efficiency at 3A, 5VOUT from 12VIN
control pins allows accurate input or output current
94% Efficiency at 3A, 3.3VOUT from 12VIN
regulation and limiting. Low ripple Burst Mode operation n
Fast Minimum Switch-On Time: 40ns
enables high efficiency down to very low output currents n
Low Dropout Under All Conditions: 250mV at 3A
while keeping the output ripple below 10mVP-P. A SYNC n
Allows Use Of Small Inductors
pin allows synchronization to an external clock. Internal n Low EMI compensation with peak current mode topology allows n Adjustable and Synchronizable: 200kHz to 2.2MHz the use of small inductors and results in fast transient n Current Mode Operation response and good loop stability. The EN/UV pin has an n Accurate 1V Enable Pin Threshold accurate 1V threshold and can be used to program VIN n Internal Compensation undervoltage lockout or to shut down the LT8613 reduc- n Output Soft-Start and Tracking ing the input supply current to 1µA. A capacitor on the n Small Thermally Enhanced 3mm × 6mm 28-Lead TR/SS pin programs the output voltage ramp rate during QFN Package start-up. The PG flag signals when VOUT is within ±9% of the programmed output voltage as wel as fault conditions.
applicaTions
The LT8613 is available in a small 28-lead 3mm × 6mm n QFN package with exposed pad for low thermal resistance. Automotive and Industrial Supplies n General Purpose Step-Down L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective n CCCV Power Supplies owners.
Typical applicaTion Efficiency at 5V 5V Step-Down Converter with 6A Output Current Limit OUT
