Datasheet LTC6240, LTC6241, LTC6242 (Analog Devices) - 3

HerstellerAnalog Devices
BeschreibungSingle 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp
Seiten / Seite32 / 3 — ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. …
Dateiformat / GrößePDF / 435 Kb
DokumentenspracheEnglisch

ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. SPECIFIED TEMPERATURE RANGE

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE

Modelllinie für dieses Datenblatt

Textversion des Dokuments

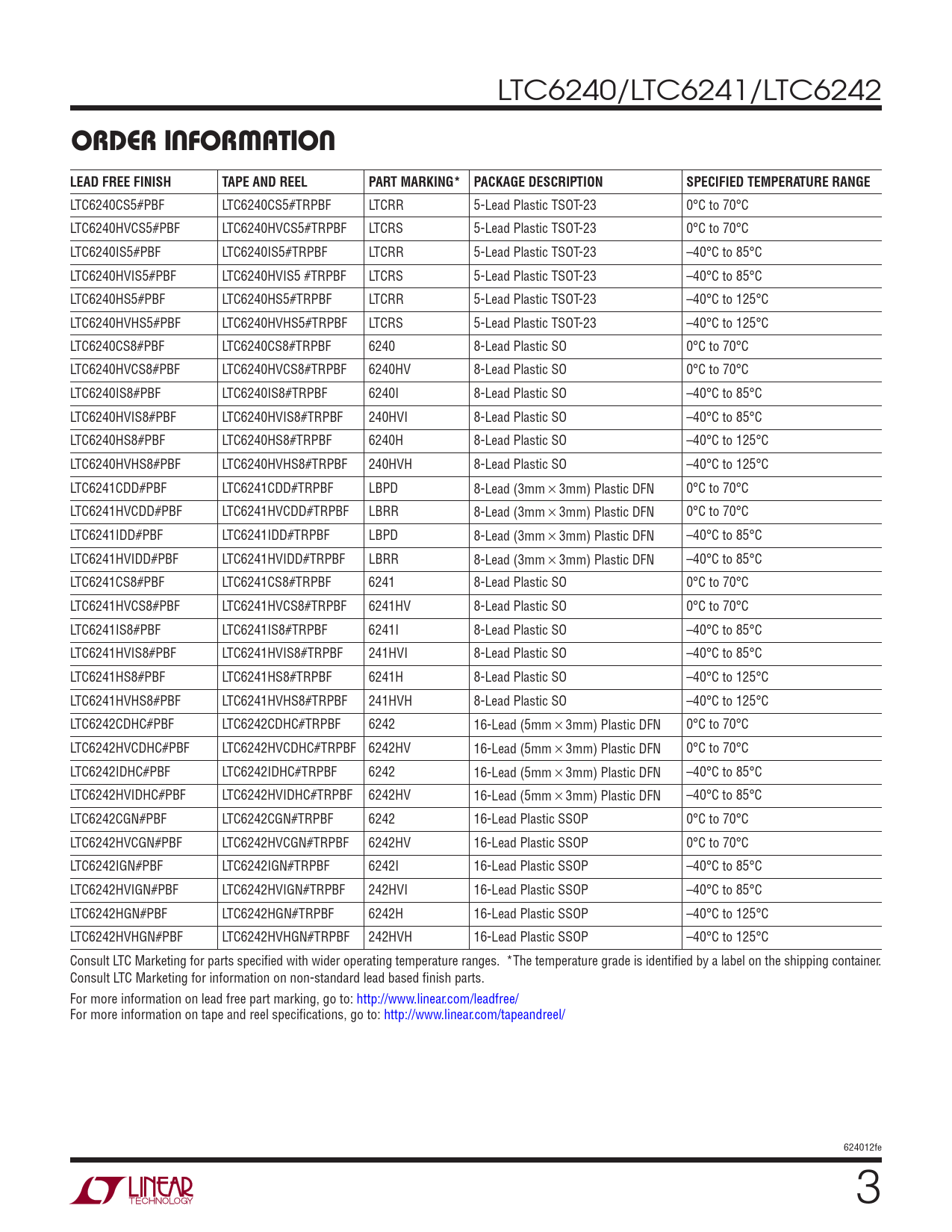

LTC6240/LTC6241/LTC6242
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6240CS5#PBF LTC6240CS5#TRPBF LTCRR 5-Lead Plastic TSOT-23 0°C to 70°C LTC6240HVCS5#PBF LTC6240HVCS5#TRPBF LTCRS 5-Lead Plastic TSOT-23 0°C to 70°C LTC6240IS5#PBF LTC6240IS5#TRPBF LTCRR 5-Lead Plastic TSOT-23 –40°C to 85°C LTC6240HVIS5#PBF LTC6240HVIS5 #TRPBF LTCRS 5-Lead Plastic TSOT-23 –40°C to 85°C LTC6240HS5#PBF LTC6240HS5#TRPBF LTCRR 5-Lead Plastic TSOT-23 –40°C to 125°C LTC6240HVHS5#PBF LTC6240HVHS5#TRPBF LTCRS 5-Lead Plastic TSOT-23 –40°C to 125°C LTC6240CS8#PBF LTC6240CS8#TRPBF 6240 8-Lead Plastic SO 0°C to 70°C LTC6240HVCS8#PBF LTC6240HVCS8#TRPBF 6240HV 8-Lead Plastic SO 0°C to 70°C LTC6240IS8#PBF LTC6240IS8#TRPBF 6240I 8-Lead Plastic SO –40°C to 85°C LTC6240HVIS8#PBF LTC6240HVIS8#TRPBF 240HVI 8-Lead Plastic SO –40°C to 85°C LTC6240HS8#PBF LTC6240HS8#TRPBF 6240H 8-Lead Plastic SO –40°C to 125°C LTC6240HVHS8#PBF LTC6240HVHS8#TRPBF 240HVH 8-Lead Plastic SO –40°C to 125°C LTC6241CDD#PBF LTC6241CDD#TRPBF LBPD 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC6241HVCDD#PBF LTC6241HVCDD#TRPBF LBRR 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC6241IDD#PBF LTC6241IDD#TRPBF LBPD 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC6241HVIDD#PBF LTC6241HVIDD#TRPBF LBRR 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC6241CS8#PBF LTC6241CS8#TRPBF 6241 8-Lead Plastic SO 0°C to 70°C LTC6241HVCS8#PBF LTC6241HVCS8#TRPBF 6241HV 8-Lead Plastic SO 0°C to 70°C LTC6241IS8#PBF LTC6241IS8#TRPBF 6241I 8-Lead Plastic SO –40°C to 85°C LTC6241HVIS8#PBF LTC6241HVIS8#TRPBF 241HVI 8-Lead Plastic SO –40°C to 85°C LTC6241HS8#PBF LTC6241HS8#TRPBF 6241H 8-Lead Plastic SO –40°C to 125°C LTC6241HVHS8#PBF LTC6241HVHS8#TRPBF 241HVH 8-Lead Plastic SO –40°C to 125°C LTC6242CDHC#PBF LTC6242CDHC#TRPBF 6242 16-Lead (5mm × 3mm) Plastic DFN 0°C to 70°C LTC6242HVCDHC#PBF LTC6242HVCDHC#TRPBF 6242HV 16-Lead (5mm × 3mm) Plastic DFN 0°C to 70°C LTC6242IDHC#PBF LTC6242IDHC#TRPBF 6242 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C LTC6242HVIDHC#PBF LTC6242HVIDHC#TRPBF 6242HV 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C LTC6242CGN#PBF LTC6242CGN#TRPBF 6242 16-Lead Plastic SSOP 0°C to 70°C LTC6242HVCGN#PBF LTC6242HVCGN#TRPBF 6242HV 16-Lead Plastic SSOP 0°C to 70°C LTC6242IGN#PBF LTC6242IGN#TRPBF 6242I 16-Lead Plastic SSOP –40°C to 85°C LTC6242HVIGN#PBF LTC6242HVIGN#TRPBF 242HVI 16-Lead Plastic SSOP –40°C to 85°C LTC6242HGN#PBF LTC6242HGN#TRPBF 6242H 16-Lead Plastic SSOP –40°C to 125°C LTC6242HVHGN#PBF LTC6242HVHGN#TRPBF 242HVH 16-Lead Plastic SSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 624012fe 3
