Isolated Energy Metering Chipset for Polyphase Shunt Meters Data Sheet ADE7978 /ADE7933/ ADE7932/ ADE7923 FEATURES Flexible I2C, SPI, and HSDC serial interfaces Enables shunt current sensors in polyphase energy meters Safety and regulatory approvals Immune to magnetic tampering UL recognition Highly accurate; supports EN 50470-1, EN 50470-3, 5000 V rms for 1 minute per UL 1577 IEC 62053-21, IEC 62053-22, IEC 62053-23, ANSI C12.20, CSA Component Acceptance Notice 5A and IEEE 1459 standards IEC 61010-1: 300 V rms maximum working voltage Compatible with 3-phase, 3- or 4-wire (delta or wye) meters VDE certificate of conformity and other 3-phase services DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 Computes active, reactive, and apparent energy on each V = 846 V peak IORM phase and on the overall system Optional isolated (ADE7933/ ADE7932) or nonisolated Less than 0.2% error in active and reactive energy over (ADE7923) neutral a dynamic range of 2000 to 1 at TA = 25°C APPLICATIONS Less than 0.1% error in voltage rms over a dynamic range Shunt-based polyphase meters of 500 to 1 at TA = 25°C Power quality monitoring Less than 0.25% error in current rms over a dynamic range Solar inverters of 500 to 1 at TA = 25°C Process monitoring Power quality measurements including total harmonic Protective devices distortion (THD) Isolated sensor interfaces Single 3.3 V supply Industrial PLCs Operating temperature: −40°C to +85°C TYPICAL APPLICATION CIRCUIT PHASE PHASE PHASE ISOLATION NEUTRAL A B C BARRIER V1P 3.3V VM IM PHASE A ADE7932/ ADE7933 IP V2P GND GND ISO_A MCU V1P 3.3V VM IM PHASE B ADE7932/ ADE7933 E R IP C 3.3V 3.3V V2P FA R OLLE ADE7978 I2C/HSDC OR SPI EM GND GND TE TR ISO_B MCU ENERGY ON L IN METERING V1P 3.3V SYST IC IRQ0, IRQ1 OC R VM IGITA IC D IM PHASE C M ADE7932/ GND GND ADE7933 MCU MCU IP V2P GND GND ISO_C MCU V1P 3.3V NEUTRAL VM LINE IM ADE7923 (OPTIONAL, NONISOLATED) IP V2P LOAD
001
GNDMCU

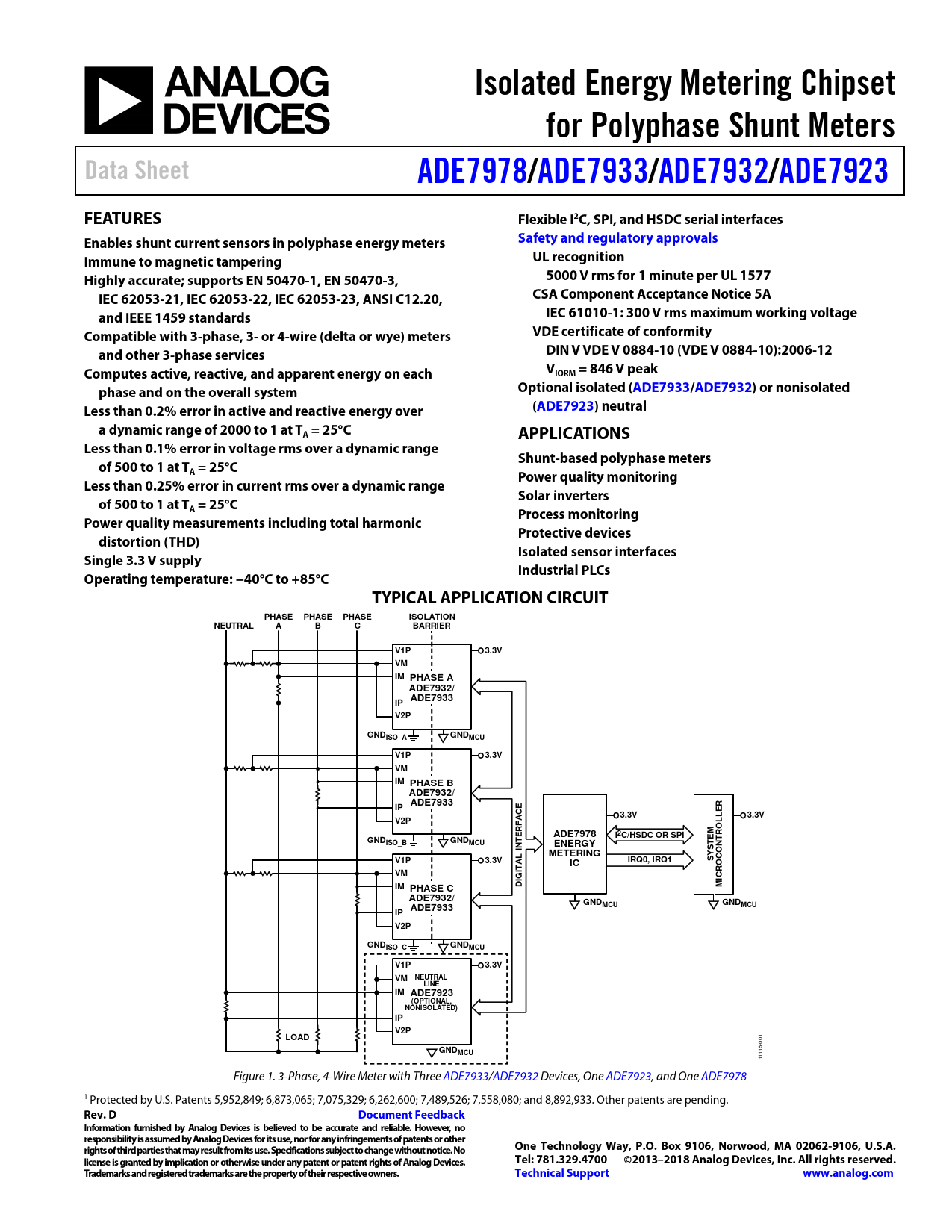

16- 111 Figure 1. 3-Phase, 4-Wire Meter with Three ADE7933/ADE7932 Devices, One ADE7923, and One ADE7978 1 Protected by U.S. Patents 5,952,849; 6,873,065; 7,075,329; 6,262,600; 7,489,526; 7,558,080; and 8,892,933. Other patents are pending.
