Datasheet LTC4000 (Analog Devices)

HerstellerAnalog Devices
BeschreibungHigh Voltage High Current Controller for Battery Charging and Power Management
Seiten / Seite40 / 1 — FeaTures. DescripTion. Complete High Performance Battery Charger When. …
Dateiformat / GrößePDF / 489 Kb
DokumentenspracheEnglisch

FeaTures. DescripTion. Complete High Performance Battery Charger When. Paired with a DC/DC Converter

Datasheet LTC4000 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LTC4000 High Voltage High Current Controller for Battery Charging and Power Management
FeaTures DescripTion
n
Complete High Performance Battery Charger When
The LTC®4000 is a high voltage, high performance controller
Paired with a DC/DC Converter
that converts many externally compensated DC/DC power n
Wide Input and Output Voltage Range: 3V to 60V
supplies into full-featured battery chargers. n
Input Ideal Diode for Low Loss Reverse Blocking
Features of the LTC4000’s battery charger include: accurate
and Load Sharing
(±0.25%) programmable float voltage, selectable timer or n
Output Ideal Diode for Low Loss PowerPath™ and
current termination, temperature qualified charging using
Load Sharing with the Battery
an NTC thermistor, automatic recharge, C/10 trickle charge n
Instant-On Operation with Heavily Discharged
for deeply discharged cells, bad battery detection and
Battery
status indicator outputs. The battery charger also includes n
Programmable Input and Charge Current:
precision current sensing that allows lower sense voltages
±1% Accuracy
for high current applications. n
±0.25% Accurate Programmable Float Voltage
n Programmable C/X or Timer Based Charge The LTC4000 supports intelligent PowerPath control. An Termination external PFET provides low loss reverse current protec- n NTC Input for Temperature Qualified Charging tion. Another external PFET provides low loss charging n 28-Lead 4mm × 5mm QFN or SSOP Packages or discharging of the battery. This second PFET also facilitates an instant-on feature that provides immediate downstream system power even when connected to a
applicaTions
heavily discharged or short faulted battery. n High Power Battery Charger Systems n The LTC4000 is available in a low profile 28-lead 4mm × High Performance Portable Instruments n 5mm QFN and SSOP packages. Industrial Battery Equipped Devices L n , LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and Notebook/Subnotebook Computers PowerPath is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.

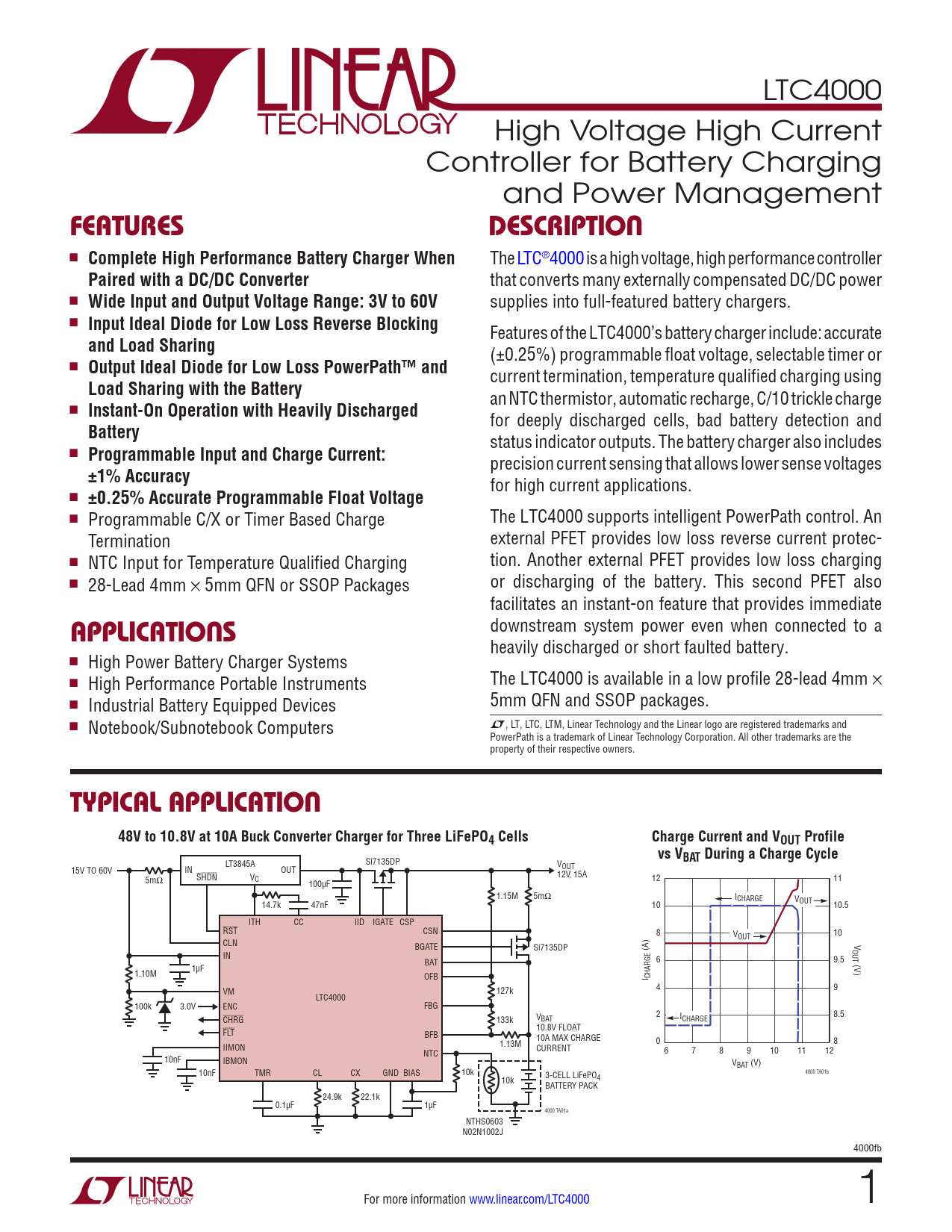

Typical applicaTion 48V to 10.8V at 10A Buck Converter Charger for Three LiFePO4 Cells Charge Current and VOUT Profile vs V
