Datasheet LTM4600HV (Analog Devices)

HerstellerAnalog Devices
Beschreibung10A, 28VIN High Efficiency DC/DC µModule
Seiten / Seite26 / 1 — FeaTures. DescripTion. Complete Switch Mode Power Supply. Wide Input …
Dateiformat / GrößePDF / 457 Kb
DokumentenspracheEnglisch

FeaTures. DescripTion. Complete Switch Mode Power Supply. Wide Input Voltage Range: 4.5V to 28V

Datasheet LTM4600HV Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

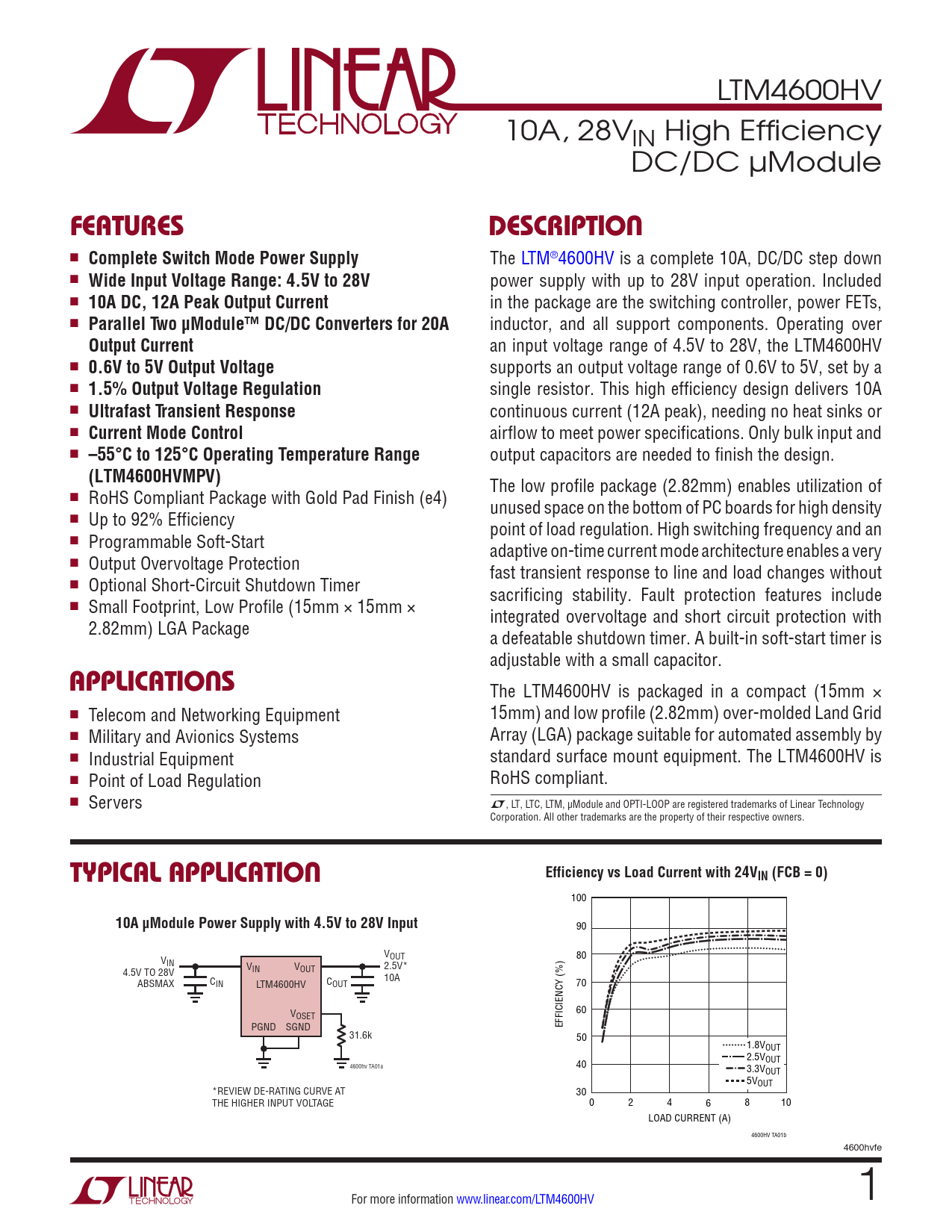

LTM4600HV 10A, 28VIN High Efficiency DC/DC µModule
FeaTures DescripTion
n
Complete Switch Mode Power Supply
The LTM®4600HV is a complete 10A, DC/DC step down n
Wide Input Voltage Range: 4.5V to 28V
power supply with up to 28V input operation. Included n
10A DC, 12A Peak Output Current
in the package are the switching controller, power FETs, n
Parallel Two µModule™ DC/DC Converters for 20A
inductor, and all support components. Operating over
Output Current
an input voltage range of 4.5V to 28V, the LTM4600HV n
0.6V to 5V Output Voltage
supports an output voltage range of 0.6V to 5V, set by a n
1.5% Output Voltage Regulation
single resistor. This high efficiency design delivers 10A n
Ultrafast Transient Response
continuous current (12A peak), needing no heat sinks or n
Current Mode Control
airflow to meet power specifications. Only bulk input and n
–55°C to 125°C Operating Temperature Range
output capacitors are needed to finish the design.
(LTM4600HVMPV)
The low profile package (2.82mm) enables utilization of n RoHS Compliant Package with Gold Pad Finish (e4) unused space on the bottom of PC boards for high density n Up to 92% Efficiency point of load regulation. High switching frequency and an n Programmable Soft-Start adaptive on-time current mode architecture enables a very n Output Overvoltage Protection fast transient response to line and load changes without n Optional Short-Circuit Shutdown Timer sacrificing stability. Fault protection features include n Small Footprint, Low Profile (15mm × 15mm × integrated overvoltage and short circuit protection with 2.82mm) LGA Package a defeatable shutdown timer. A built-in soft-start timer is adjustable with a small capacitor.
applicaTions
The LTM4600HV is packaged in a compact (15mm × n Telecom and Networking Equipment 15mm) and low profile (2.82mm) over-molded Land Grid n Military and Avionics Systems Array (LGA) package suitable for automated assembly by n Industrial Equipment standard surface mount equipment. The LTM4600HV is n Point of Load Regulation RoHS compliant. n Servers L, LT, LTC, LTM, µModule and OPTI-LOOP are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Efficiency vs Load Current with 24V Typical applicaTion IN (FCB = 0)
100
10A µModule Power Supply with 4.5V to 28V Input
90 VOUT 80 VIN VIN VOUT 4.5V TO 28V 2.5V* C ABSMAX 10A IN LTM4600HV COUT 70 60 VOSET EFFICIENCY (%) PGND SGND 31.6k 50 1.8VOUT 2.5V 4600hv TA01a 40 OUT 3.3VOUT 5VOUT *REVIEW DE-RATING CURVE AT 30 THE HIGHER INPUT VOLTAGE 0 2 4 6 8 10 LOAD CURRENT (A) 4600HV TA01b 4600hvfe For more information www.linear.com/LTM4600HV 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
