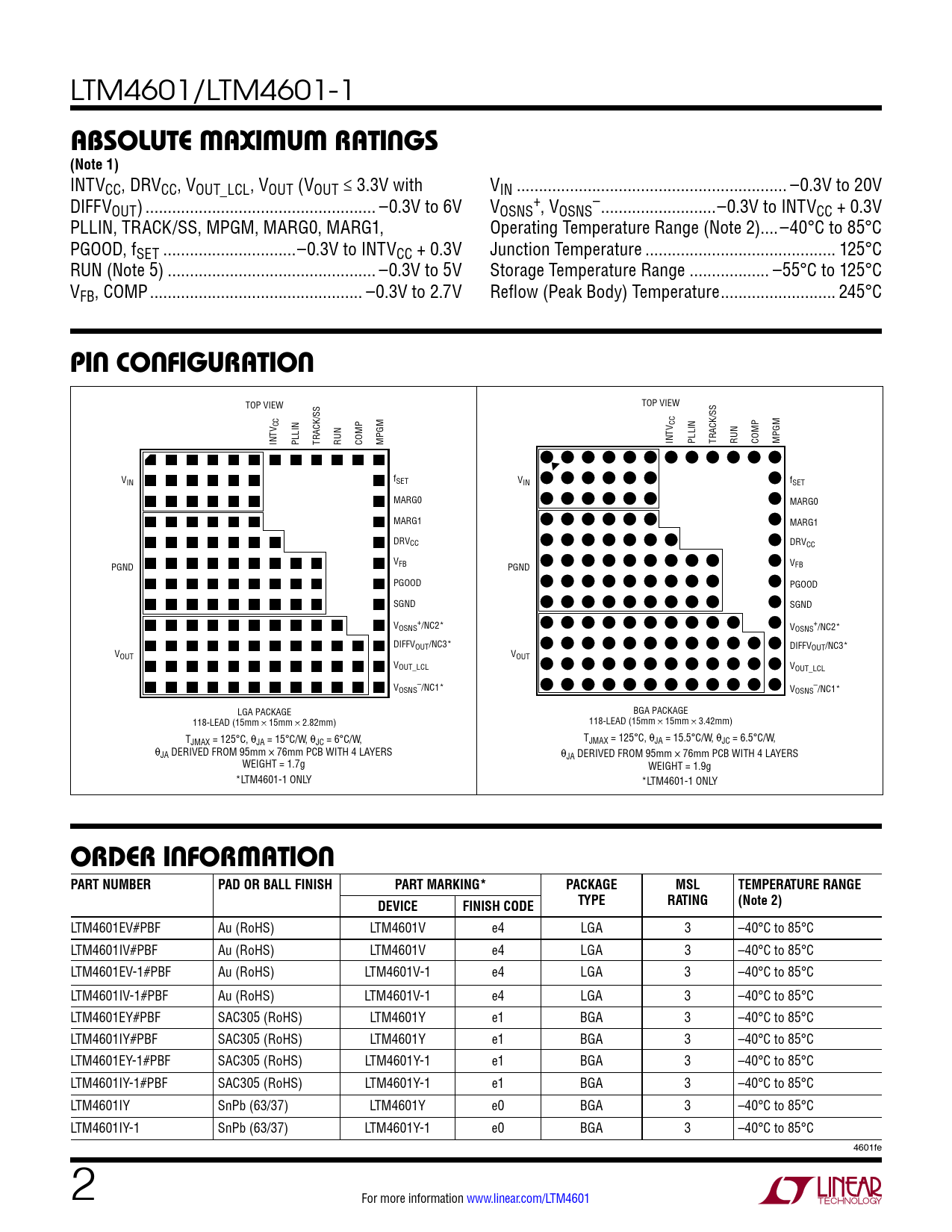

LTM4601/LTM4601-1
absoluTe MaxiMuM raTings (Note 1)
INTVCC, DRVCC, VOUT_LCL, VOUT (VOUT ≤ 3.3V with VIN ... –0.3V to 20V DIFFV + – OUT) .. –0.3V to 6V VOSNS , VOSNS ..–0.3V to INTVCC + 0.3V PLLIN, TRACK/SS, MPGM, MARG0, MARG1, Operating Temperature Range (Note 2)..–40°C to 85°C PGOOD, fSET ..–0.3V to INTVCC + 0.3V Junction Temperature ... 125°C RUN (Note 5) ... –0.3V to 5V Storage Temperature Range .. –55°C to 125°C VFB, COMP .. –0.3V to 2.7V Reflow (Peak Body) Temperature .. 245°C
pin conFiguraTion
TOP VIEW TOP VIEW CC CC INTV PLLIN TRACK/SS RUN COMP MPGM INTV PLLIN TRACK/SS RUN COMP MPGM VIN fSET VIN fSET MARG0 MARG0 MARG1 MARG1 DRVCC DRVCC VFB PGND VFB PGND PGOOD PGOOD SGND SGND V + OSNS /NC2* V + OSNS /NC2* DIFFVOUT/NC3* DIFFVOUT/NC3* VOUT VOUT VOUT_LCL VOUT_LCL V – OSNS /NC1* V – OSNS /NC1* LGA PACKAGE BGA PACKAGE 118-LEAD (15mm × 15mm × 2.82mm) 118-LEAD (15mm × 15mm × 3.42mm) TJMAX = 125°C, θJA = 15°C/W, θJC = 6°C/W, TJMAX = 125°C, θJA = 15.5°C/W, θJC = 6.5°C/W, θJA DERIVED FROM 95mm × 76mm PCB WITH 4 LAYERS θJA DERIVED FROM 95mm × 76mm PCB WITH 4 LAYERS WEIGHT = 1.7g WEIGHT = 1.9g *LTM4601-1 ONLY *LTM4601-1 ONLY
orDer inForMaTion PART NUMBER PAD OR BALL FINISH PART MARKING* PACKAGE MSL TEMPERATURE RANGE TYPE RATING (Note 2) DEVICE FINISH CODE
LTM4601EV#PBF Au (RoHS) LTM4601V e4 LGA 3 –40°C to 85°C LTM4601IV#PBF Au (RoHS) LTM4601V e4 LGA 3 –40°C to 85°C LTM4601EV-1#PBF Au (RoHS) LTM4601V-1 e4 LGA 3 –40°C to 85°C LTM4601IV-1#PBF Au (RoHS) LTM4601V-1 e4 LGA 3 –40°C to 85°C LTM4601EY#PBF SAC305 (RoHS) LTM4601Y e1 BGA 3 –40°C to 85°C LTM4601IY#PBF SAC305 (RoHS) LTM4601Y e1 BGA 3 –40°C to 85°C LTM4601EY-1#PBF SAC305 (RoHS) LTM4601Y-1 e1 BGA 3 –40°C to 85°C LTM4601IY-1#PBF SAC305 (RoHS) LTM4601Y-1 e1 BGA 3 –40°C to 85°C LTM4601IY SnPb (63/37) LTM4601Y e0 BGA 3 –40°C to 85°C LTM4601IY-1 SnPb (63/37) LTM4601Y-1 e0 BGA 3 –40°C to 85°C 4601fe 2 For more information www.linear.com/LTM4601 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Package Photo Related Parts
