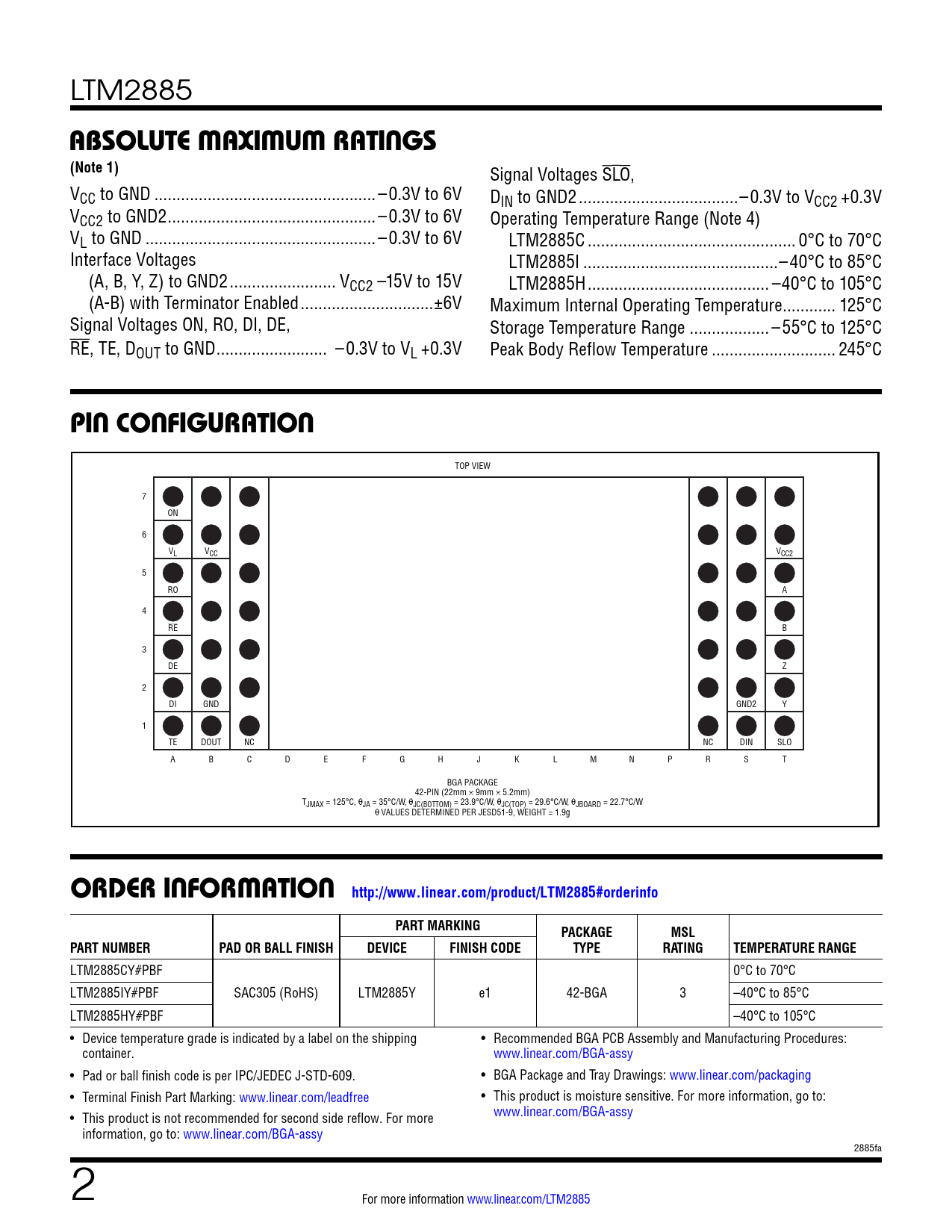

LTM2885
ABSOLUTE MAXIMUM RATINGS (Note 1)
Signal Voltages SLO, VCC to GND ..–0.3V to 6V DIN to GND2 ..–0.3V to VCC2 +0.3V VCC2 to GND2 ...–0.3V to 6V Operating Temperature Range (Note 4) VL to GND ..–0.3V to 6V LTM2885C ... 0°C to 70°C Interface Voltages LTM2885I ..–40°C to 85°C (A, B, Y, Z) to GND2 .. VCC2 –15V to 15V LTM2885H ... –40°C to 105°C (A-B) with Terminator Enabled ..±6V Maximum Internal Operating Temperature .. 125°C Signal Voltages ON, RO, DI, DE, Storage Temperature Range .. –55°C to 125°C RE, TE, DOUT to GND ... –0.3V to VL +0.3V Peak Body Reflow Temperature .. 245°C
PIN CONFIGURATION
TOP VIEW 7 ON 6 VL VCC VCC2 5 RO A 4 RE B 3 DE Z 2 DI GND GND2 Y 1 TE DOUT NC NC DIN SLO A B C D E F G H J K L M N P R S T BGA PACKAGE 42-PIN (22mm × 9mm × 5.2mm) TJMAX = 125°C, θJA = 35°C/W, θJC(BOTTOM) = 23.9°C/W, θJC(TOP) = 29.6°C/W, θJBOARD = 22.7°C/W θ VALUES DETERMINED PER JESD51-9, WEIGHT = 1.9g
ORDER INFORMATION http://www.linear.com/product/LTM2885#orderinfo PART MARKING PACKAGE MSL PART NUMBER PAD OR BALL FINISH DEVICE FINISH CODE TYPE RATING TEMPERATURE RANGE
LTM2885CY#PBF 0°C to 70°C LTM2885IY#PBF SAC305 (RoHS) LTM2885Y e1 42-BGA 3 –40°C to 85°C LTM2885HY#PBF –40°C to 105°C • Device temperature grade is indicated by a label on the shipping • Recommended BGA PCB Assembly and Manufacturing Procedures: container. www.linear.com/BGA-assy • Pad or ball finish code is per IPC/JEDEC J-STD-609. • BGA Package and Tray Drawings: www.linear.com/packaging • Terminal Finish Part Marking: www.linear.com/leadfree • This product is moisture sensitive. For more information, go to: • This product is not recommended for second side reflow. For more www.linear.com/BGA-assy information, go to: www.linear.com/BGA-assy 2885fa 2 For more information www.linear.com/LTM2885 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Switching Characteristics Isolation Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Functional Table Applications Information Typical Application Related Parts
