Architectural
The fast-access register file concept contains 32 x 8-bit general-purpose working regis-
Overview
ters with a single clock cycle access time. This means that during one single clock cycle, one ALU (Arithmetic Logic Unit) operation is executed. Two operands are output from the register file, the operation is executed, and the result is stored back in the register file – in one clock cycle. Two of the 32 registers can be used as a 16-bit pointer for indirect memory access. This pointer is called the Z-pointer and can address the register file and the Flash program memory.

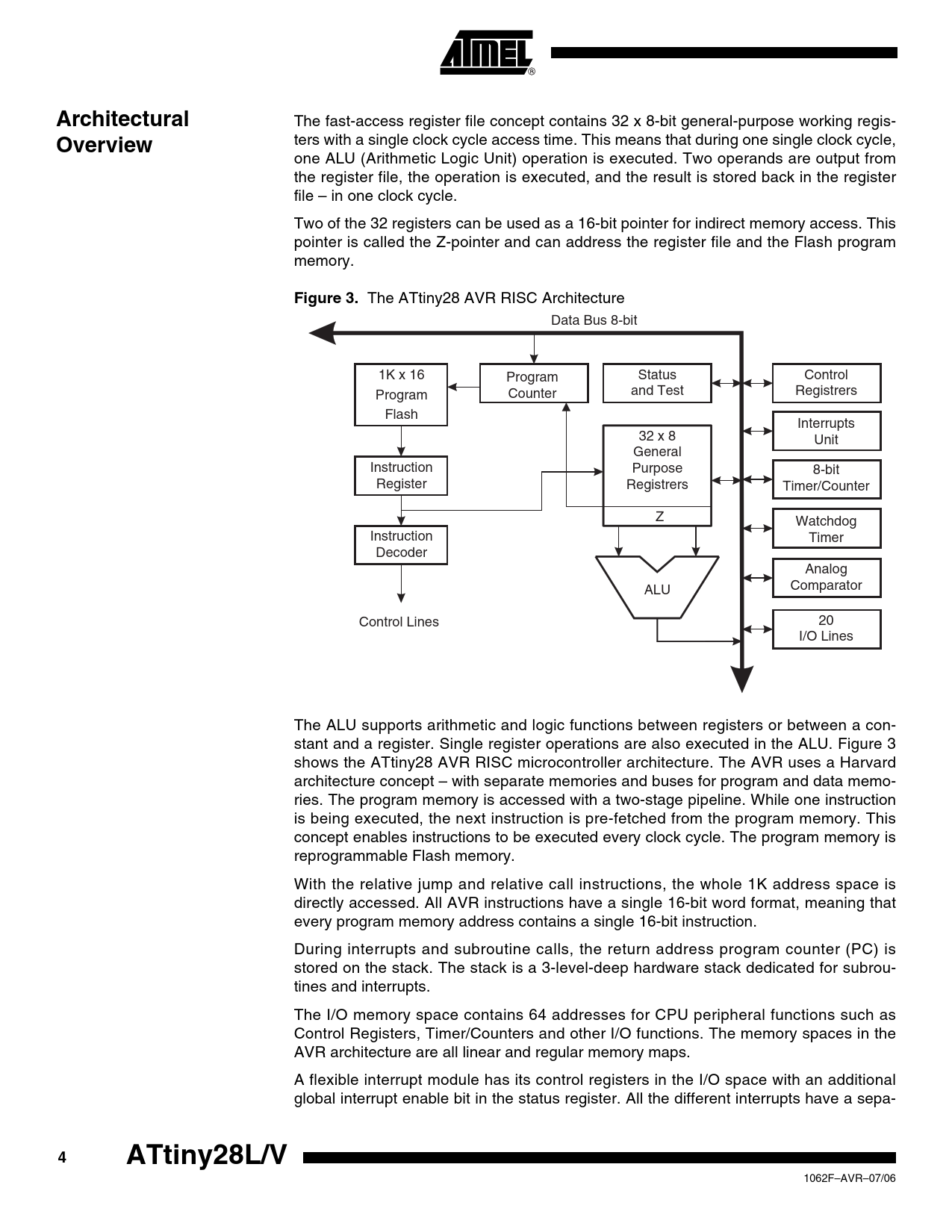

Figure 3.
The ATtiny28 AVR RISC Architecture Data Bus 8-bit 1K x 16 Program Status Control Program Counter and Test Registrers Flash Interrupts 32 x 8 Unit General Instruction Purpose 8-bit Register Registrers Timer/Counter Z Watchdog Instruction Timer Decoder Analog ALU Comparator Control Lines 20 I/O Lines The ALU supports arithmetic and logic functions between registers or between a con- stant and a register. Single register operations are also executed in the ALU. Figure 3 shows the ATtiny28 AVR RISC microcontroller architecture. The AVR uses a Harvard architecture concept – with separate memories and buses for program and data memo- ries. The program memory is accessed with a two-stage pipeline. While one instruction is being executed, the next instruction is pre-fetched from the program memory. This concept enables instructions to be executed every clock cycle. The program memory is reprogrammable Flash memory. With the relative jump and relative call instructions, the whole 1K address space is directly accessed. All AVR instructions have a single 16-bit word format, meaning that every program memory address contains a single 16-bit instruction. During interrupts and subroutine calls, the return address program counter (PC) is stored on the stack. The stack is a 3-level-deep hardware stack dedicated for subrou- tines and interrupts. The I/O memory space contains 64 addresses for CPU peripheral functions such as Control Registers, Timer/Counters and other I/O functions. The memory spaces in the AVR architecture are all linear and regular memory maps. A flexible interrupt module has its control registers in the I/O space with an additional global interrupt enable bit in the status register. All the different interrupts have a sepa-
4 ATtiny28L/V
