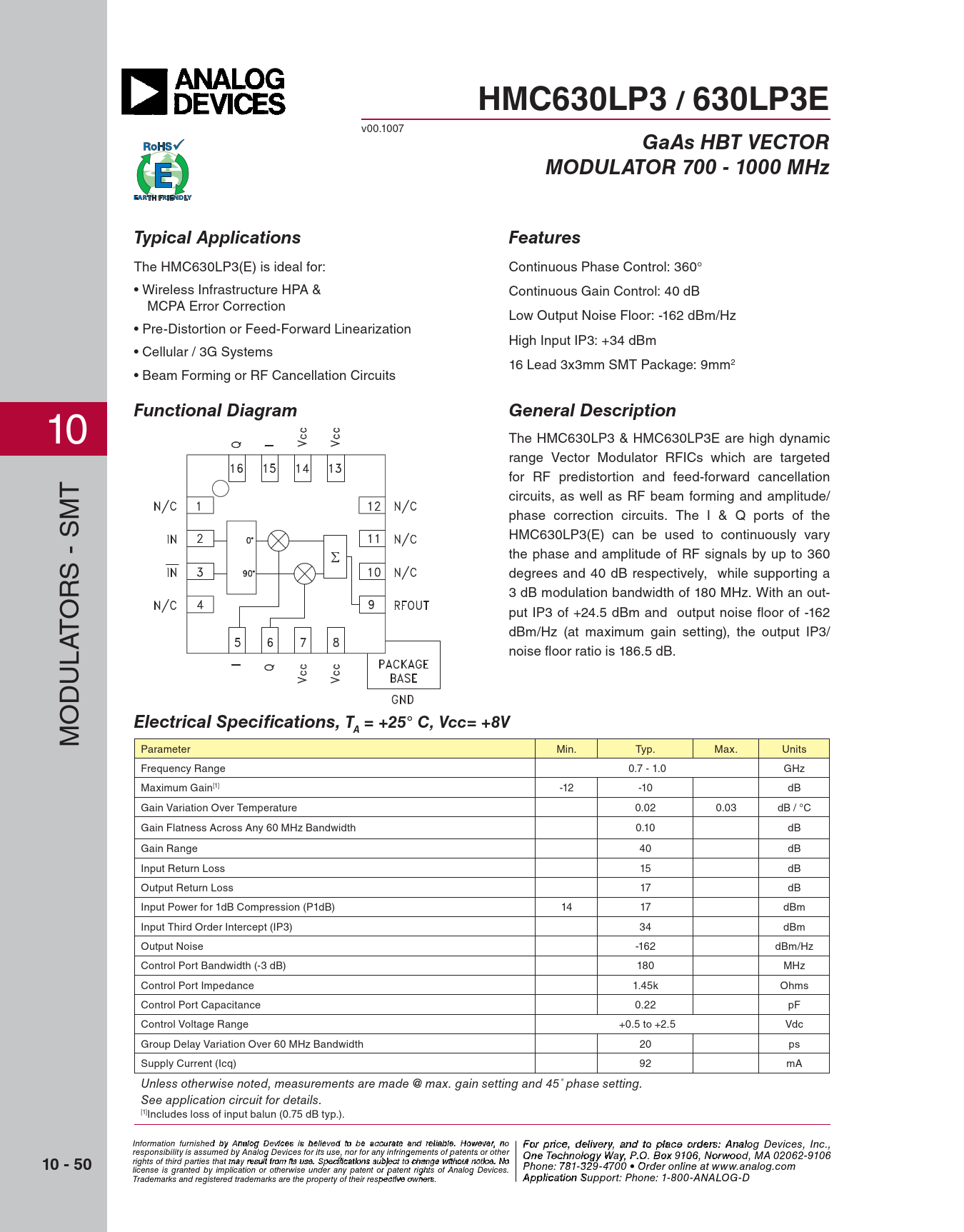

HMC630LP3 / 630LP3E
v00.1007
GaAs HBT VECTOR MODULATOR 700 - 1000 MHz Typical Applications Features
The HMC630LP3(E) is ideal for: Continuous Phase Control: 360° • Wireless Infrastructure HPA & Continuous Gain Control: 40 dB MCPA Error Correction Low Output Noise Floor: -162 dBm/Hz • Pre-Distortion or Feed-Forward Linearization High Input IP3: +34 dBm • Cellular / 3G Systems 16 Lead 3x3mm SMT Package: 9mm2 • Beam Forming or RF Cancellation Circuits
Functional Diagram General Description
10 The HMC630LP3 & HMC630LP3E are high dynamic range Vector Modulator RFICs which are targeted for RF predistortion and feed-forward cancellation T circuits, as well as RF beam forming and amplitude/ phase correction circuits. The I & Q ports of the HMC630LP3(E) can be used to continuously vary - SM the phase and amplitude of RF signals by up to 360 S degrees and 40 dB respectively, while supporting a R 3 dB modulation bandwidth of 180 MHz. With an out- O put IP3 of +24.5 dBm and output noise fl oor of -162 T A dBm/Hz (at maximum gain setting), the output IP3/ L noise fl oor ratio is 186.5 dB. U
Electrical Specifi cations, T = +25° C, Vcc= +8V
MOD
A
Parameter Min. Typ. Max. Units Frequency Range 0.7 - 1.0 GHz Maximum Gain[1] -12 -10 dB Gain Variation Over Temperature 0.02 0.03 dB / °C Gain Flatness Across Any 60 MHz Bandwidth 0.10 dB Gain Range 40 dB Input Return Loss 15 dB Output Return Loss 17 dB Input Power for 1dB Compression (P1dB) 14 17 dBm Input Third Order Intercept (IP3) 34 dBm Output Noise -162 dBm/Hz Control Port Bandwidth (-3 dB) 180 MHz Control Port Impedance 1.45k Ohms Control Port Capacitance 0.22 pF Control Voltage Range +0.5 to +2.5 Vdc Group Delay Variation Over 60 MHz Bandwidth 20 ps Supply Current (Icq) 92 mA Unless otherwise noted, measurements are made @ max. gain setting and 45˚ phase setting. See application circuit for details. [1]Includes loss of input balun (0.75 dB typ.). Information furnishe F d o b r pr y Analic o e g , D d evi e ce li s v i e s brey li , a eve n d t d to p o be acc luac rat e o e an r d d rele ia rs ble , p . Hole we a ves r, e n c o ont Fo ac r p t H rice i, tt dit ele M iveryic , r a owa nd to ve C plac o e r o p rdo e r r at s: i Ao n n al:og Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
