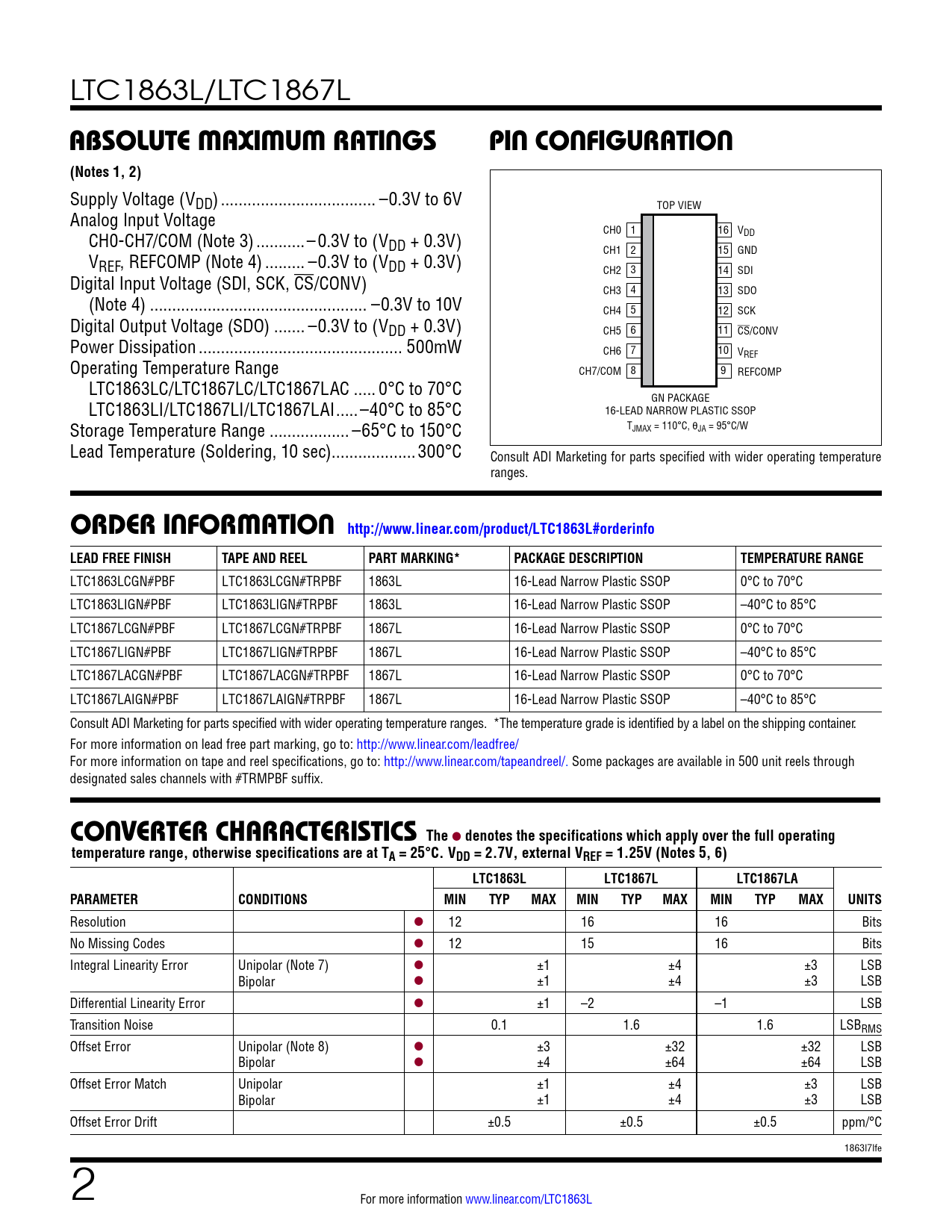

LTC1863L/LTC1867L
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (VDD) ... –0.3V to 6V TOP VIEW Analog Input Voltage CH0-CH7/COM (Note 3) ...–0.3V to (V CH0 1 16 VDD DD + 0.3V) CH1 2 V 15 GND REF, REFCOMP (Note 4) ... –0.3V to (VDD + 0.3V) CH2 3 14 SDI Digital Input Voltage (SDI, SCK, CS/CONV) CH3 4 13 SDO (Note 4) ... –0.3V to 10V CH4 5 12 SCK Digital Output Voltage (SDO) ... –0.3V to (VDD + 0.3V) CH5 6 11 CS/CONV Power Dissipation .. 500mW CH6 7 10 VREF Operating Temperature Range CH7/COM 8 9 REFCOMP LTC1863LC/LTC1867LC/LTC1867LAC ... 0°C to 70°C LTC1863LI/LTC1867LI/LTC1867LAI ...–40°C to 85°C GN PACKAGE 16-LEAD NARROW PLASTIC SSOP Storage Temperature Range .. –65°C to 150°C

TJMAX = 110°C, θJA = 95°C/W Lead Temperature (Soldering, 10 sec) ...300°C Consult ADI Marketing for parts specified with wider operating temperature ranges.
ORDER INFORMATION http://www.linear.com/product/LTC1863L#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1863LCGN#PBF LTC1863LCGN#TRPBF 1863L 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1863LIGN#PBF LTC1863LIGN#TRPBF 1863L 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867LCGN#PBF LTC1867LCGN#TRPBF 1867L 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1867LIGN#PBF LTC1867LIGN#TRPBF 1867L 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867LACGN#PBF LTC1867LACGN#TRPBF 1867L 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1867LAIGN#PBF LTC1867LAIGN#TRPBF 1867L 16-Lead Narrow Plastic SSOP –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
CONVERTER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VDD = 2.7V, external VREF = 1.25V (Notes 5, 6) LTC1863L LTC1867L LTC1867LA PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
Resolution l 12 16 16 Bits No Missing Codes l 12 15 16 Bits Integral Linearity Error Unipolar (Note 7) l ±1 ±4 ±3 LSB Bipolar l ±1 ±4 ±3 LSB Differential Linearity Error l ±1 –2 –1 LSB Transition Noise 0.1 1.6 1.6 LSBRMS Offset Error Unipolar (Note 8) l ±3 ±32 ±32 LSB Bipolar l ±4 ±64 ±64 LSB Offset Error Match Unipolar ±1 ±4 ±3 LSB Bipolar ±1 ±4 ±3 LSB Offset Error Drift ±0.5 ±0.5 ±0.5 ppm/°C 1863l7lfe 2 For more information www.linear.com/LTC1863L Document Outline Description Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Pin Functions Package Description Related Parts
