Datasheet SMI-2P (Songle Relay) - 2

HerstellerSongle Relay
BeschreibungSubminature High Power Relay 5A
Seiten / Seite2 / 2 — SMI-2P. Series. SUBMINATURE. HIGH. POWER. RELAY. 5A. Safety. Approval. …
Dateiformat / GrößePDF / 3.7 Mb
DokumentenspracheEnglisch

SMI-2P. Series. SUBMINATURE. HIGH. POWER. RELAY. 5A. Safety. Approval. Ratings. R50056114. C. US. E167996. 5A. 250VAC. 5A. 240VAC. 1A/3A. 250VAC. inductive

SMI-2P Series SUBMINATURE HIGH POWER RELAY 5A Safety Approval Ratings R50056114 C US E167996 5A 250VAC 5A 240VAC 1A/3A 250VAC inductive

Modelllinie für dieses Datenblatt

SMI-2P (14FD)

Textversion des Dokuments

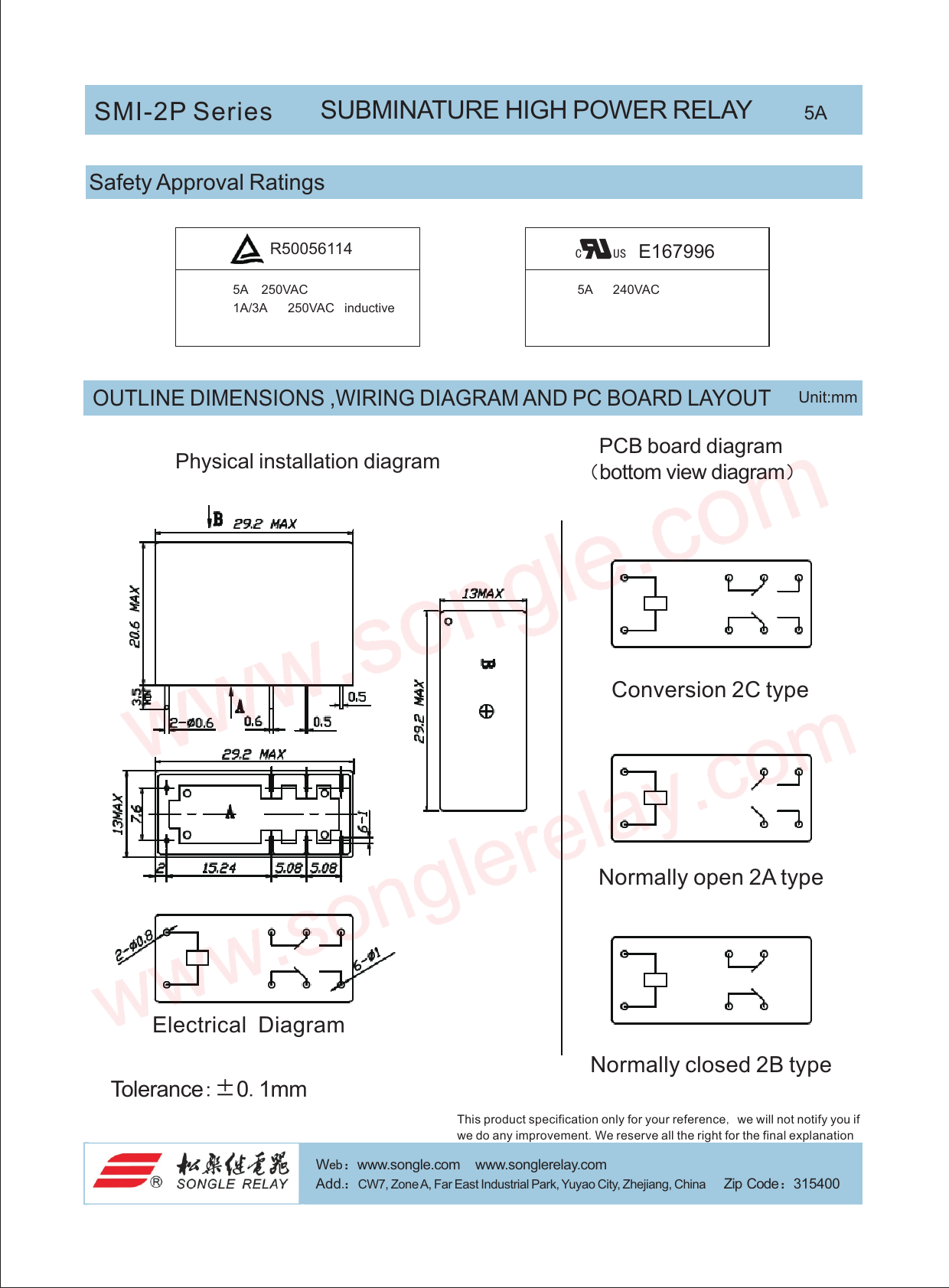

SMI-2P Series SUBMINATURE HIGH POWER RELAY 5A Safety Approval Ratings R50056114 C US E167996 5A 250VAC 5A 240VAC 1A/3A 250VAC inductive OUTLINE DIMENSIONS ,WIRING DIAGRAM AND PC BOARD LAYOUT Unit:mm PCB board diagram Physical installation diagram (bottom view diagram) Conversion 2C type Normally open 2A type Electrical Diagram Normally closed 2B type Tolerance:±0.1mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web:www.songle.com www.songlerelay.com Email:sale@songle.com Web:www.songle.com www.songlerelay.com Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code:315400 Add.:CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code:315400 Tel.: +86 574 62717777 62762658 62721968 a F x:+86 574 62721978 Document Outline 页 1 页 2
