Datasheet AD829 (Analog Devices) - 5

HerstellerAnalog Devices
BeschreibungHigh Speed, Low Noise Video Op Amp
Seiten / Seite11 / 5 — STANDARD. 5962-93129. MICROCIRCUIT DRAWING
Dateiformat / GrößePDF / 107 Kb
DokumentenspracheEnglisch

STANDARD. 5962-93129. MICROCIRCUIT DRAWING

STANDARD 5962-93129 MICROCIRCUIT DRAWING

Modelllinie für dieses Datenblatt

Textversion des Dokuments

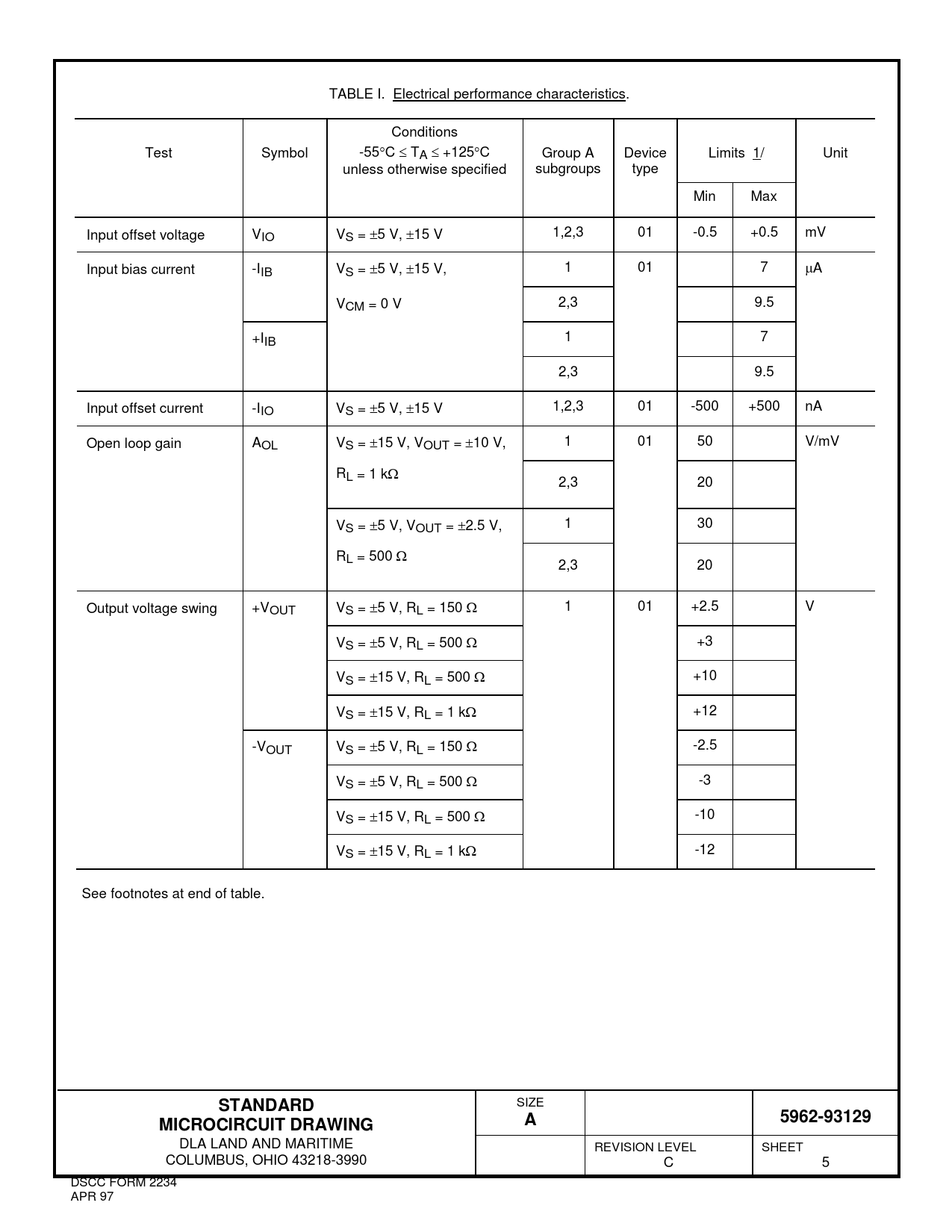

TABLE I. Electrical performance characteristics. Conditions Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits 1/ Unit unless otherwise specified subgroups type Min Max Input offset voltage VIO VS = ±5 V, ±15 V 1,2,3 01 -0.5 +0.5 mV Input bias current -IIB VS = ±5 V, ±15 V, 1 01 7 µA VCM = 0 V 2,3 9.5 +IIB 1 7 2,3 9.5 Input offset current -IIO VS = ±5 V, ±15 V 1,2,3 01 -500 +500 nA Open loop gain AOL VS = ±15 V, VOUT = ±10 V, 1 01 50 V/mV RL = 1 kΩ 2,3 20 VS = ±5 V, VOUT = ±2.5 V, 1 30 RL = 500 Ω 2,3 20 Output voltage swing +VOUT VS = ±5 V, RL = 150 Ω 1 01 +2.5 V VS = ±5 V, RL = 500 Ω +3 VS = ±15 V, RL = 500 Ω +10 VS = ±15 V, RL = 1 kΩ +12 -VOUT VS = ±5 V, RL = 150 Ω -2.5 VS = ±5 V, RL = 500 Ω -3 VS = ±15 V, RL = 500 Ω -10 VS = ±15 V, RL = 1 kΩ -12 See footnotes at end of table.
STANDARD
SIZE
5962-93129 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 C 5 DSCC FORM 2234 APR 97 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
