Datasheet AD811 (Analog Devices) - 3

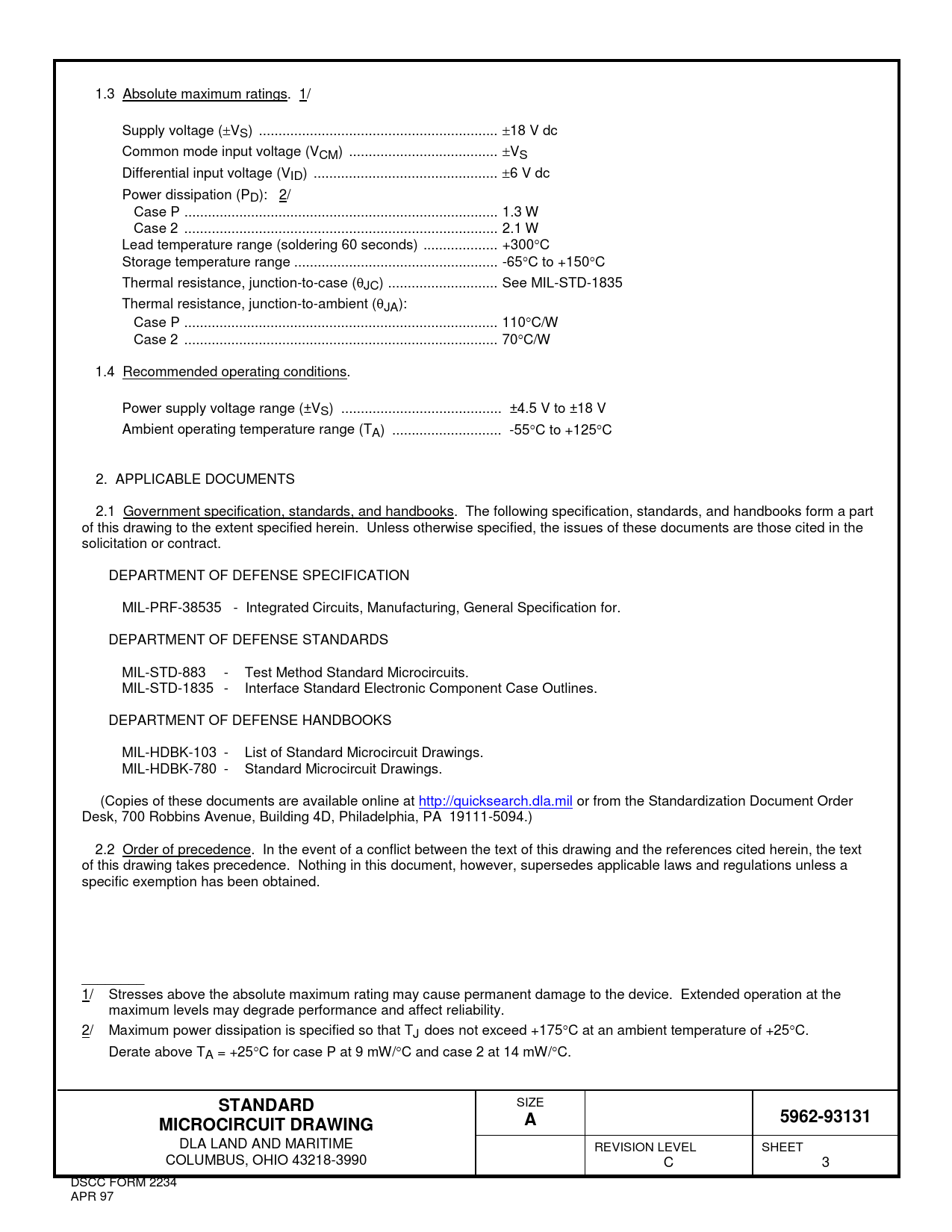

1.3 Absolute maximum ratings. 1/ Supply voltage (±VS) ... ±18 V dc Common mode input voltage (VCM) .. ±VS Differential input voltage (VID) ... ±6 V dc Power dissipation (PD): 2/ Case P .. 1.3 W Case 2 .. 2.1 W Lead temperature range (soldering 60 seconds) ... +300°C Storage temperature range .. -65°C to +150°C Thermal resistance, junction-to-case (θJC) .. See MIL-STD-1835 Thermal resistance, junction-to-ambient (θJA): Case P .. 110°C/W Case 2 .. 70°C/W 1.4 Recommended operating conditions. Power supply voltage range (±VS) ... ±4.5 V to ±18 V Ambient operating temperature range (TA) .. -55°C to +125°C 2. APPLICABLE DOCUMENTS 2.1 Government specification, standards, and handbooks. The following specification, standards, and handbooks form a part of this drawing to the extent specified herein. Unless otherwise specified, the issues of these documents are those cited in the solicitation or contract. DEPARTMENT OF DEFENSE SPECIFICATION MIL-PRF-38535 - Integrated Circuits, Manufacturing, General Specification for. DEPARTMENT OF DEFENSE STANDARDS MIL-STD-883 - Test Method Standard Microcircuits. MIL-STD-1835 - Interface Standard Electronic Component Case Outlines. DEPARTMENT OF DEFENSE HANDBOOKS MIL-HDBK-103 - List of Standard Microcircuit Drawings. MIL-HDBK-780 - Standard Microcircuit Drawings. (Copies of these documents are available online at http://quicksearch.dla.mil or from the Standardization Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094.) 2.2 Order of precedence. In the event of a conflict between the text of this drawing and the references cited herein, the text of this drawing takes precedence. Nothing in this document, however, supersedes applicable laws and regulations unless a specific exemption has been obtained. ________ 1/ Stresses above the absolute maximum rating may cause permanent damage to the device. Extended operation at the maximum levels may degrade performance and affect reliability. 2/ Maximum power dissipation is specified so that TJ does not exceed +175°C at an ambient temperature of +25°C. Derate above TA = +25°C for case P at 9 mW/°C and case 2 at 14 mW/°C.
STANDARD
SIZE
5962-93131 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 C 3 DSCC FORM 2234 APR 97 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
