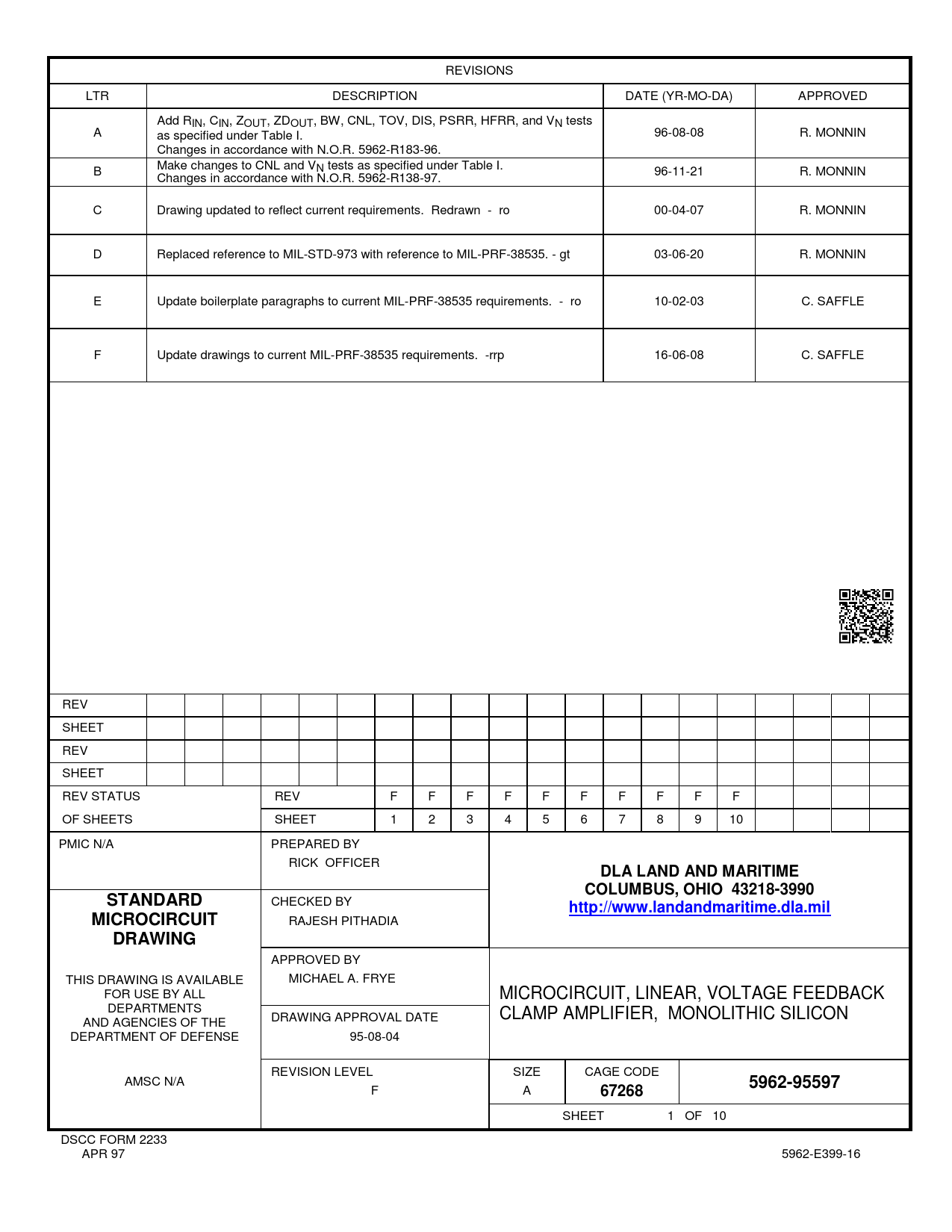

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-95597

Datasheet AD8036 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED Add RIN, CIN, ZOUT, ZDOUT, BW, CNL, TOV, DIS, PSRR, HFRR, and VN tests A as specified under Table I. 96-08-08 R. MONNIN Changes in accordance with N.O.R. 5962-R183-96. Make changes to CNL and V B N tests as specified under Table I. 96-11-21 R. MONNIN Changes in accordance with N.O.R. 5962-R138-97. C Drawing updated to reflect current requirements. Redrawn - ro 00-04-07 R. MONNIN D Replaced reference to MIL-STD-973 with reference to MIL-PRF-38535. - gt 03-06-20 R. MONNIN E Update boilerplate paragraphs to current MIL-PRF-38535 requirements. - ro 10-02-03 C. SAFFLE F Update drawings to current MIL-PRF-38535 requirements. -rrp 16-06-08 C. SAFFLE REV SHEET REV SHEET REV STATUS REV F F F F F F F F F F OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 PMIC N/A PREPARED BY RICK OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
RAJESH PITHADIA
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE MICHAEL A. FRYE FOR USE BY ALL MICROCIRCUIT, LINEAR, VOLTAGE FEEDBACK DEPARTMENTS DRAWING APPROVAL DATE CLAMP AMPLIFIER, MONOLITHIC SILICON AND AGENCIES OF THE DEPARTMENT OF DEFENSE 95-08-04 REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-95597
F A
67268
SHEET 1 OF 10 DSCC FORM 2233 APR 97 5962-E399-16 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
