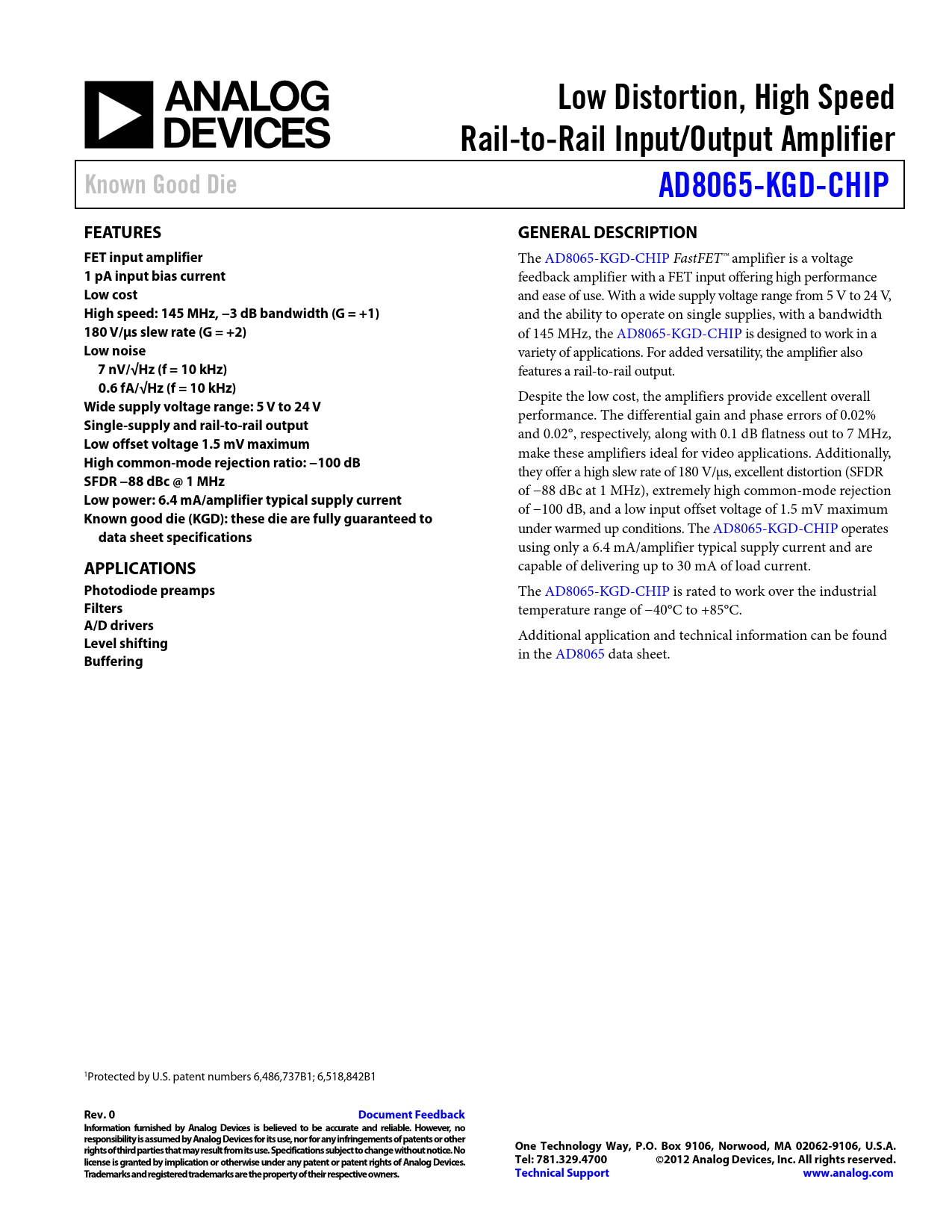

Low Distortion, High Speed Rail-to-Rail Input/Output Amplifier Known Good Die AD8065-KGD-CHIP FEATURES GENERAL DESCRIPTION FET input amplifier
The AD8065-KGD-CHIP FastFET™ amplifier is a voltage
1 pA input bias current
feedback amplifier with a FET input offering high performance
Low cost
and ease of use. With a wide supply voltage range from 5 V to 24 V,
High speed: 145 MHz, −3 dB bandwidth (G = +1)
and the ability to operate on single supplies, with a bandwidth
180 V/µs slew rate (G = +2)
of 145 MHz, the AD8065-KGD-CHIP is designed to work in a
Low noise
variety of applications. For added versatility, the amplifier also
7 nV/√Hz (f = 10 kHz)
features a rail-to-rail output.
0.6 fA/√Hz (f = 10 kHz)
Despite the low cost, the amplifiers provide excellent overal
Wide supply voltage range: 5 V to 24 V
performance. The differential gain and phase errors of 0.02%
Single-supply and rail-to-rail output
and 0.02°, respectively, along with 0.1 dB flatness out to 7 MHz,
Low offset voltage 1.5 mV maximum
make these amplifiers ideal for video applications. Additionally,
High common-mode rejection ratio: −100 dB
they offer a high slew rate of 180 V/µs, excellent distortion (SFDR
SFDR −88 dBc @ 1 MHz
of −88 dBc at 1 MHz), extremely high common-mode rejection
Low power: 6.4 mA/amplifier typical supply current
of −100 dB, and a low input offset voltage of 1.5 mV maximum
Known good die (KGD): these die are fully guaranteed to
under warmed up conditions. The AD8065-KGD-CHIP operates
data sheet specifications
using only a 6.4 mA/amplifier typical supply current and are
APPLICATIONS
capable of delivering up to 30 mA of load current.
Photodiode preamps
The AD8065-KGD-CHIP is rated to work over the industrial
Filters
temperature range of −40°C to +85°C.
A/D drivers
Additional application and technical information can be found
Level shifting Buffering
in the AD8065 data sheet. 1Protected by U.S. patent numbers 6,486,737B1; 6,518,842B1
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2012 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
