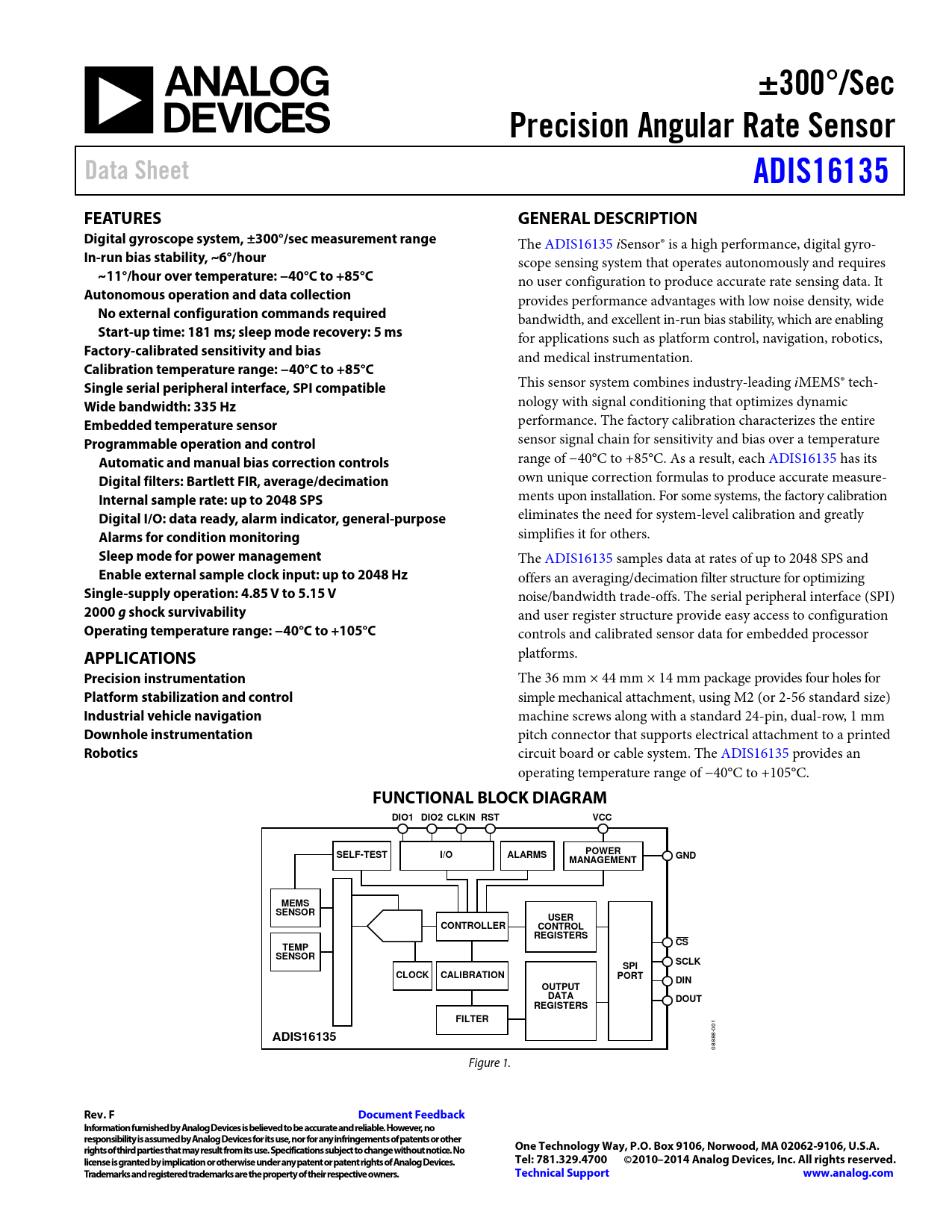

±300°/Sec Precision Angular Rate Sensor Data Sheet ADIS16135 FEATURES GENERAL DESCRIPTION Digital gyroscope system, ±300°/sec measurement range
The ADIS16135 iSensor® is a high performance, digital gyro-
In-run bias stability, ~6°/hour
scope sensing system that operates autonomously and requires
~11°/hour over temperature: −40°C to +85°C
no user configuration to produce accurate rate sensing data. It
Autonomous operation and data collection
provides performance advantages with low noise density, wide
No external configuration commands required
bandwidth, and excel ent in-run bias stability, which are enabling
Start-up time: 181 ms; sleep mode recovery: 5 ms
for applications such as platform control, navigation, robotics,
Factory-calibrated sensitivity and bias
and medical instrumentation.
Calibration temperature range: −40°C to +85°C Single serial peripheral interface, SPI compatible
This sensor system combines industry-leading iMEMS® tech-
Wide bandwidth: 335 Hz
nology with signal conditioning that optimizes dynamic
Embedded temperature sensor
performance. The factory calibration characterizes the entire
Programmable operation and control
sensor signal chain for sensitivity and bias over a temperature
Automatic and manual bias correction controls
range of −40°C to +85°C. As a result, each ADIS16135 has its
Digital filters: Bartlett FIR, average/decimation
own unique correction formulas to produce accurate measure-
Internal sample rate: up to 2048 SPS
ments upon instal ation. For some systems, the factory calibration
Digital I/O: data ready, alarm indicator, general-purpose
eliminates the need for system-level calibration and greatly
Alarms for condition monitoring
simplifies it for others.
Sleep mode for power management
The ADIS16135 samples data at rates of up to 2048 SPS and
Enable external sample clock input: up to 2048 Hz
offers an averaging/decimation filter structure for optimizing
Single-supply operation: 4.85 V to 5.15 V
noise/bandwidth trade-offs. The serial peripheral interface (SPI)
2000 g shock survivability
and user register structure provide easy access to configuration
Operating temperature range: −40°C to +105°C
controls and calibrated sensor data for embedded processor
APPLICATIONS
platforms.
Precision instrumentation
The 36 mm × 44 mm × 14 mm package provides four holes for
Platform stabilization and control
simple mechanical attachment, using M2 (or 2-56 standard size)
Industrial vehicle navigation
machine screws along with a standard 24-pin, dual-row, 1 mm
Downhole instrumentation
pitch connector that supports electrical attachment to a printed
Robotics
circuit board or cable system. The ADIS16135 provides an operating temperature range of −40°C to +105°C.
FUNCTIONAL BLOCK DIAGRAM DIO1 DIO2 CLKIN RST VCC SELF-TEST I/O ALARMS POWER GND MANAGEMENT MEMS SENSOR USER CONTROLLER CONTROL REGISTERS CS TEMP SENSOR SCLK SPI CLOCK CALIBRATION PORT DIN OUTPUT DATA DOUT REGISTERS FILTER
001
ADIS16135
08888- Figure 1.
