ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). ELECTRICAL CHARACTERISTICS The
Modelllinie für dieses Datenblatt
Textversion des Dokuments

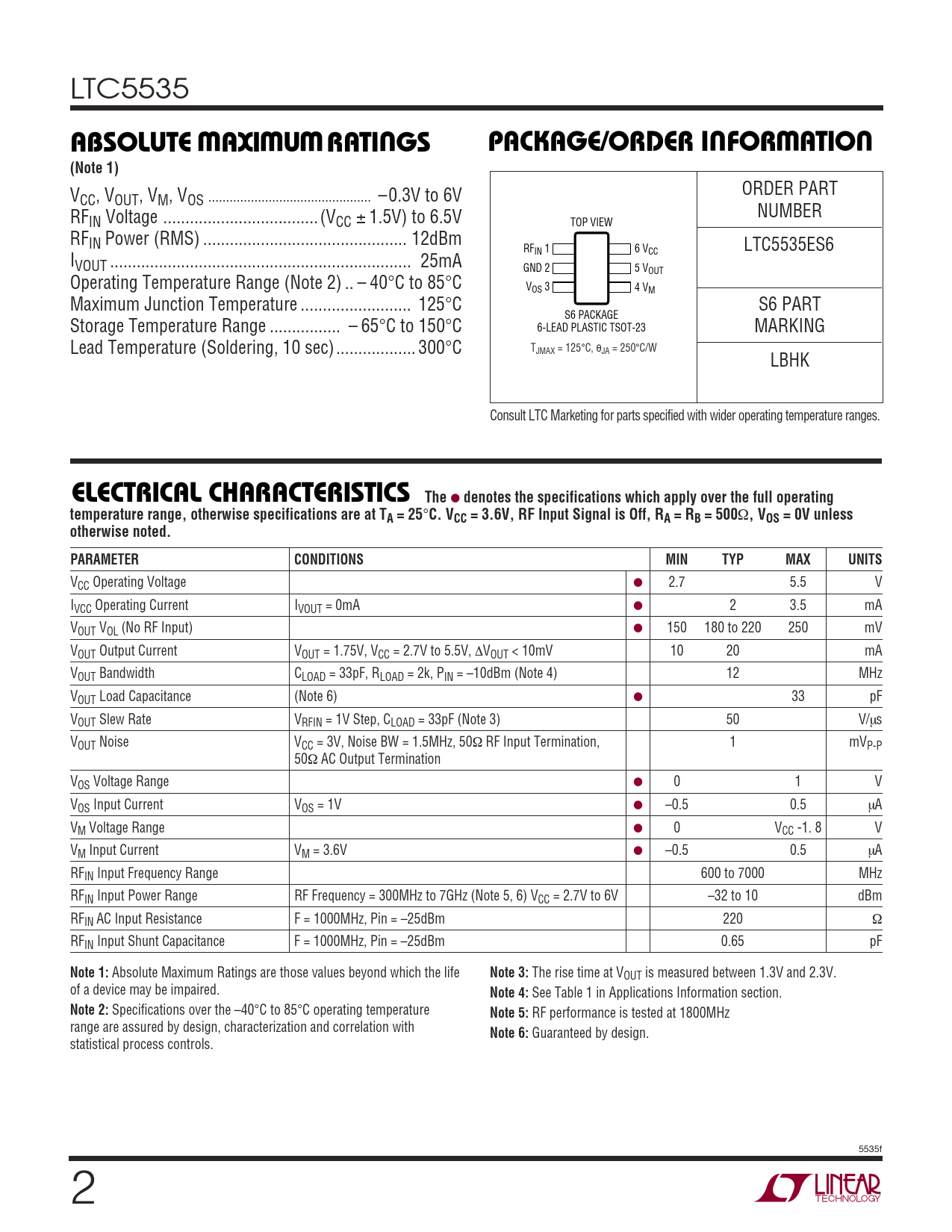

LTC5535
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
V ORDER PART CC, VOUT, VM, VOS .. –0.3V to 6V RF NUMBER IN Voltage ... (VCC ± 1.5V) to 6.5V TOP VIEW RFIN Power (RMS) .. 12dBm RF 6 V LTC5535ES6 IN 1 CC IVOUT .. 25mA GND 2 5 VOUT Operating Temperature Range (Note 2) .. – 40°C to 85°C V 4 V OS 3 M Maximum Junction Temperature ... 125°C S6 PART S6 PACKAGE Storage Temperature Range .. – 65°C to 150°C 6-LEAD PLASTIC TSOT-23 MARKING Lead Temperature (Soldering, 10 sec).. 300°C TJMAX = 125°C, θJA = 250°C/W LBHK Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.6V, RF Input Signal is Off, RA = RB = 500
Ω
, VOS = 0V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Operating Voltage ● 2.7 5.5 V IVCC Operating Current IVOUT = 0mA ● 2 3.5 mA VOUT VOL (No RF Input) ● 150 180 to 220 250 mV VOUT Output Current VOUT = 1.75V, VCC = 2.7V to 5.5V, ∆VOUT < 10mV 10 20 mA VOUT Bandwidth CLOAD = 33pF, RLOAD = 2k, PIN = –10dBm (Note 4) 12 MHz VOUT Load Capacitance (Note 6) ● 33 pF VOUT Slew Rate VRFIN = 1V Step, CLOAD = 33pF (Note 3) 50 V/µs VOUT Noise VCC = 3V, Noise BW = 1.5MHz, 50Ω RF Input Termination, 1 mVP-P 50Ω AC Output Termination VOS Voltage Range ● 0 1 V VOS Input Current VOS = 1V ● –0.5 0.5 µA VM Voltage Range ● 0 VCC -1. 8 V VM Input Current VM = 3.6V ● –0.5 0.5 µA RFIN Input Frequency Range 600 to 7000 MHz RFIN Input Power Range RF Frequency = 300MHz to 7GHz (Note 5, 6) VCC = 2.7V to 6V –32 to 10 dBm RFIN AC Input Resistance F = 1000MHz, Pin = –25dBm 220 Ω RFIN Input Shunt Capacitance F = 1000MHz, Pin = –25dBm 0.65 pF
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 3:
The rise time at VOUT is measured between 1.3V and 2.3V. of a device may be impaired.
Note 4:
See Table 1 in Applications Information section.
Note 2:
Specifications over the –40°C to 85°C operating temperature
Note 5:
RF performance is tested at 1800MHz range are assured by design, characterization and correlation with
Note 6:
Guaranteed by design. statistical process controls. 5535f 2
