Datasheet LTC5508 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 300MHz to 7GHz RF Power Detector with Buffered Output in SC70 Package |
| Seiten / Seite | 8 / 5 — TYPICAL PERFOR A CE CHARACTERISTICS. RFIN Input Impedance (Pin = 0dBm, … |
| Dateiformat / Größe | PDF / 264 Kb |
| Dokumentensprache | Englisch |

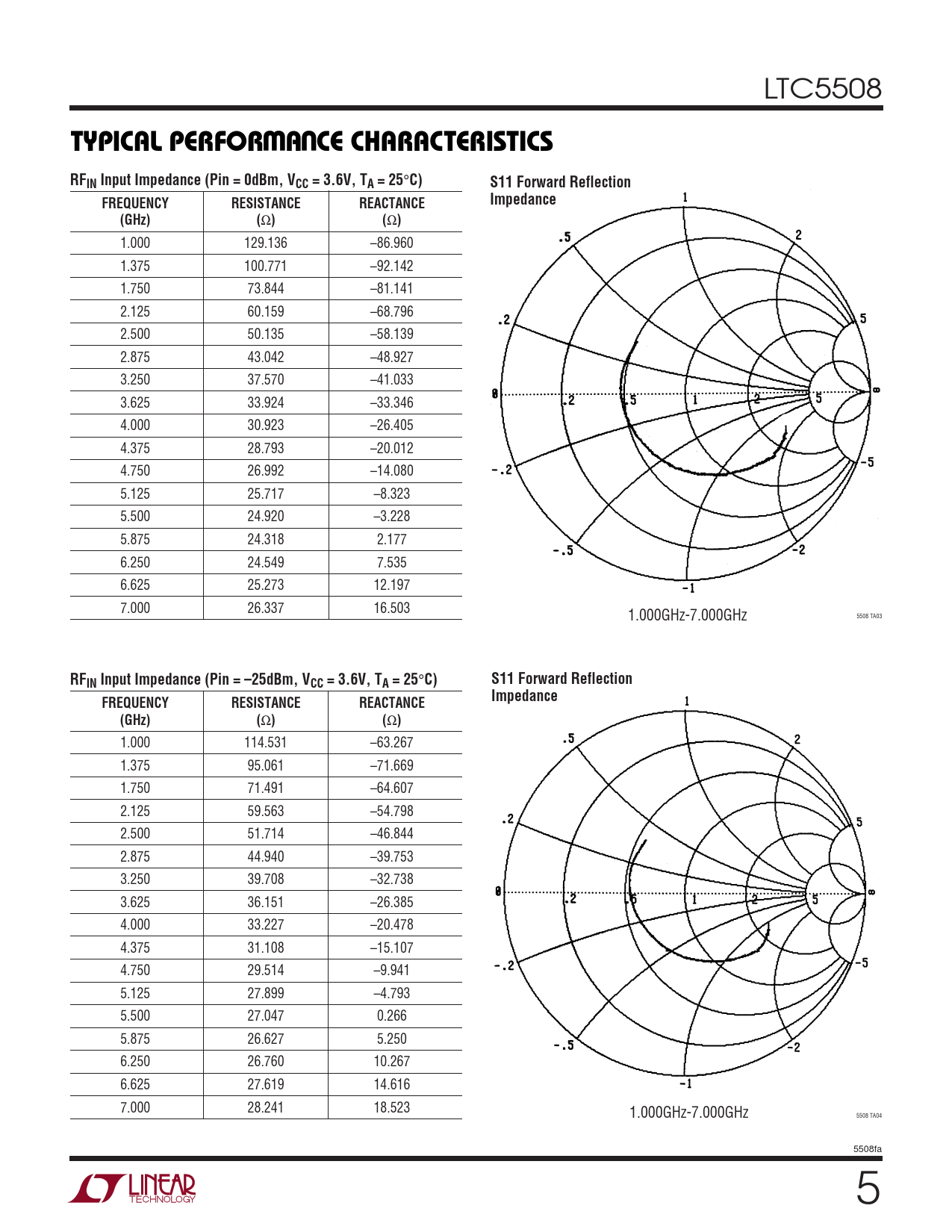

TYPICAL PERFOR A CE CHARACTERISTICS. RFIN Input Impedance (Pin = 0dBm, VCC = 3.6V, TA = 25
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC5508
W U TYPICAL PERFOR A CE CHARACTERISTICS RFIN Input Impedance (Pin = 0dBm, VCC = 3.6V, TA = 25
°
C) S11 Forward Reflection Impedance FREQUENCY RESISTANCE REACTANCE (GHz) (
Ω
) (
Ω
)
1.000 129.136 –86.960 1.375 100.771 –92.142 1.750 73.844 –81.141 2.125 60.159 –68.796 2.500 50.135 –58.139 2.875 43.042 –48.927 3.250 37.570 –41.033 3.625 33.924 –33.346 4.000 30.923 –26.405 4.375 28.793 –20.012 4.750 26.992 –14.080 5.125 25.717 –8.323 5.500 24.920 –3.228 5.875 24.318 2.177 6.250 24.549 7.535 6.625 25.273 12.197 7.000 26.337 16.503 1.000GHz-7.000GHz 5508 TA03
RF S11 Forward Reflection IN Input Impedance (Pin = –25dBm, VCC = 3.6V, TA = 25
°
C) Impedance FREQUENCY RESISTANCE REACTANCE (GHz) (
Ω
) (
Ω
)
1.000 114.531 –63.267 1.375 95.061 –71.669 1.750 71.491 –64.607 2.125 59.563 –54.798 2.500 51.714 –46.844 2.875 44.940 –39.753 3.250 39.708 –32.738 3.625 36.151 –26.385 4.000 33.227 –20.478 4.375 31.108 –15.107 4.750 29.514 –9.941 5.125 27.899 –4.793 5.500 27.047 0.266 5.875 26.627 5.250 6.250 26.760 10.267 6.625 27.619 14.616 7.000 28.241 18.523 1.000GHz-7.000GHz 5508 TA04 5508fa 5
