LTC4317

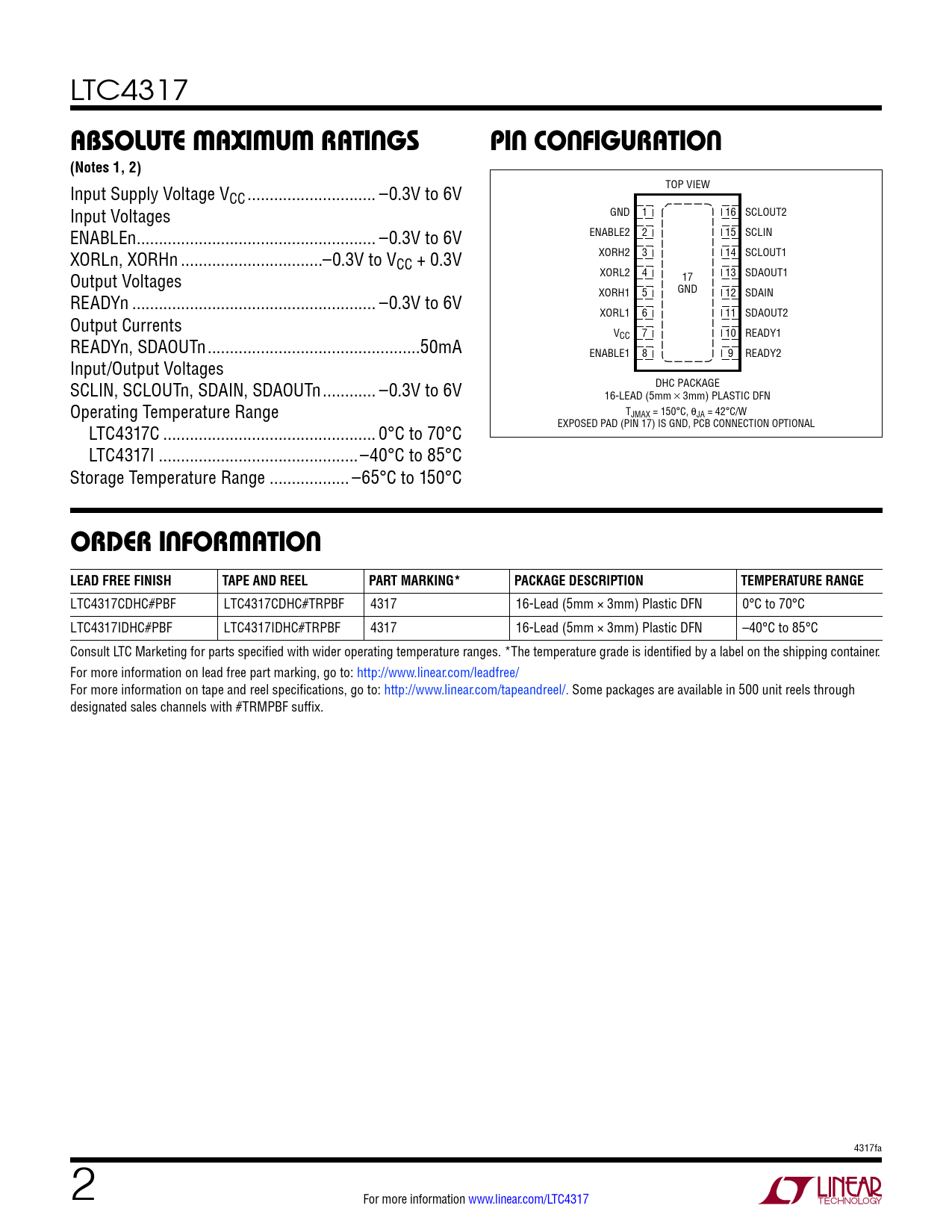

absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Input Supply Voltage V TOP VIEW CC ... –0.3V to 6V Input Voltages GND 1 16 SCLOUT2 ENABLEn .. –0.3V to 6V ENABLE2 2 15 SCLIN XORLn, XORHn ..–0.3V to V XORH2 3 14 SCLOUT1 CC + 0.3V Output Voltages XORL2 4 13 17 SDAOUT1 GND READYn ... –0.3V to 6V XORH1 5 12 SDAIN Output Currents XORL1 6 11 SDAOUT2 VCC 7 10 READY1 READYn, SDAOUTn ..50mA ENABLE1 8 9 READY2 Input/Output Voltages SCLIN, SCLOUTn, SDAIN, SDAOUTn .. –0.3V to 6V DHC PACKAGE 16-LEAD (5mm × 3mm) PLASTIC DFN Operating Temperature Range TJMAX = 150°C, θJA = 42°C/W LTC4317C .. 0°C to 70°C EXPOSED PAD (PIN 17) IS GND, PCB CONNECTION OPTIONAL LTC4317I ...–40°C to 85°C Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4317CDHC#PBF LTC4317CDHC#TRPBF 4317 16-Lead (5mm × 3mm) Plastic DFN 0°C to 70°C LTC4317IDHC#PBF LTC4317IDHC#TRPBF 4317 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 4317fa 2 For more information www.linear.com/LTC4317 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Applications Package Description Revision History Typical Application Related Parts
