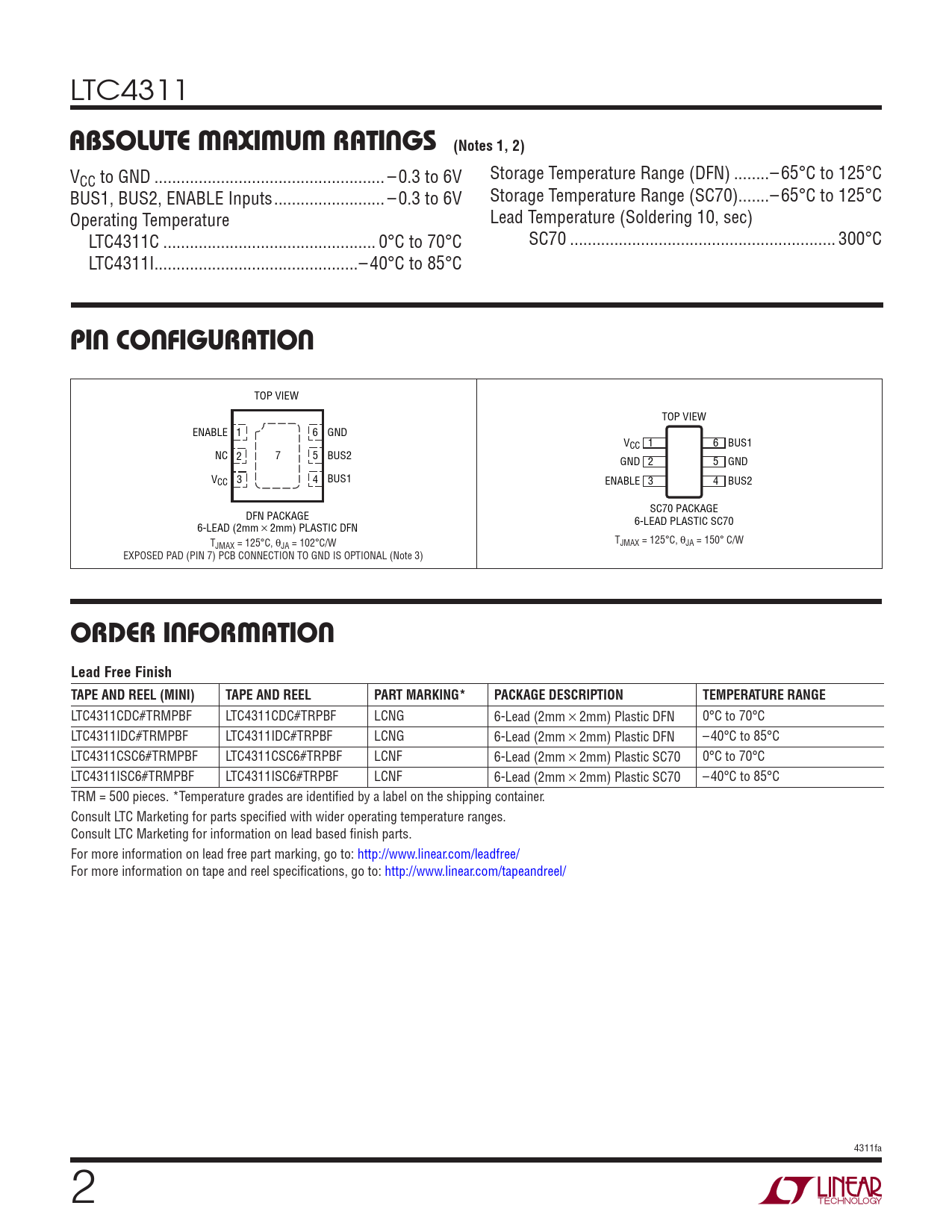

LTC4311
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
V Storage Temperature Range (DFN) ..– 65°C to 125°C CC to GND .. – 0.3 to 6V BUS1, BUS2, ENABLE Inputs ... – 0.3 to 6V Storage Temperature Range (SC70)...– 65°C to 125°C Operating Temperature Lead Temperature (Soldering 10, sec) LTC4311C .. 0°C to 70°C SC70 .. 300°C LTC4311I..– 40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW ENABLE 1 6 GND VCC 1 6 BUS1 NC 2 7 5 BUS2 GND 2 5 GND V 3 4 BUS1 CC ENABLE 3 4 BUS2 SC70 PACKAGE DFN PACKAGE 6-LEAD PLASTIC SC70 6-LEAD (2mm s 2mm) PLASTIC DFN T T JMAX = 125°C, θJA = 102°C/W JMAX = 125°C, θJA = 150° C/W EXPOSED PAD (PIN 7) PCB CONNECTION TO GND IS OPTIONAL (Note 3)
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4311CDC#TRMPBF LTC4311CDC#TRPBF LCNG 6-Lead (2mm × 2mm) Plastic DFN 0°C to 70°C LTC4311IDC#TRMPBF LTC4311IDC#TRPBF LCNG 6-Lead (2mm × 2mm) Plastic DFN –40°C to 85°C LTC4311CSC6#TRMPBF LTC4311CSC6#TRPBF LCNF 6-Lead (2mm × 2mm) Plastic SC70 0°C to 70°C LTC4311ISC6#TRMPBF LTC4311ISC6#TRPBF LCNF 6-Lead (2mm × 2mm) Plastic SC70 –40°C to 85°C TRM = 500 pieces. *Temperature grades are identifi ed by a label on the shipping container. Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 4311fa 2
