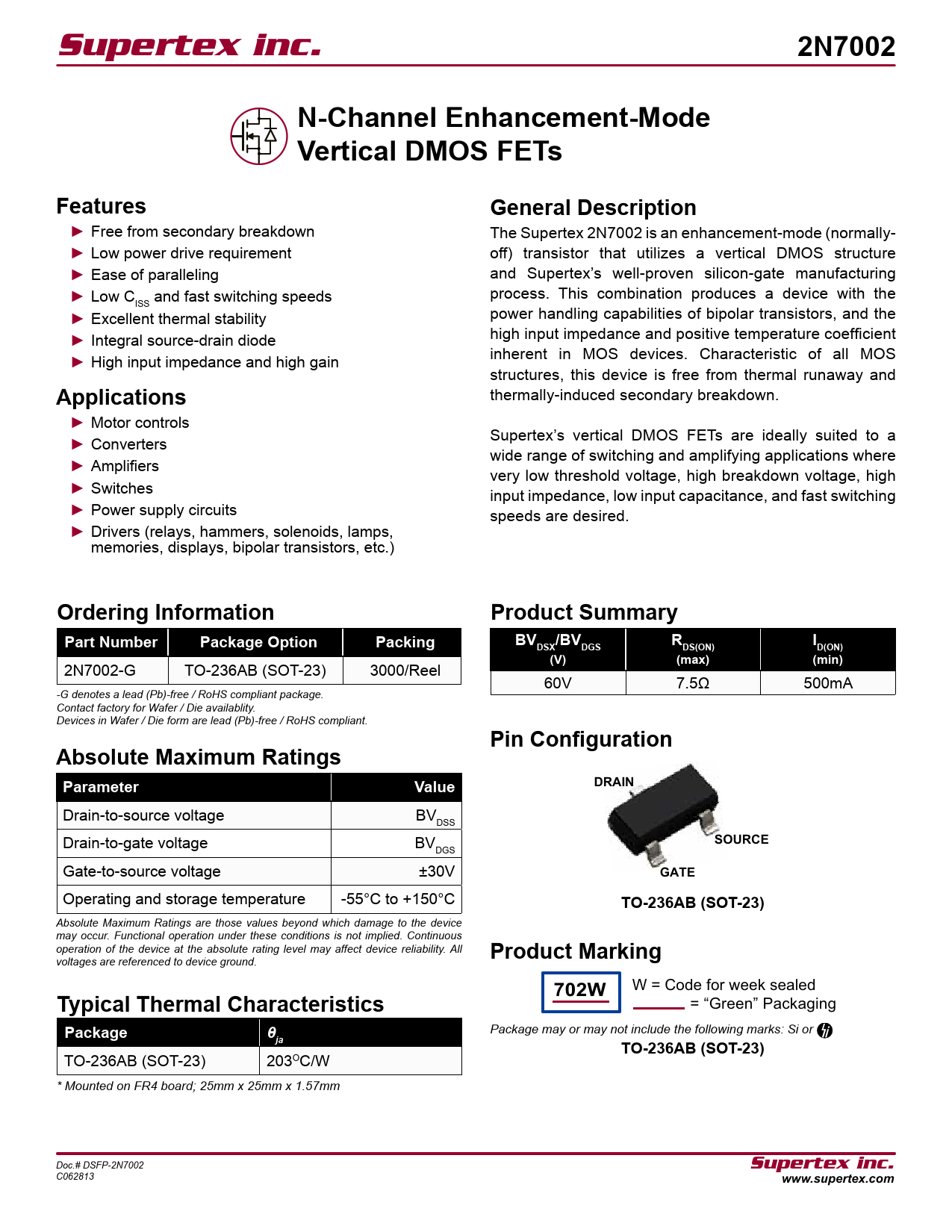

Supertex inc. 2N7002 N-Channel Enhancement-Mode Vertical DMOS FETs Features General Description
► Free from secondary breakdown The Supertex 2N7002 is an enhancement-mode (normally- ► Low power drive requirement off) transistor that utilizes a vertical DMOS structure ► Ease of paralleling and Supertex’s well-proven silicon-gate manufacturing ► Low C and fast switching speeds process. This combination produces a device with the ISS ► Excellent thermal stability power handling capabilities of bipolar transistors, and the ► Integral source-drain diode high input impedance and positive temperature coefficient ► High input impedance and high gain inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and
Applications
thermally-induced secondary breakdown. ► Motor controls ► Converters Supertex’s vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where ► Amplifiers very low threshold voltage, high breakdown voltage, high ► Switches input impedance, low input capacitance, and fast switching ► Power supply circuits speeds are desired. ► Drivers (relays, hammers, solenoids, lamps, memories, displays, bipolar transistors, etc.)
Ordering Information Product Summary Part Number Package Option Packing BV /BV R I DSX DGS DS(ON) D(ON) (V) (max) (min)
2N7002-G TO-236AB (SOT-23) 3000/Reel 60V 7.5Ω 500mA -G denotes a lead (Pb)-free / RoHS compliant package. Contact factory for Wafer / Die availablity. Devices in Wafer / Die form are lead (Pb)-free / RoHS compliant.
Pin Configuration Absolute Maximum Ratings DRAIN Parameter Value
Drain-to-source voltage BV DSS
SOURCE
Drain-to-gate voltage BVDGS Gate-to-source voltage ±30V
GATE
Operating and storage temperature -55°C to +150°C
TO-236AB (SOT-23)
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. Continuous operation of the device at the absolute rating level may affect device reliability. All
Product Marking
voltages are referenced to device ground.
702W
W = Code for week sealed = “Green” Packaging
Typical Thermal Characteristics
Package may or may not include the following marks: Si or
Package θja TO-236AB (SOT-23)
TO-236AB (SOT-23) 203OC/W * Mounted on FR4 board; 25mm x 25mm x 1.57mm Doc.# DSFP-2N7002
