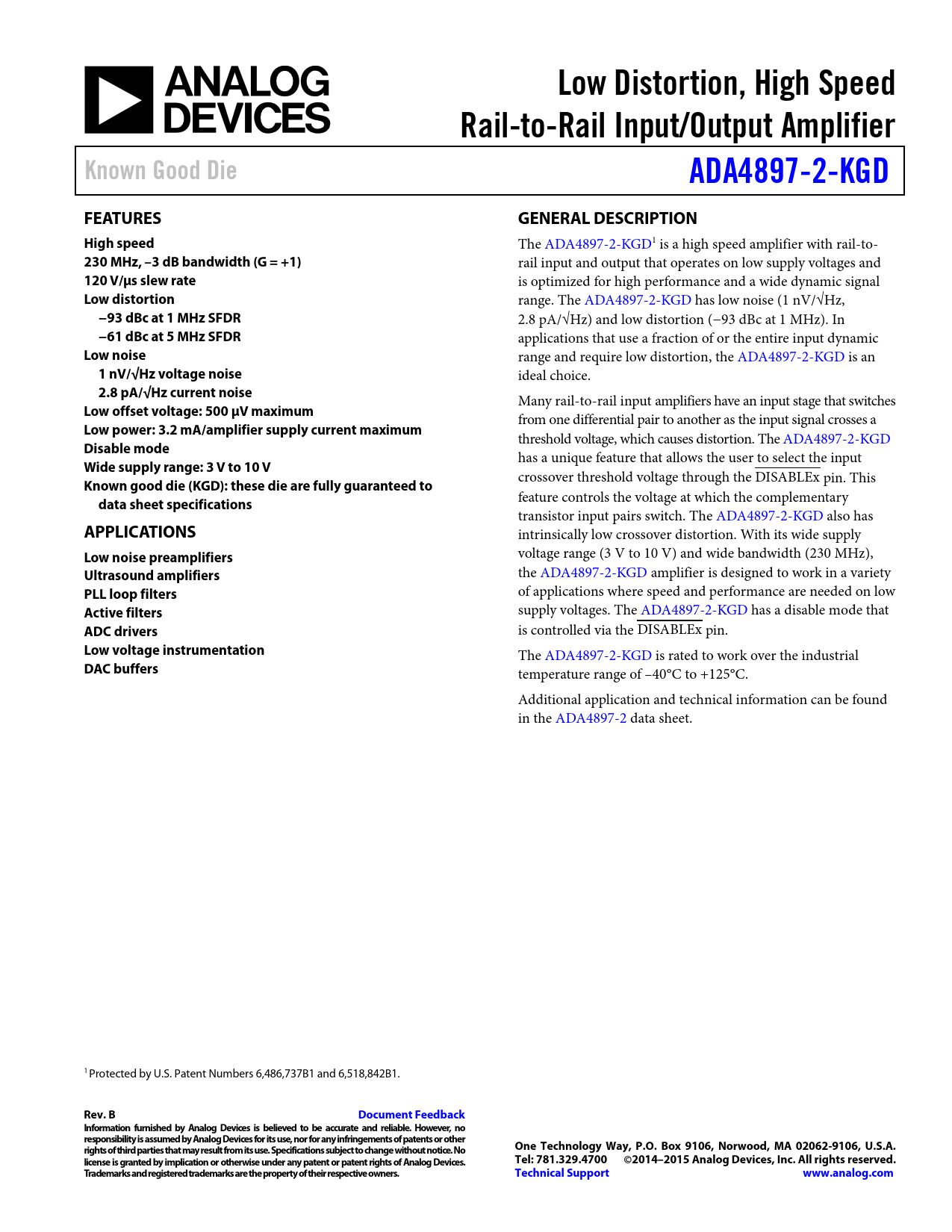

Datasheet ADA4897-2-KGD (Analog Devices)

Low Distortion, High Speed Rail-to-Rail Input/Output Amplifier Known Good Die ADA4897-2-KGD FEATURES GENERAL DESCRIPTION High speed
The ADA4897-2-KGD1 is a high speed amplifier with rail-to-
230 MHz, –3 dB bandwidth (G = +1)
rail input and output that operates on low supply voltages and
120 V/µs slew rate
is optimized for high performance and a wide dynamic signal
Low distortion
range. The ADA4897-2-KGD has low noise (1 nV/√Hz,
−93 dBc at 1 MHz SFDR
2.8 pA/√Hz) and low distortion (−93 dBc at 1 MHz). In
−61 dBc at 5 MHz SFDR
applications that use a fraction of or the entire input dynamic
Low noise
range and require low distortion, the ADA4897-2-KGD is an
1 nV/√Hz voltage noise
ideal choice.
2.8 pA/√Hz current noise
Many rail-to-rail input amplifiers have an input stage that switches
Low offset voltage: 500 µV maximum
from one differential pair to another as the input signal crosses a
Low power: 3.2 mA/amplifier supply current maximum
threshold voltage, which causes distortion. The ADA4897-2-KGD
Disable mode
has a unique feature that al ows the user to select the input
Wide supply range: 3 V to 10 V
crossover threshold voltage through the DISABLEx pin. This
Known good die (KGD): these die are fully guaranteed to data sheet specifications
feature controls the voltage at which the complementary transistor input pairs switch. The ADA4897-2-KGD also has
APPLICATIONS
intrinsically low crossover distortion. With its wide supply
Low noise preamplifiers
voltage range (3 V to 10 V) and wide bandwidth (230 MHz),
Ultrasound amplifiers
the ADA4897-2-KGD amplifier is designed to work in a variety
PLL loop filters
of applications where speed and performance are needed on low
Active filters
supply voltages. The ADA4897-2-KGD has a disable mode that
ADC drivers
is control ed via the DISABLEx pin.
Low voltage instrumentation
The ADA4897-2-KGD is rated to work over the industrial
DAC buffers
temperature range of –40°C to +125°C.

Additional application and technical information can be found in the ADA4897-2 data sheet. 1 Protected by U.S. Patent Numbers 6,486,737B1 and 6,518,842B1.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2014–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
