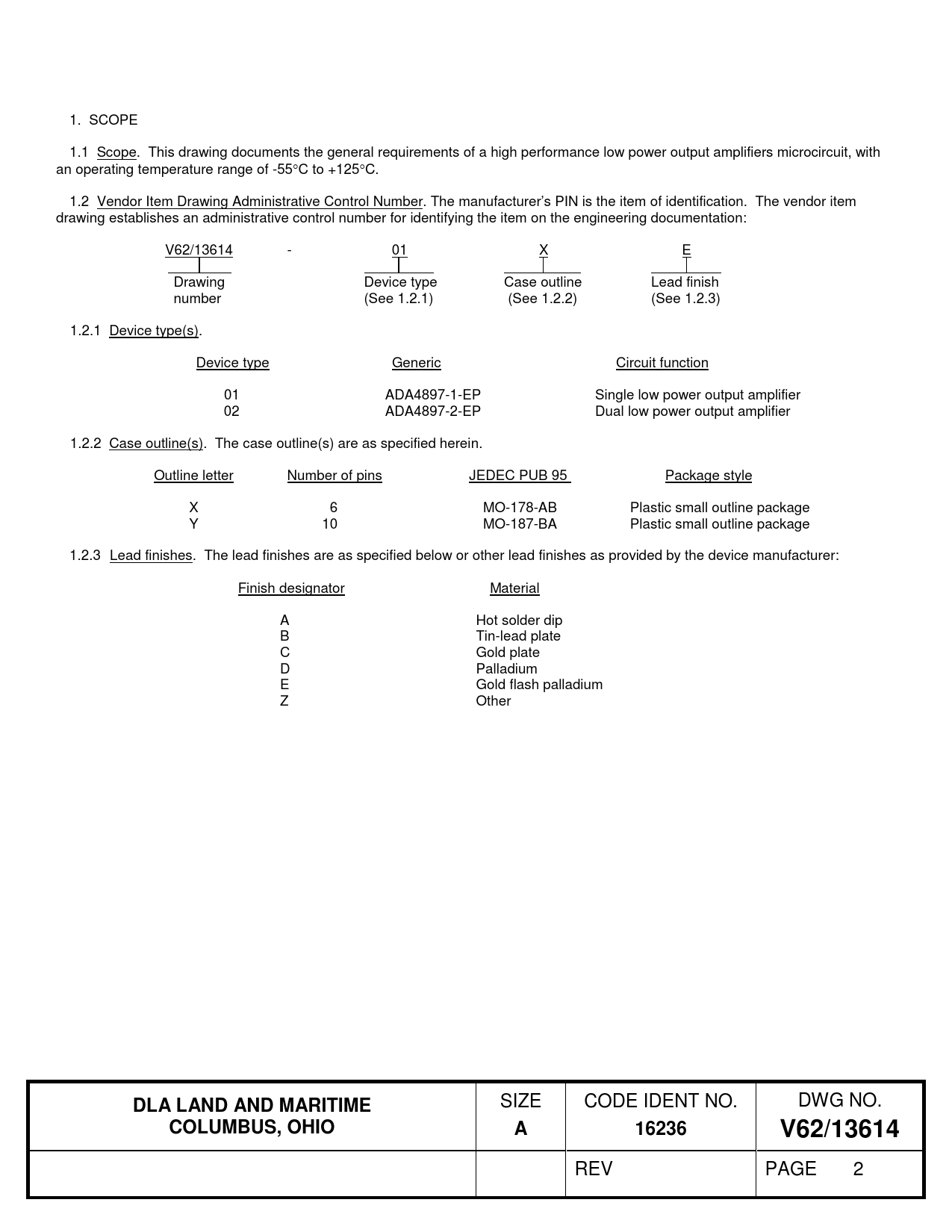

1. SCOPE

1.1 Scope. This drawing documents the general requirements of a high performance low power output amplifiers microcircuit, with an operating temperature range of -55°C to +125°C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/13614 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s). Device type Generic Circuit function 01 ADA4897-1-EP Single low power output amplifier 02 ADA4897-2-EP Dual low power output amplifier 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 6 MO-178-AB Plastic small outline package Y 10 MO-187-BA Plastic small outline package 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/13614
REV PAGE 2 Document Outline DESCRIPTION REV REV PMIC N/A DLA LAND AND MARITIME TITLE SIZE A V62/13614 REV
