Datasheet AD8306 (Analog Devices)

HerstellerAnalog Devices
Beschreibung5 MHz TO 400 MHz, 100 dB High Precision Limiting - Logarithmic Amplifier
Seiten / Seite25 / 1 — DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. …
Dateiformat / GrößePDF / 412 Kb
DokumentenspracheEnglisch

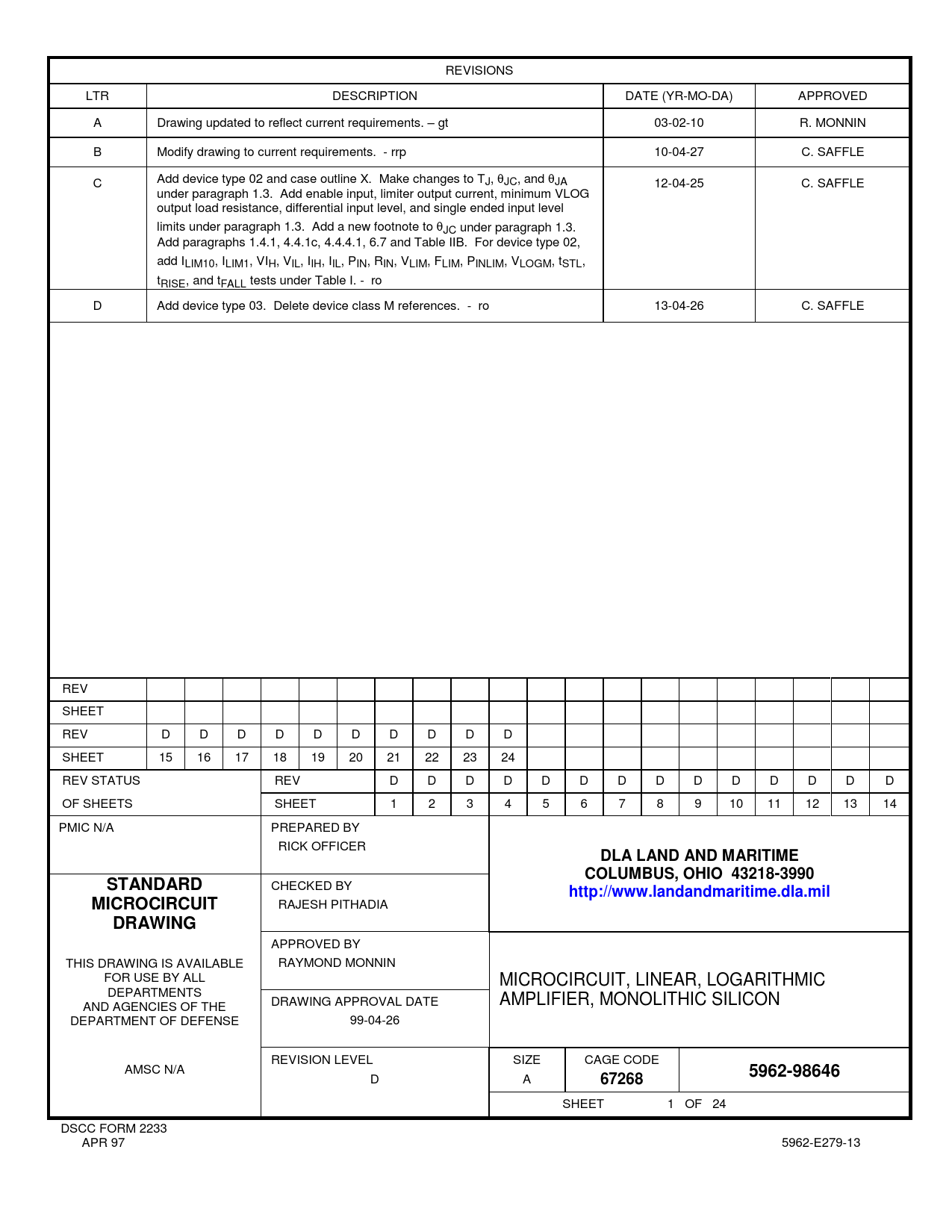

DLA LAND AND MARITIME. COLUMBUS, OHIO 43218-3990. STANDARD. http://www.landandmaritime.dla.mil. MICROCIRCUIT. DRAWING. 5962-98646

Datasheet AD8306 Analog Devices

Modelllinie für dieses Datenblatt

Textversion des Dokuments

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED A Drawing updated to reflect current requirements. – gt 03-02-10 R. MONNIN B Modify drawing to current requirements. - rrp 10-04-27 C. SAFFLE C Add device type 02 and case outline X. Make changes to TJ, θJC, and θJA 12-04-25 C. SAFFLE under paragraph 1.3. Add enable input, limiter output current, minimum VLOG output load resistance, differential input level, and single ended input level limits under paragraph 1.3. Add a new footnote to θJC under paragraph 1.3. Add paragraphs 1.4.1, 4.4.1c, 4.4.4.1, 6.7 and Table IIB. For device type 02, add ILIM10, ILIM1, VIH, VIL, IIH, IIL, PIN, RIN, VLIM, FLIM, PINLIM, VLOGM, tSTL, tRISE, and tFALL tests under Table I. - ro D Add device type 03. Delete device class M references. - ro 13-04-26 C. SAFFLE REV SHEET REV D D D D D D D D D D SHEET 15 16 17 18 19 20 21 22 23 24 REV STATUS REV D D D D D D D D D D D D D D OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PMIC N/A PREPARED BY RICK OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
RAJESH PITHADIA
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE RAYMOND MONNIN FOR USE BY ALL MICROCIRCUIT, LINEAR, LOGARITHMIC DEPARTMENTS DRAWING APPROVAL DATE AMPLIFIER, MONOLITHIC SILICON AND AGENCIES OF THE DEPARTMENT OF DEFENSE 99-04-26 REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-98646
D A
67268
SHEET 1 OF 24 DSCC FORM 2233 APR 97 5962-E279-13 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
