Datasheet AD8318 (Analog Devices) - 3

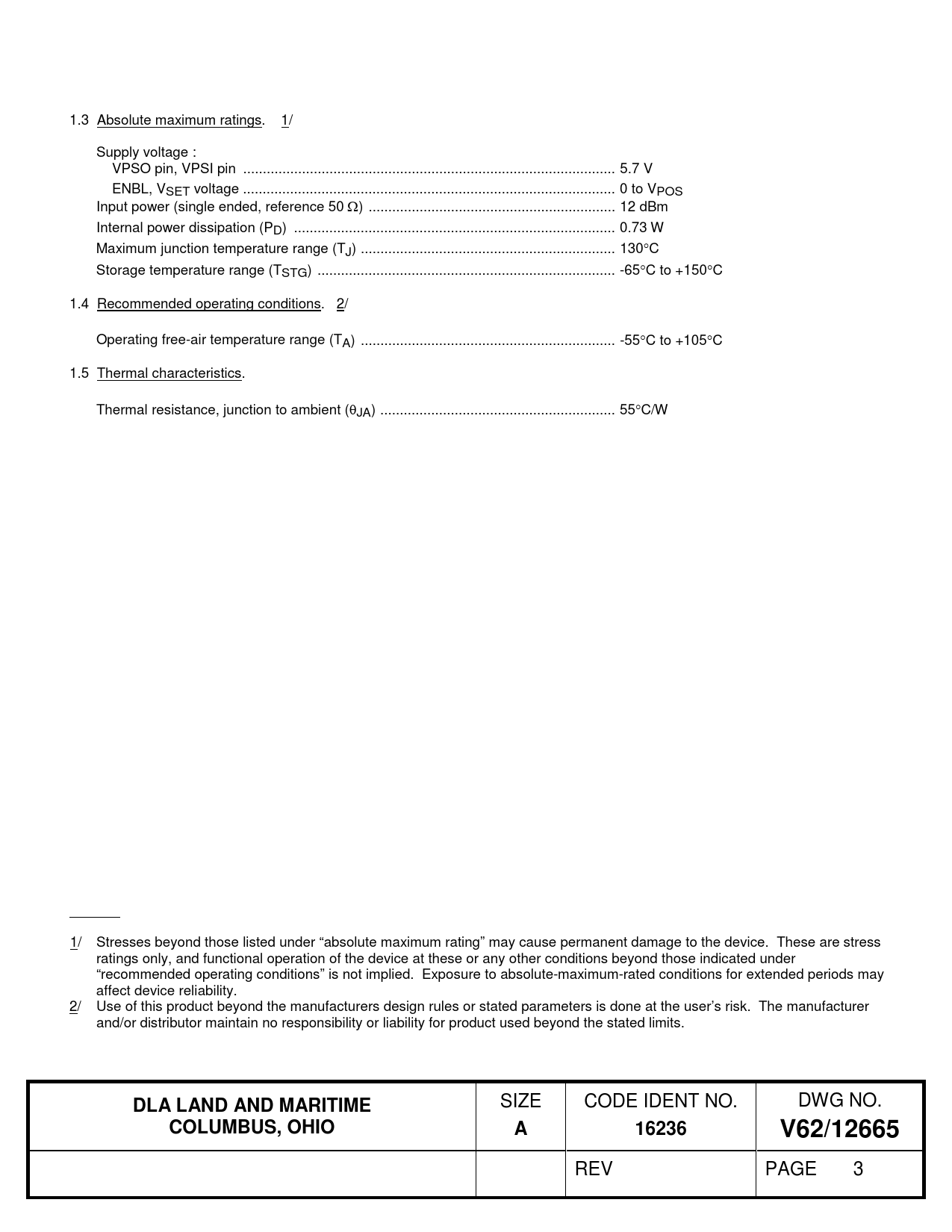

1.3 Absolute maximum ratings. 1/ Supply voltage : VPSO pin, VPSI pin ... 5.7 V ENBL, VSET voltage ... 0 to VPOS Input power (single ended, reference 50 Ω) ... 12 dBm Internal power dissipation (PD) .. 0.73 W Maximum junction temperature range (TJ) ... 130°C Storage temperature range (TSTG) .. -65°C to +150°C 1.4 Recommended operating conditions. 2/ Operating free-air temperature range (TA) ... -55°C to +105°C 1.5 Thermal characteristics. Thermal resistance, junction to ambient (θJA) .. 55°C/W 1/ Stresses beyond those listed under “absolute maximum rating” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 2/ Use of this product beyond the manufacturers design rules or stated parameters is done at the user’s risk. The manufacturer and/or distributor maintain no responsibility or liability for product used beyond the stated limits.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12665
REV PAGE 3 Document Outline DESCRIPTION REV REV PMIC N/A DLA LAND AND MARITIME TITLE SIZE A V62/12665 REV
