Datasheet AMP04 (Analog Devices)

HerstellerAnalog Devices
BeschreibungPrecision Single Supply Instrumentation Amplifier
Seiten / Seite18 / 1 — Precision Single Supply. Instrumentation Amplifier. AMP04. FEATURES. …
RevisionC
Dateiformat / GrößePDF / 557 Kb
DokumentenspracheEnglisch

Precision Single Supply. Instrumentation Amplifier. AMP04. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Single Supply Operation. 100k

Datasheet AMP04 Analog Devices, Revision: C

Textversion des Dokuments

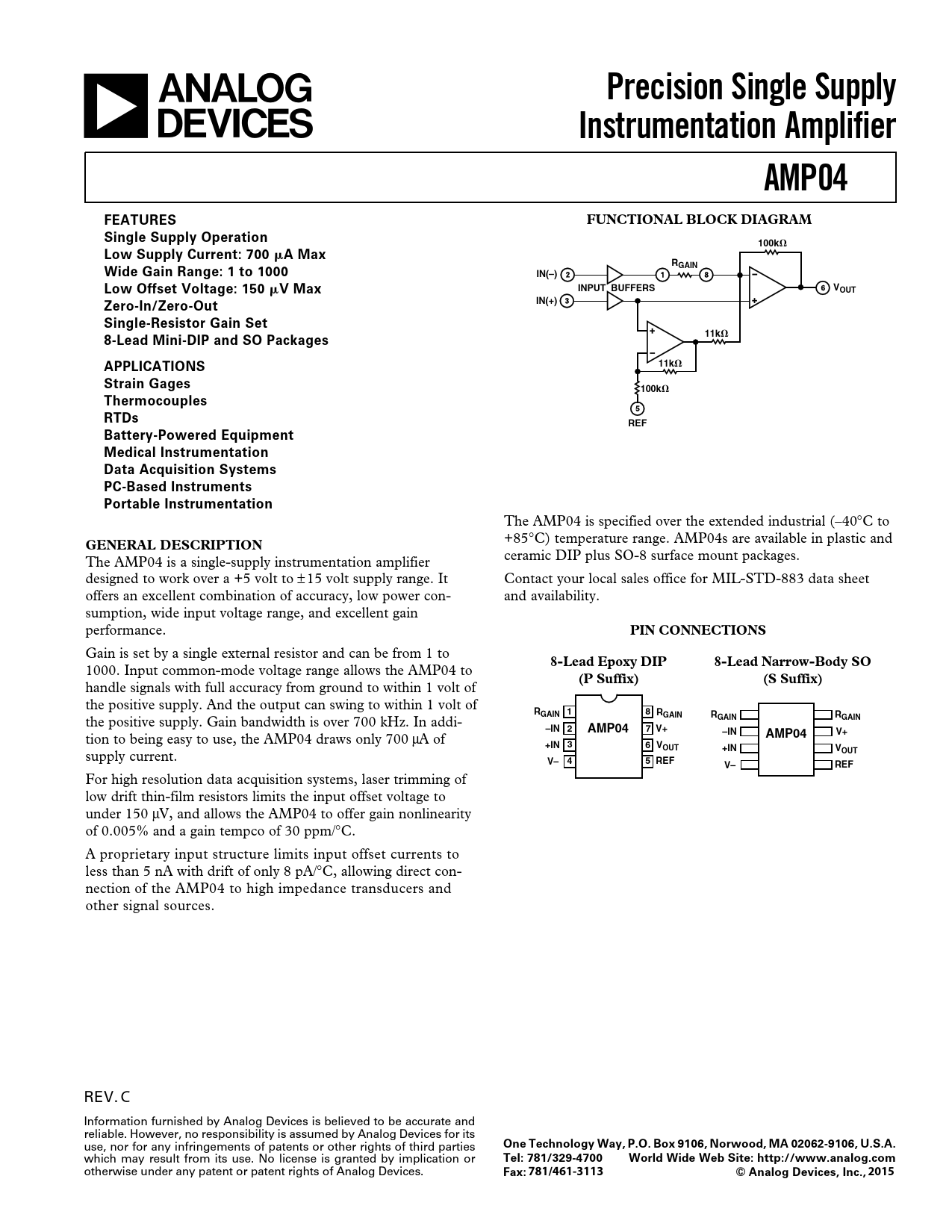

a
Precision Single Supply Instrumentation Amplifier AMP04 FEATURES FUNCTIONAL BLOCK DIAGRAM Single Supply Operation 100k Low Supply Current: 700 A Max RGAIN Wide Gain Range: 1 to 1000 IN(–) INPUT BUFFERS V Low Offset Voltage: 150 OUT V Max IN(+) Zero-In/Zero-Out Single-Resistor Gain Set 11k 8-Lead Mini-DIP and SO Packages 11k APPLICATIONS Strain Gages 100k Thermocouples RTDs REF Battery-Powered Equipment Medical Instrumentation Data Acquisition Systems PC-Based Instruments Portable Instrumentation
The AMP04 is specified over the extended industrial (–40°C to +85°C) temperature range. AMP04s are available in plastic and
GENERAL DESCRIPTION
The AMP04 is a single-supply instrumentation amplifier ceramic DIP plus SO-8 surface mount packages. designed to work over a +5 volt to ± 15 volt supply range. It Contact your local sales office for MIL-STD-883 data sheet offers an excellent combination of accuracy, low power con- and availability. sumption, wide input voltage range, and excellent gain performance.
PIN CONNECTIONS
Gain is set by a single external resistor and can be from 1 to
8-Lead Epoxy DIP 8-Lead Narrow-Body SO
1000. Input common-mode voltage range allows the AMP04 to
(P Suffix) (S Suffix)
handle signals with full accuracy from ground to within 1 volt of the positive supply. And the output can swing to within 1 volt of
R 1 8 GAIN RGAIN R R
the positive supply. Gain bandwidth is over 700 kHz. In addi-
GAIN GAIN –IN 2 AMP04 7 V+ –IN
tion to being easy to use, the AMP04 draws only 700 µA of
AMP04 V+ +IN 3 6 VOUT +IN V
supply current.
OUT V– 4 5 REF V– REF
For high resolution data acquisition systems, laser trimming of low drift thin-film resistors limits the input offset voltage to under 150 µV, and allows the AMP04 to offer gain nonlinearity of 0.005% and a gain tempco of 30 ppm/°C. A proprietary input structure limits input offset currents to less than 5 nA with drift of only 8 pA/°C, allowing direct con- nection of the AMP04 to high impedance transducers and other signal sources. REV. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
which may result from its use. No license is granted by implication or
Tel: 781/329-4700 World Wide Web Site: http://www.analog.com
otherwise under any patent or patent rights of Analog Devices.
Fax: 781/461-3113 © Analog Devices, Inc., 2015
