Datasheet AD5382 (Analog Devices)

HerstellerAnalog Devices
Beschreibung32-Channel, 3 V/5 V, Single-Supply, 14-Bit denseDAC
Seiten / Seite41 / 1 — 32-Channel, 3 V/5 V, Single-Supply,. 14-Bit dense. DAC. Data Sheet. …
RevisionD
Dateiformat / GrößePDF / 930 Kb
DokumentenspracheEnglisch

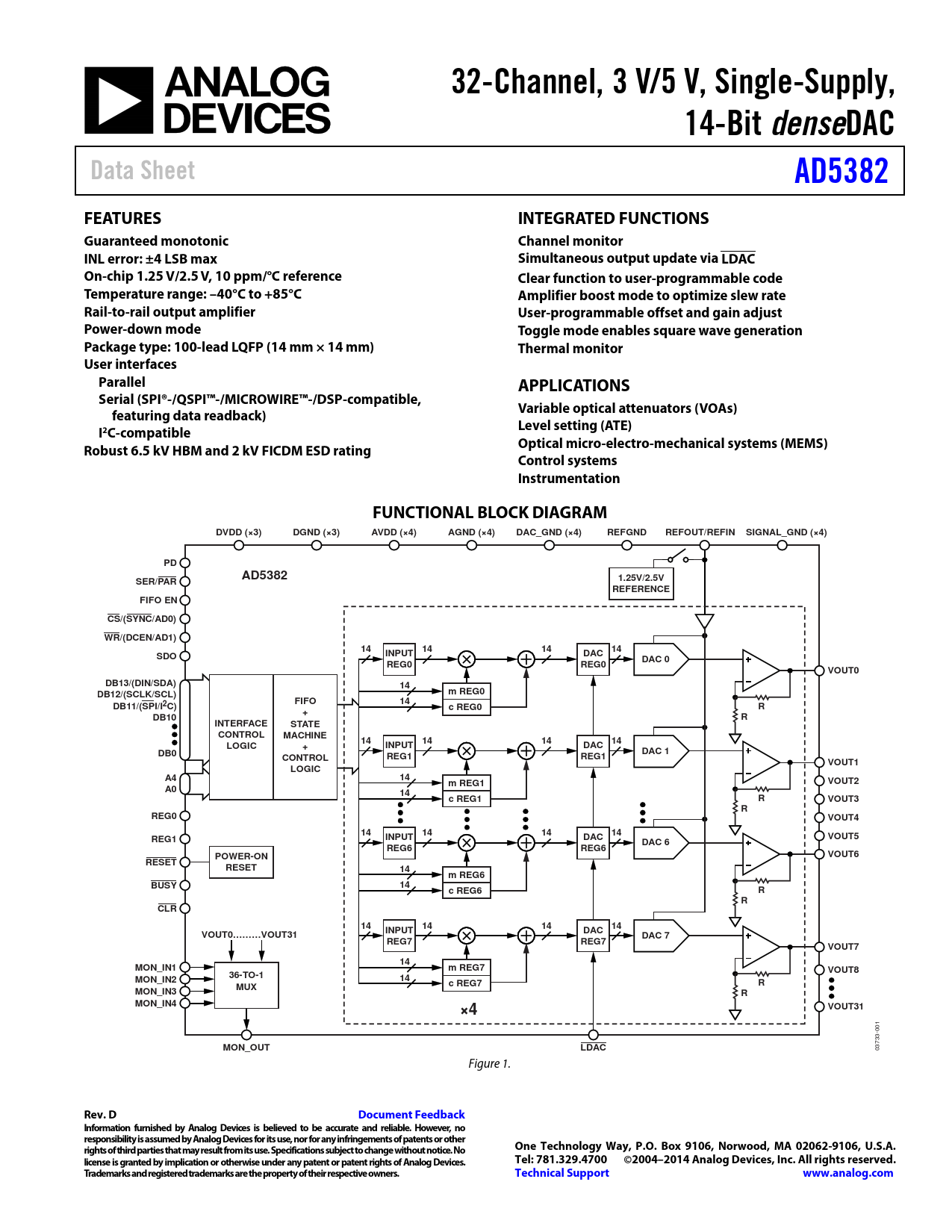

32-Channel, 3 V/5 V, Single-Supply,. 14-Bit dense. DAC. Data Sheet. AD5382. FEATURES. INTEGRATED FUNCTIONS. Guaranteed monotonic

Datasheet AD5382 Analog Devices, Revision: D

Modelllinie für dieses Datenblatt

Textversion des Dokuments

32-Channel, 3 V/5 V, Single-Supply, 14-Bit dense DAC Data Sheet AD5382 FEATURES INTEGRATED FUNCTIONS Guaranteed monotonic Channel monitor INL error: ±4 LSB max Simultaneous output update via LDAC On-chip 1.25 V/2.5 V, 10 ppm/°C reference Clear function to user-programmable code Temperature range: –40°C to +85°C Amplifier boost mode to optimize slew rate Rail-to-rail output amplifier User-programmable offset and gain adjust Power-down mode Toggle mode enables square wave generation Package type: 100-lead LQFP (14 mm × 14 mm) Thermal monitor User interfaces Parallel APPLICATIONS Serial (SPI®-/QSPI™-/MICROWIRE™-/DSP-compatible, featuring data readback) Variable optical attenuators (VOAs) I Level setting (ATE) 2C-compatible Robust 6.5 kV HBM and 2 kV FICDM ESD rating Optical micro-electro-mechanical systems (MEMS) Control systems Instrumentation FUNCTIONAL BLOCK DIAGRAM DVDD (×3) DGND (×3) AVDD (×4) AGND (×4) DAC_GND (×4) REFGND REFOUT/REFIN SIGNAL_GND (×4) PD AD5382 1.25V/2.5V SER/PAR REFERENCE FIFO EN CS/(SYNC/AD0) WR/(DCEN/AD1) 14 14 14 14 INPUT DAC SDO DAC 0 REG0 REG0 VOUT0 DB13/(DIN/SDA) 14 m REG0 DB12/(SCLK/SCL) FIFO 14 DB11/(SPI/I2C) c REG0 R + DB10 R INTERFACE STATE CONTROL MACHINE 14 14 14 14 LOGIC + INPUT DAC DAC 1 DB0 CONTROL REG1 REG1 VOUT1 LOGIC A4 14 VOUT2 m REG1 A0 14 c REG1 R VOUT3 R REG0 VOUT4 14 14 14 14 INPUT DAC VOUT5 REG1 DAC 6 REG6 REG6 POWER-ON VOUT6 RESET RESET 14 m REG6 BUSY 14 c REG6 R R CLR 14 14 14 14 INPUT DAC VOUT0………VOUT31 DAC 7 REG7 REG7 VOUT7 14 MON_IN1 m REG7 VOUT8 36-TO-1 14 MON_IN2 c REG7 MUX R MON_IN3 R MON_IN4 ×4 VOUT31
001
MON_OUT LDAC
03733- Figure 1.
