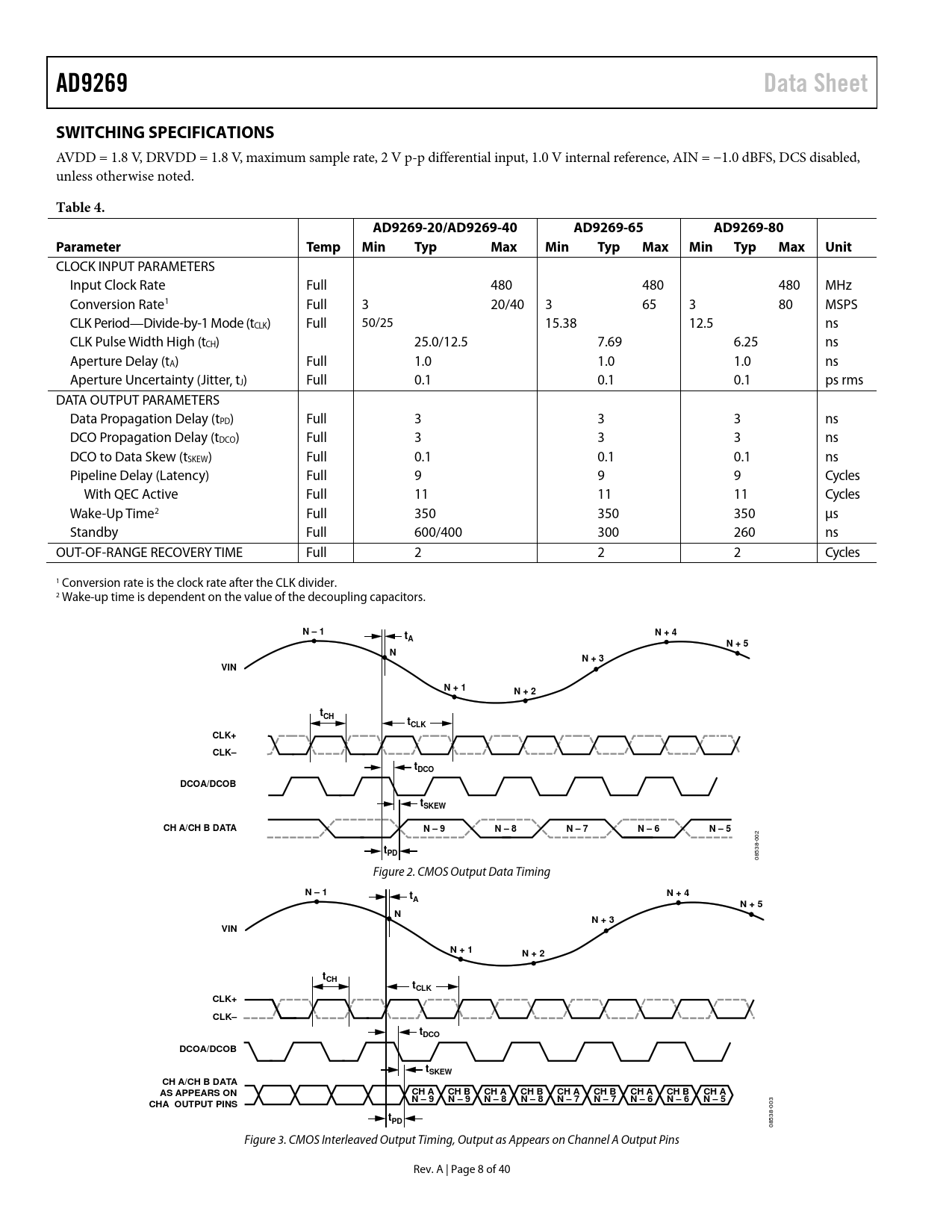

AD9269 Data Sheet SWITCHING SPECIFICATIONS
AVDD = 1.8 V, DRVDD = 1.8 V, maximum sample rate, 2 V p-p differential input, 1.0 V internal reference, AIN = −1.0 dBFS, DCS disabled, unless otherwise noted.
Table 4. AD9269-20/AD9269-40 AD9269-65 AD9269-80 Parameter Temp Min Typ Max Min Typ Max Min Typ Ma Unit x
CLOCK INPUT PARAMETERS Input Clock Rate Full 480 480 480 MHz Conversion Rate1 Full 3 20/40 3 65 3 80 MSPS CLK Period—Divide-by-1 Mode (tCLK) Full 50/25 15.38 12.5 ns CLK Pulse Width High (tCH) 25.0/12.5 7.69 6.25 ns Aperture Delay (tA) Full 1.0 1.0 1.0 ns Aperture Uncertainty (Jitter, tJ) Full 0.1 0.1 0.1 ps rms DATA OUTPUT PARAMETERS Data Propagation Delay (tPD) Full 3 3 3 ns DCO Propagation Delay (tDCO) Full 3 3 3 ns DCO to Data Skew (tSKEW) Full 0.1 0.1 0.1 ns Pipeline Delay (Latency) Full 9 9 9 Cycles With QEC Active Full 11 11 11 Cycles Wake-Up Time2 Full 350 350 350 μs Standby Full 600/400 300 260 ns OUT-OF-RANGE RECOVERY TIME Full 2 2 2 Cycles 1 Conversion rate is the clock rate after the CLK divider. 2 Wake-up time is dependent on the value of the decoupling capacitors.
N – 1 N + 4 tA N + 5 N N + 3 VIN N + 1 N + 2 tCH tCLK CLK+ CLK– tDCO DCOA/DCOB tSKEW CH A/CH B DATA N – 9 N – 8 N – 7 N – 6 N – 5
002 8-
tPD
853 0 Figure 2. CMOS Output Data Timing
